Aztech DSL8800GR User Manual

User Manual
Page 8 of 52
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a
network diagram to help identify your network devices and plan out how to
connect these devices.
Separate network diagrams are provided for both ADSL and Fibre subscribers.

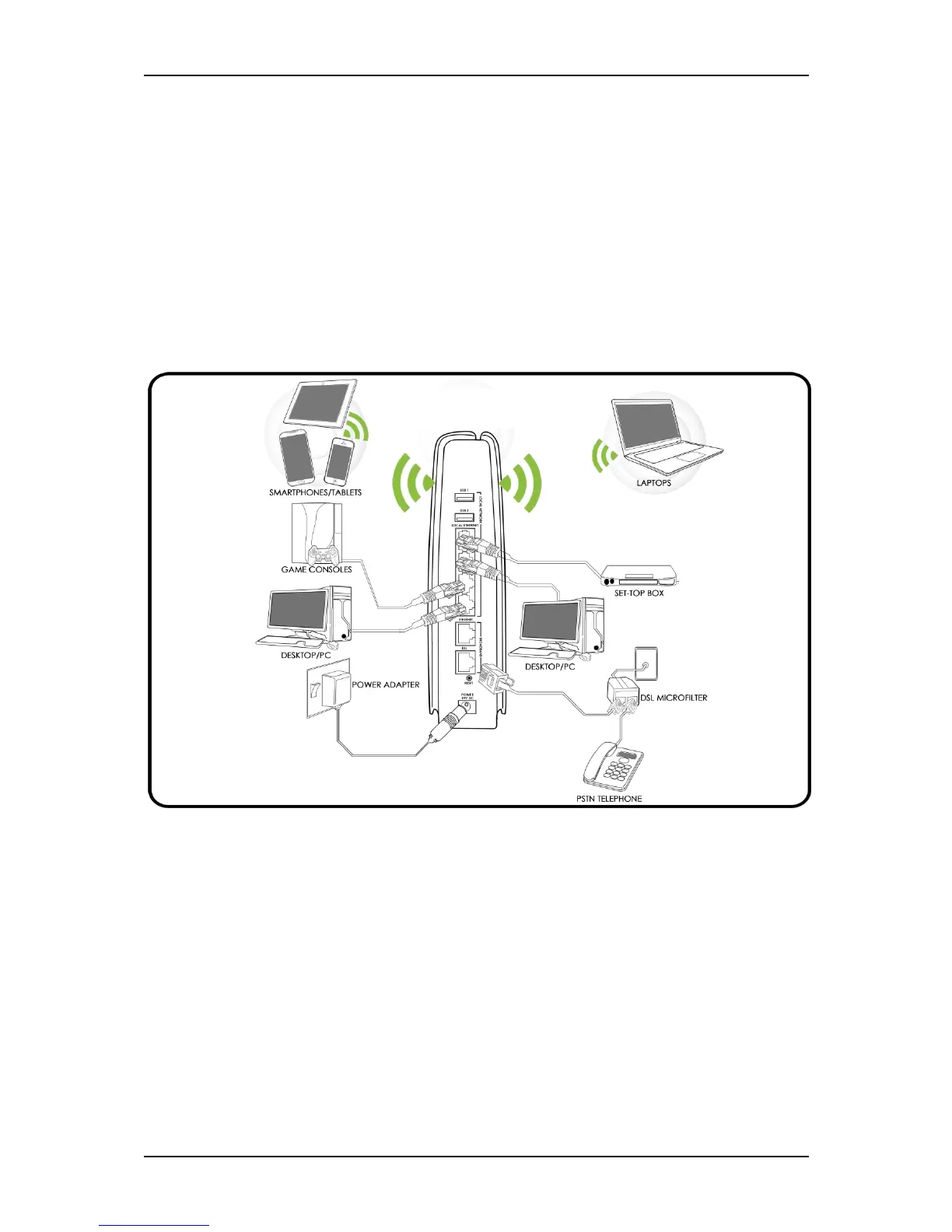

For ADSL Subscribers:
Each port in the router can be used for different connections. For example:
 Ethernet 1 – Mom’s Computer
 Ethernet 2 – Game Console
 Ethernet 3 – Dad’s Computer
 Ethernet 4 – Set Top Box
 DSL/LINE - DSL Microfilter
*Ethernet port 4 is primarily
reserved for Set Top Box

Aztech DSL8800GR Specifications

General

Brand	Aztech
Model	DSL8800GR
Category	Wireless Router
Language	English
