Overview | 9
1 2 5 63
4

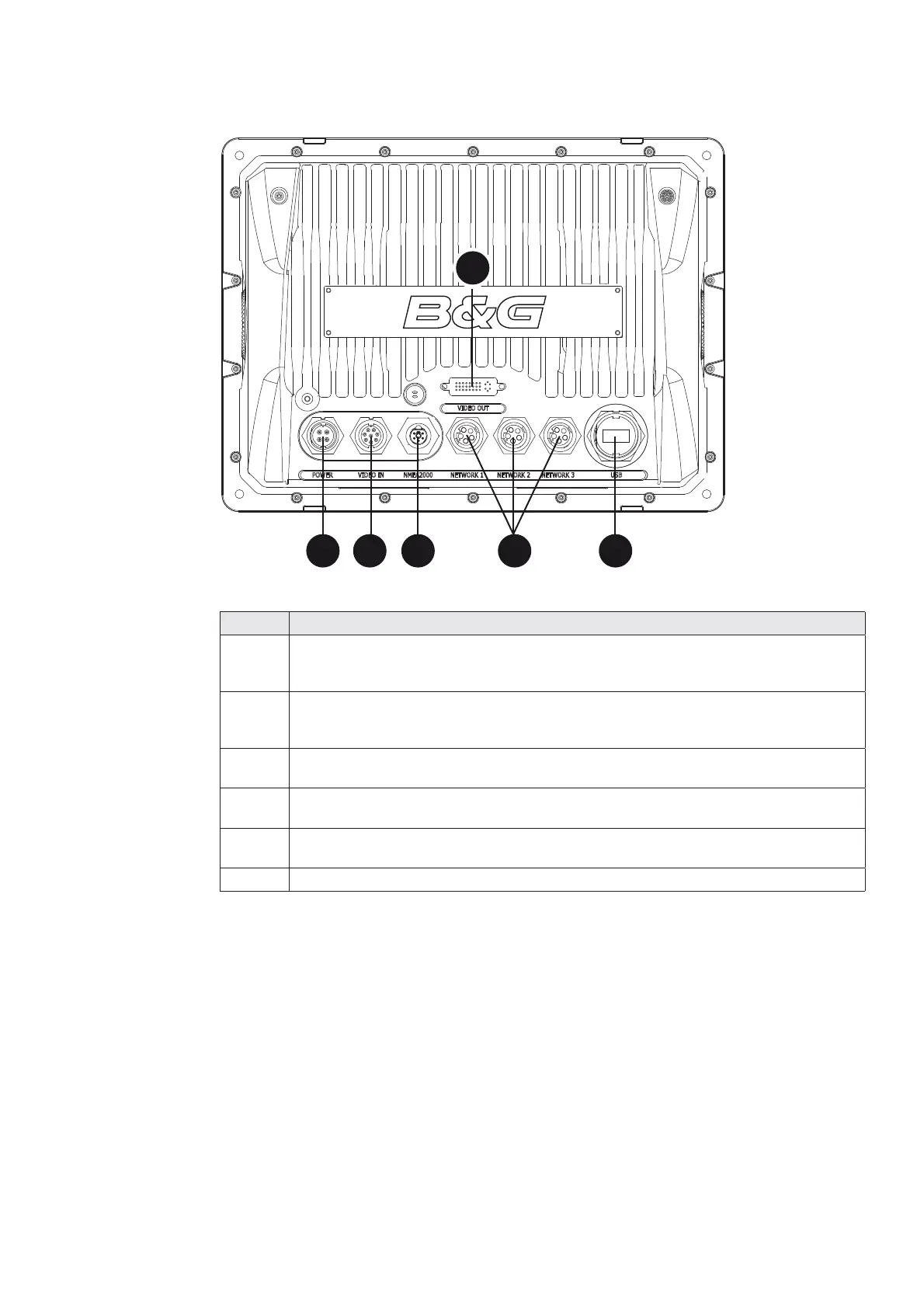

Key Description
1
Power. For power input 12 or 24 V DC input (see power section), Power
control (see Power Control section) and external alarm (see External
Alarm section.
2
Video In. Supplied cable provides two composite video inputs (see Video In
section) and one RS422 port (NMEA0183 TX, RX) see NMEA0183 Wiring
section.
3
SimNet. Connects Zeus display to a SimNet or NMEA2000 network (see
SimNet section).
4
Video Out. Connect to an external monitor via optional DVI cable (see Video
Out section).
5
Network 1, 2 and 3. Three Ethernet network ports for connecting to other
Zeus displays and Network modules. (see Ethernet section)
6 USB. Used for H-Link Communications
