12 | Installing the Display
Bracket Mount
An alternative to flush mounting the Z8 or Z12 is to bracket mount the unit. This method
has the advantage that the display can easily be removed when not in use. The display
may be tilted for best possible viewing angle when bracket mounted.

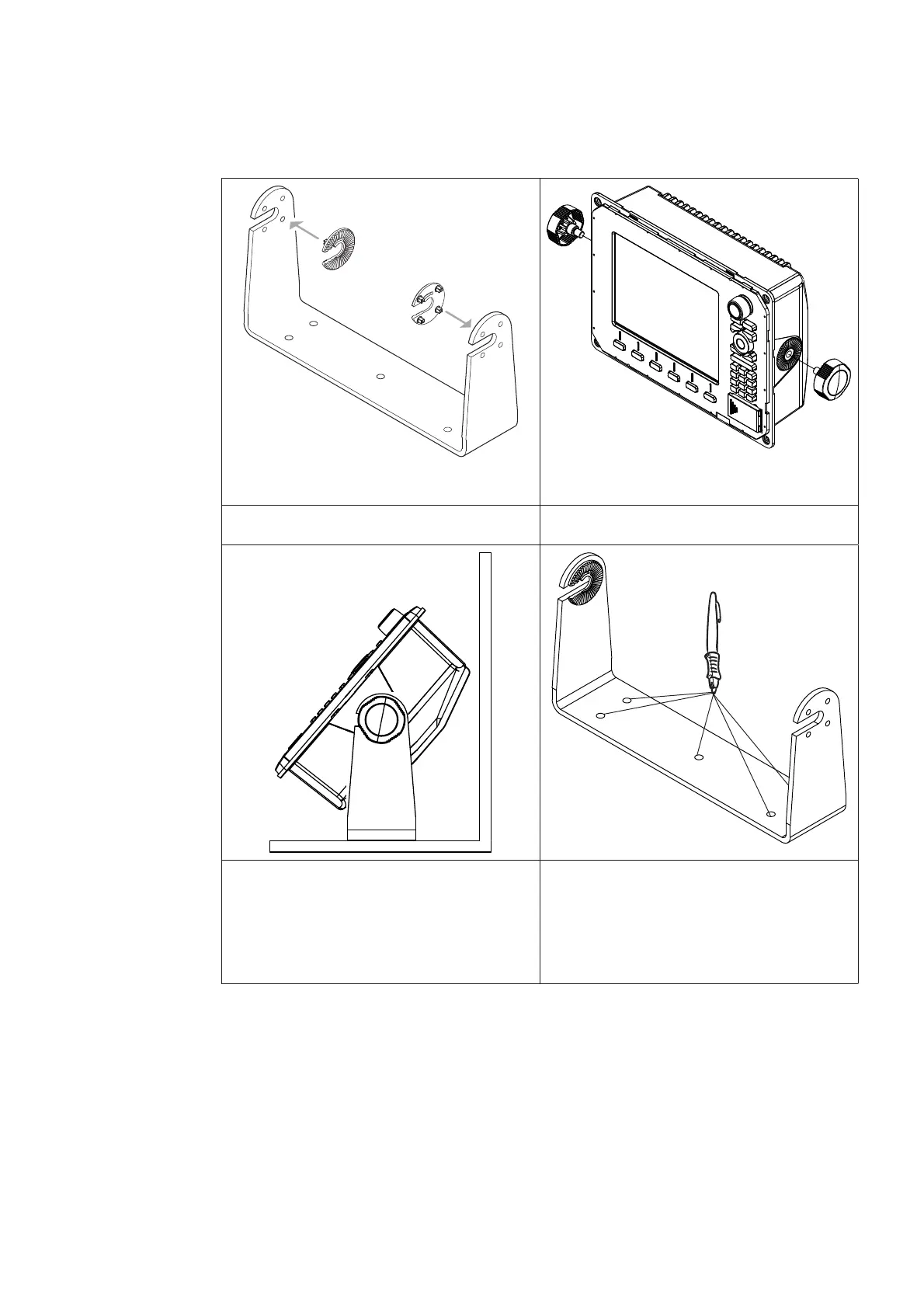

Press the ratchet washers into the 1
bracket.
Loosely screw securing knobs to the 2
Display unit.
Temporarily mount the display 3
unit in the bracket and make sure
the display can be adjusted to the
correct angle without interfering
with the surrounding. Allow space
for cables attached to the rear of
the unit.
Remove the display unit and use the 4
mounting bracket as a template to
mark the fi ve positions of the screw
holes.
