Wiring the Zeus Display | 35

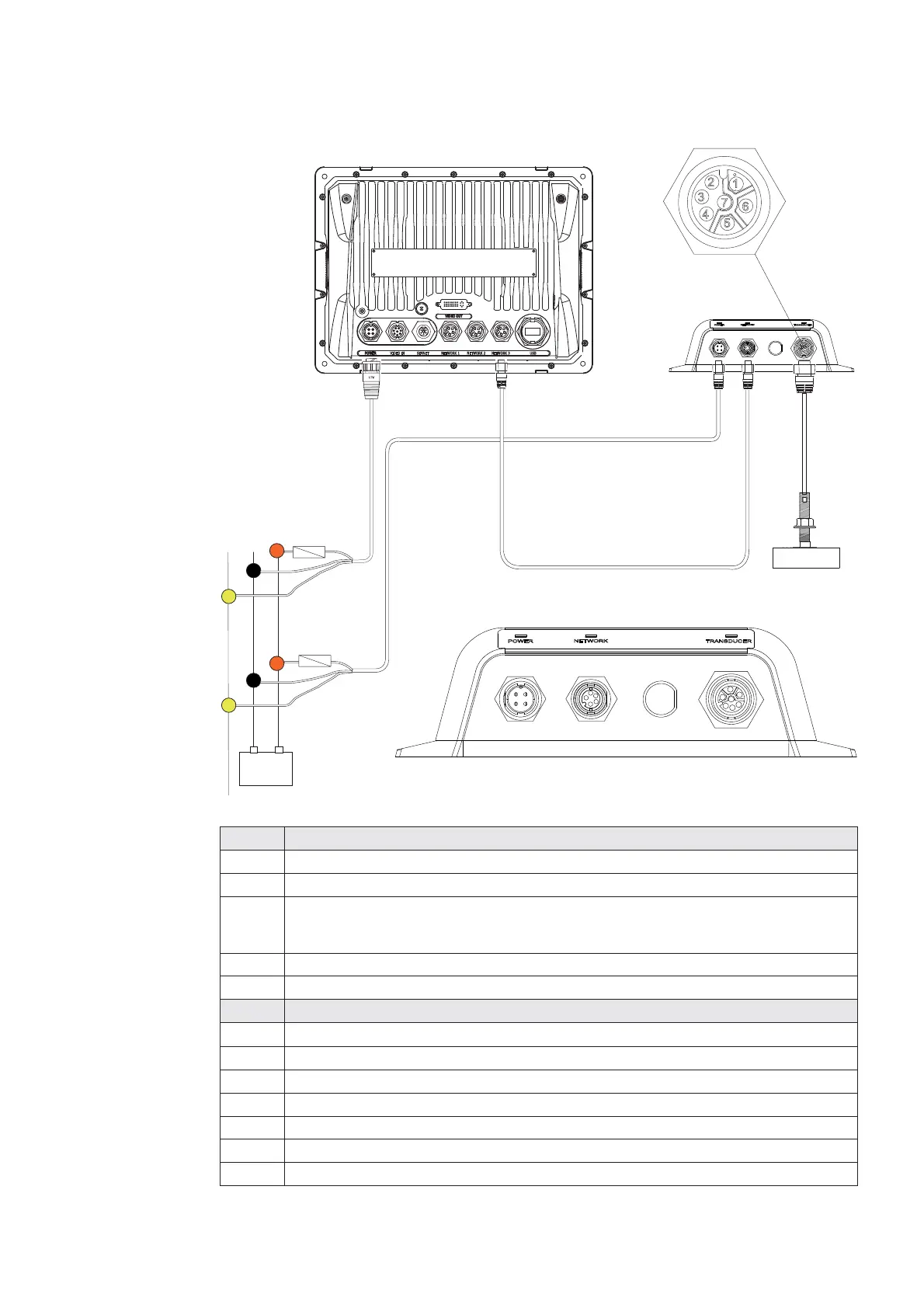

Connecting BSM1 Broadband Echosounder
+
_
A
B
B
C
D
E
F
1
2
3
4
5
7
6
Key Description
A Zeus Display
B BSM-1 Broadband Echosounder module
C
Ethernet cable yellow 5 pin see Ethernet cables yellow for more cable
length options. Cable can be connected directly to Zeus or via a Network
Expansion Port see Ethernet.
D 12 or 24 V DC
E Transducer: See compatible transducer list.
F Transducer Connector
Pin 1
Depth +
Pin 2 Speed
Pin 3 Speed power
Pin 4 Temp
Pin 5 Depth -
Pin 6 Shield
Pin 7 Temp / speed ground
