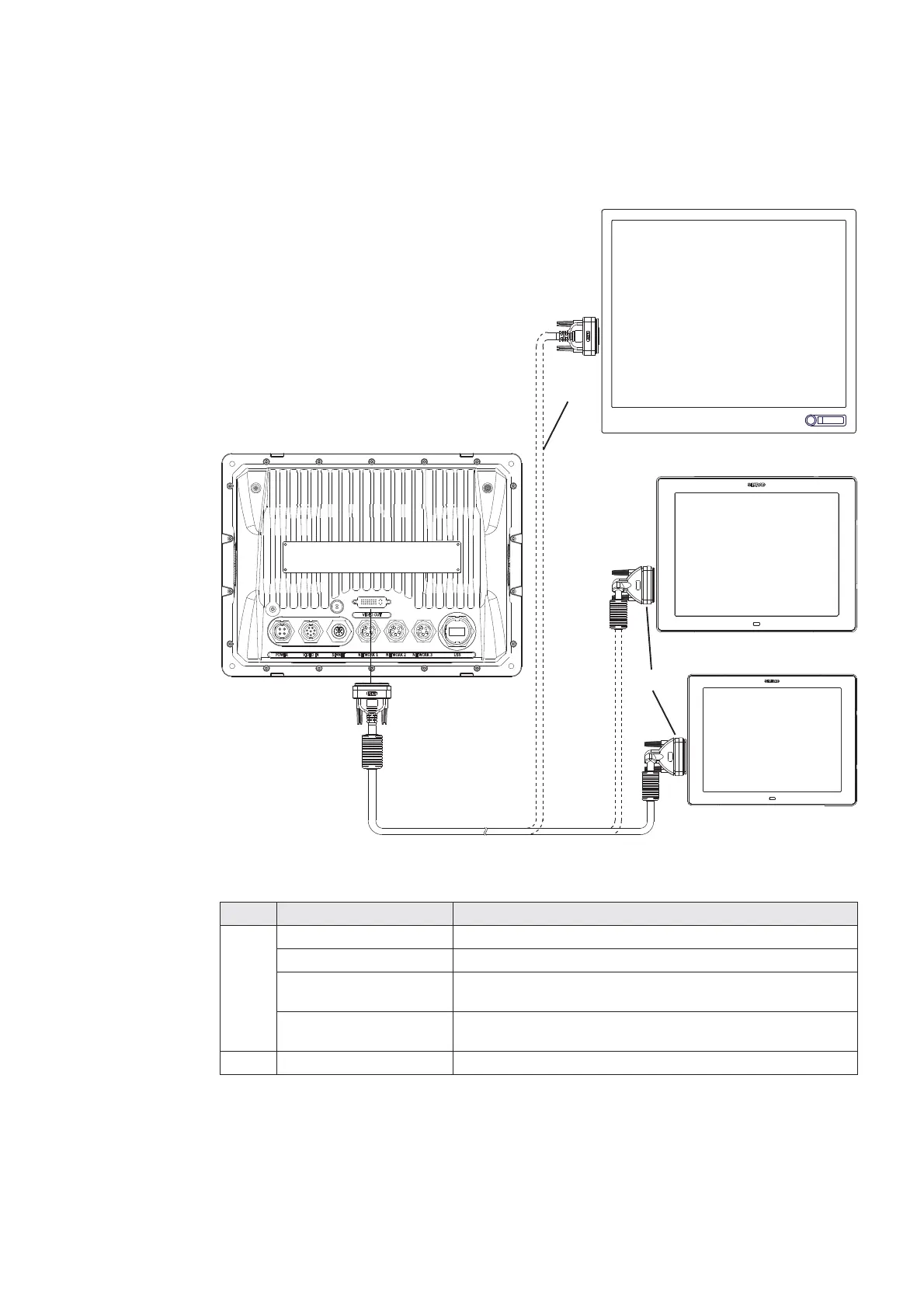

32 | Wiring the Zeus Display
Video Out
The Zeus display has a DVI-I Video connector. Connect a second display to replicate
what is on the screen of the Zeus display.
A DI10 display can only interface to Z8 and DI15 only to Z12 due to fixed resolutions.
The MO19 or other scalable monitor or TV can be connected to either Z8 or Z12
VIDEO OUT
DI15
From Z12
only
(1024x768)
DI10
From Z8
only
(800x600)
A
B
MO19
Or third party monitor
From Z8 or Z12
(scales to resoloution)
Video-Out cable part numbers (Optional)
Key Part Number Description
A AA010152 3 m (9.8 ft) Video cable DVI-HD26 for DI10/DI15
AA010154 10 m (33 ft) Video cable DVI-HD26 for DI10/DI15
AA010162 5 m (16.5 ft) HDMI small connector option for DI10 or
DI15 displays
AA010164 15 m (50 ft) HDMI small connector option for DI10 or
DI15 displays
B AA010157 5 m DVI -DVI video cable for MO19 monitor
