Installing the Display | 11
Cut out shaded
area
Panel Mount
212 mm (8.34”)
285 mm (11.20)
265 mm (10.40”)
CLEARANCE HOLE TO SUIT M4 MACHINE SCREW
OR DRILL PILOT HOLE TO SUIT SELF TAPPING SCREW
5 mm (0.20”)
192 mm (7.55)
192 mm (7.55”)
265 mm (10.40”)
PRODUCT OUTLINE
25 mm (1.00”)
CUTOUT
Check dimensions before cutting

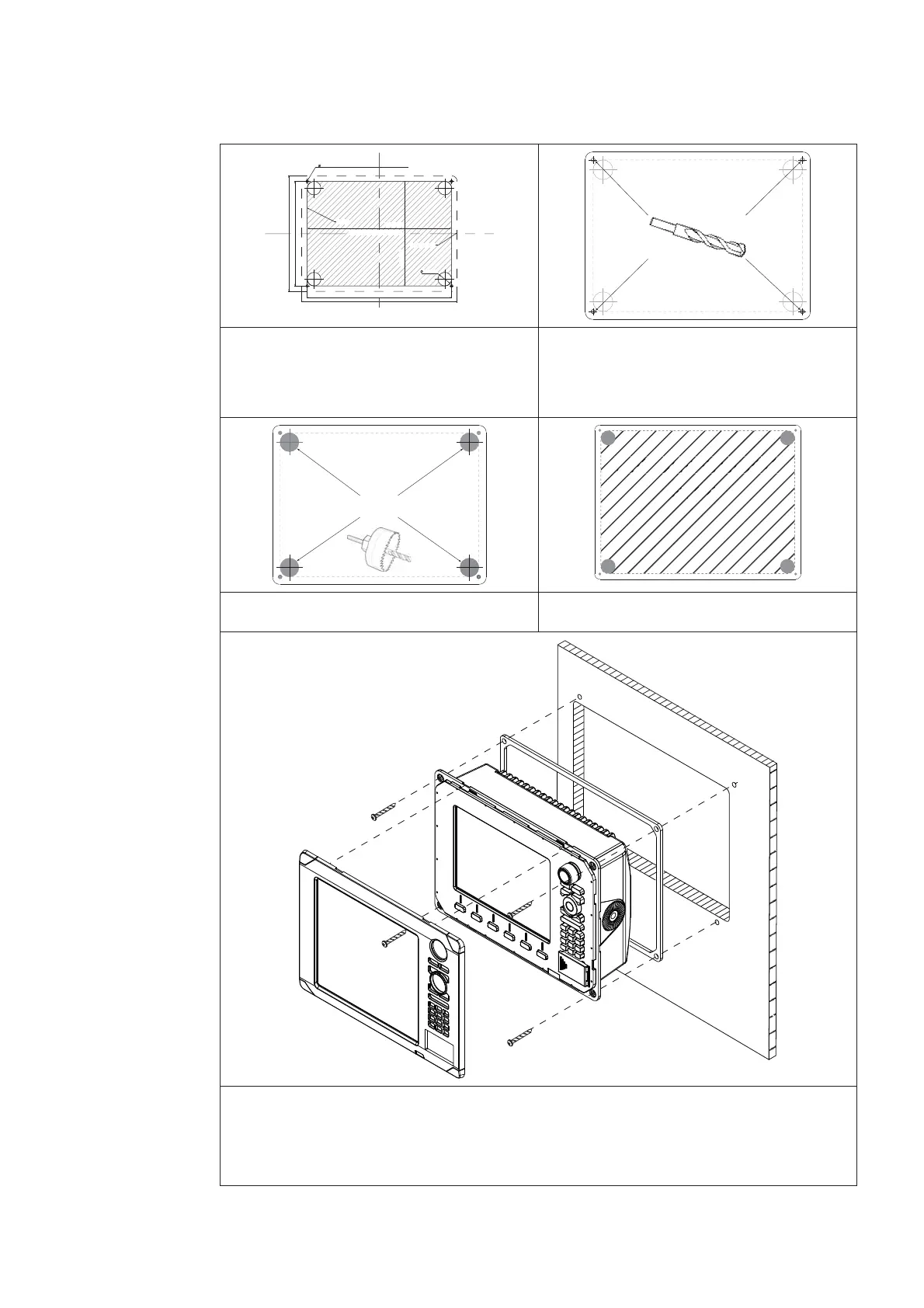

Attach the fl ush mounting template 1
to the selected mounting position
using adhesive tape.
Drill pilot holes for the four hole saw 2
cuts and four self tapping screws
used to secure the display. If using
M4 machine screws use a 5 mm
(0.20 ”) drill bit.
A
Use a 25mm (1 “) hole saw to cut 3
the four corner radius
Cut along the dotted line and 4
remove the shaded area.
Peel backing off the gasket and apply to the surface. 5
Connect all cables to the rear of the unit before placing the unit into the console. 6
Secure the display to the surface7
To fi nish off the installation fi rmly clip the front bezel in place8
