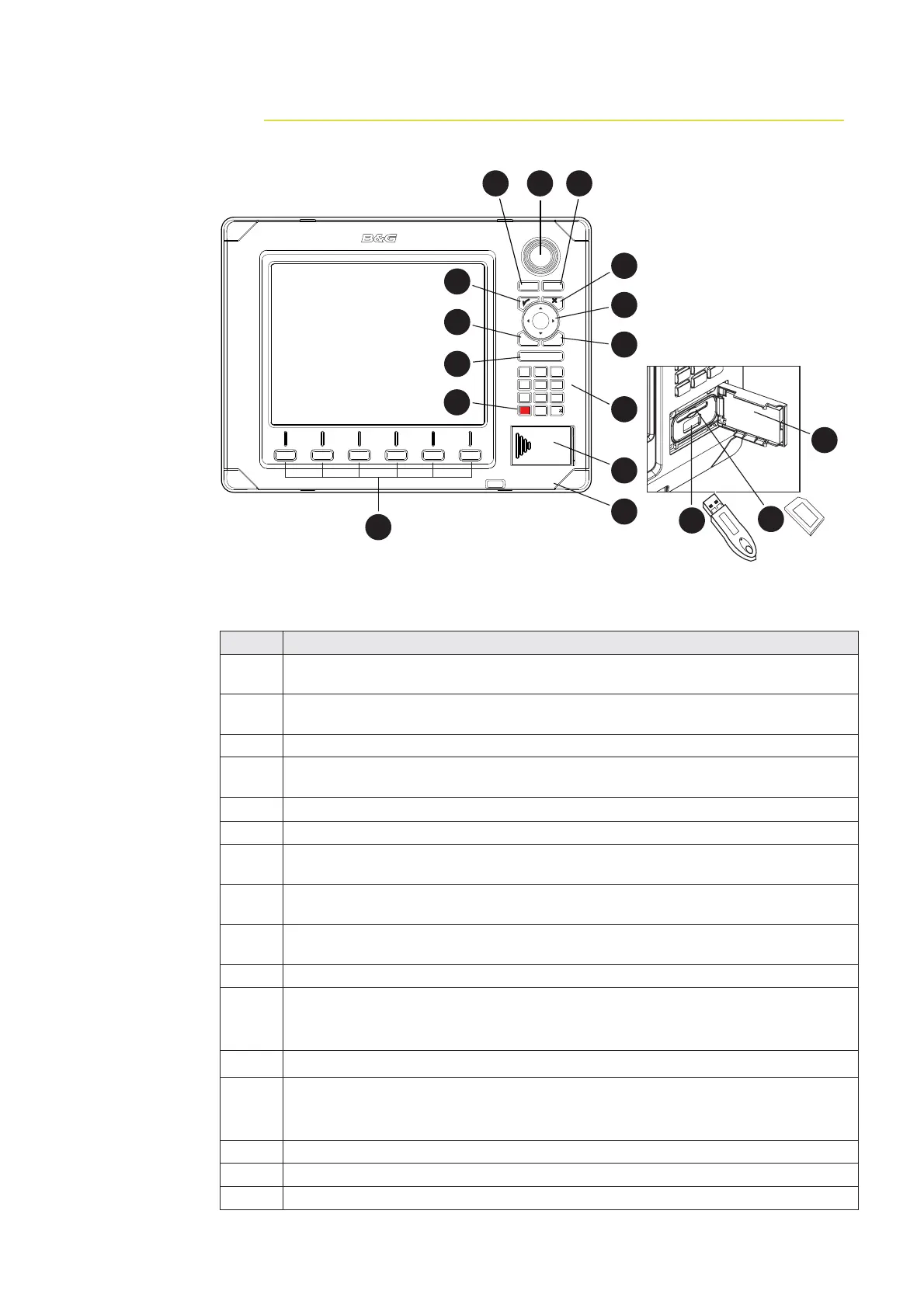

8 | Overview
Overview 4.
ECHORADARCHART NAV INFO PAGES
MENU
PLOT
GO TO
MARK
VESSEL
WIN
IN
MOB
ABC DEF
123
JKLGHI MNO
456
TUV
PQRS
WXYZ
7
STBY
AUTO
PWR
8
0
9
OUT
1
2 4
6
7
9
11
5
8
10
13
13
14
15
16
12
3
Key Description
1
Direct Access Keys (DAK). Provide direct access to a page. Repeated presses
of each DAK cycles through several different pages that relate to the DAK
2
PLOT/MARK key. A short press activates the Plot menu, a long press positions
a waypoint at the vessel position
3 Rotary knob. The function of the knob is depending on active context
4
GOTO/VESSEL key. A short press activates the Goto menu, a long press
centers the chart to vessel position
5
3 key — Activates/confi rms current selection
6 X key cancels changes and returns to previous menu level
7
Cursor keypad used to move the cursor on the display, and to maneuver in the
menu system
8
MENU key. Used to display the context menu for the active panel/overlay, and
for selecting options in edit mode. . 2 x MENU for system settings menu
9
WIN key, used on multiple panels pages. A short press toggles between the
panels, a long press expands active panel to a full page panel and back again
10 Zoom buttons for radar, echosounder and chart pages
11
Alpha numeric keypad used for entering numbers and text in dialog boxes.
A long press on the “1” key will position a Man Over Board (MOB) waypoint at
the vessel’s current position
12 STBY AUTO - Future use
13
Media port door. Press and slide to the right to open.
Media can be used for optional Navionics chart data, software updates,
transfer of user data and system backup
14 SD /MMC media card slot.
15 USB port
16 Removable bezel
