Wiring the Zeus Display | 31
Video In
Connect up to two composite video cameras to each display unit using the supplied Video
/ Data cable. This connects to the VIDEO IN port on the rear of the display. Video inputs
are only displayed locally and are not distributed to other displays. Only one video input
can be viewed at a time. Video inputs can be cycled.

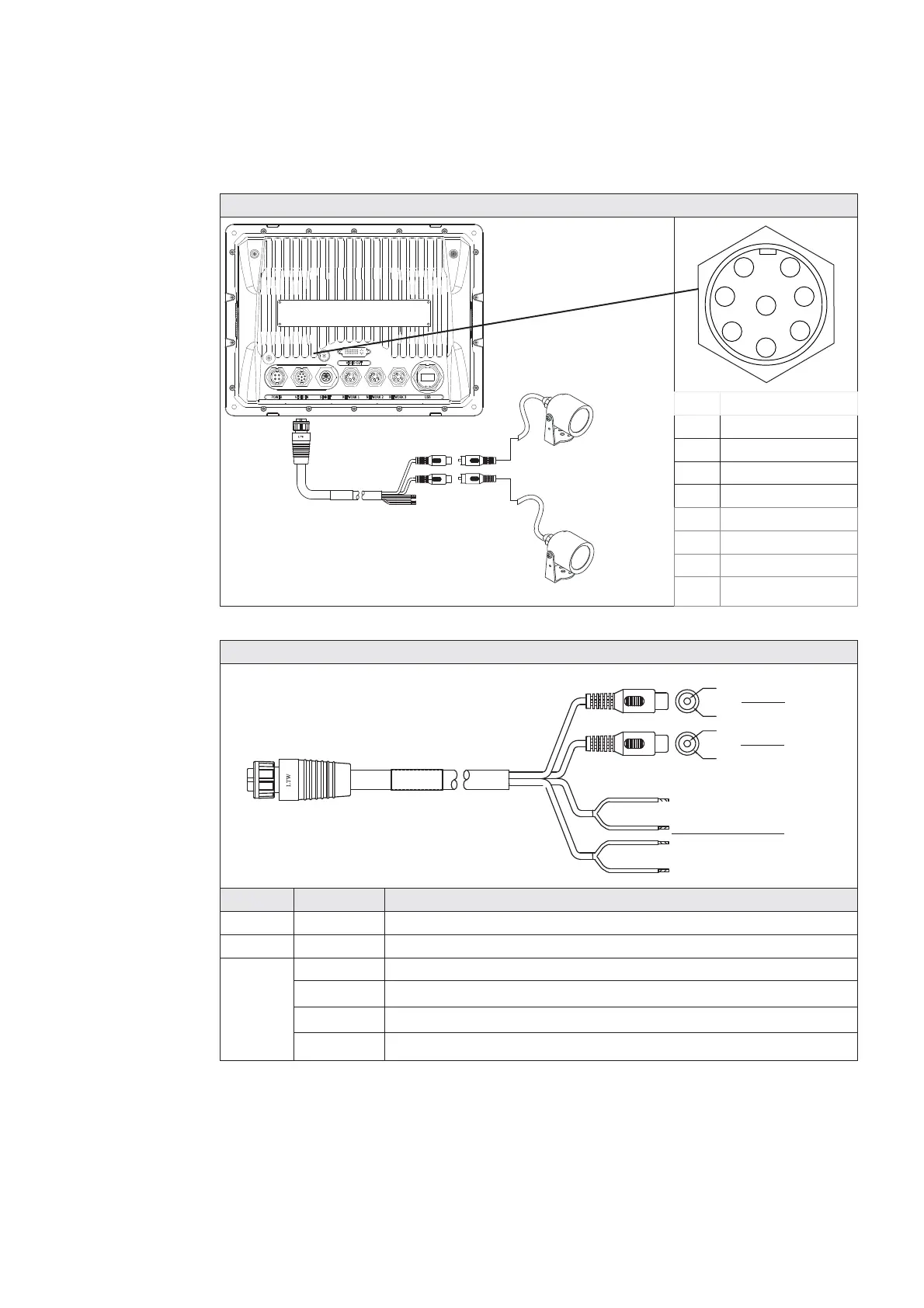

Video In Connector
VIDEO 1
VIDEO 2
VIDEO IN
17
6
5
4
3
2
8
Pin Function
1 Video 1 Ground
2 Video 1 (+)
3 Video 2 Ground
4 Video 2 (+)
5 RS422 TX -
6 RS422 TX +
7 RS422 RX -
8 Rs422 RX +
Video In / Data Cable (000-00129-001)
A
B
C
+
+
-
-
Key Color Description
A Red Video in port 1
B Green Video in port 2
C
Orange RS422 RX -
Green RS422 RX +
Yellow RS422 TX +
Blue RS422 TX -
