Bacharach HI FLOW Sampler User Manual

Operation Hi Flow Sampler
Instruction 0055-9017
8
3.3 Sampling Hose & Attachment Connections
Connect the sampling hose to the instrument’s leak-gas inlet by
clamping the hose to the inlet as shown in Figure 3-2. Also connect the
background gas sampling hose to the unit’s BACKGROUND inlet.

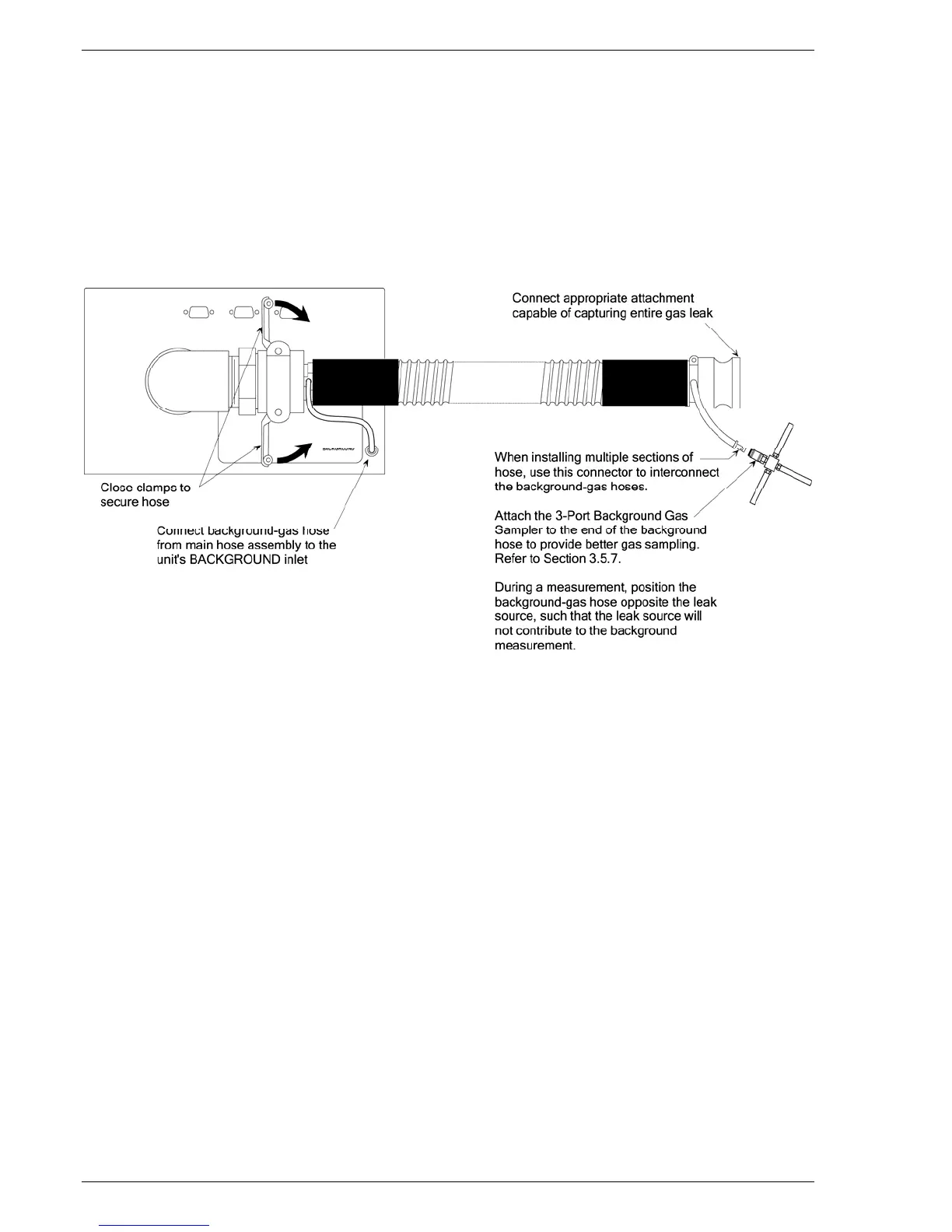

Figure 3-2. Hose and Attachment Connections
The standard sampling hose is 6 foot long. If a longer length is needed,
the optional 12 foot hose (P/N 0055-0287) can be ordered, or additional
sections of hose can be added by simply clamping them together along
with connecting together the background-gas hose.
Choose an attachment (refer to Section 3.5 Attachments) that will capture
the entire leak and attach it to the end of the hose.
