CHAPTER 3. OVERVIEW
3.1. General
The MZ-RD displays comprehensive information about the gas monitor network status and
enables complete programming control of all system operations.

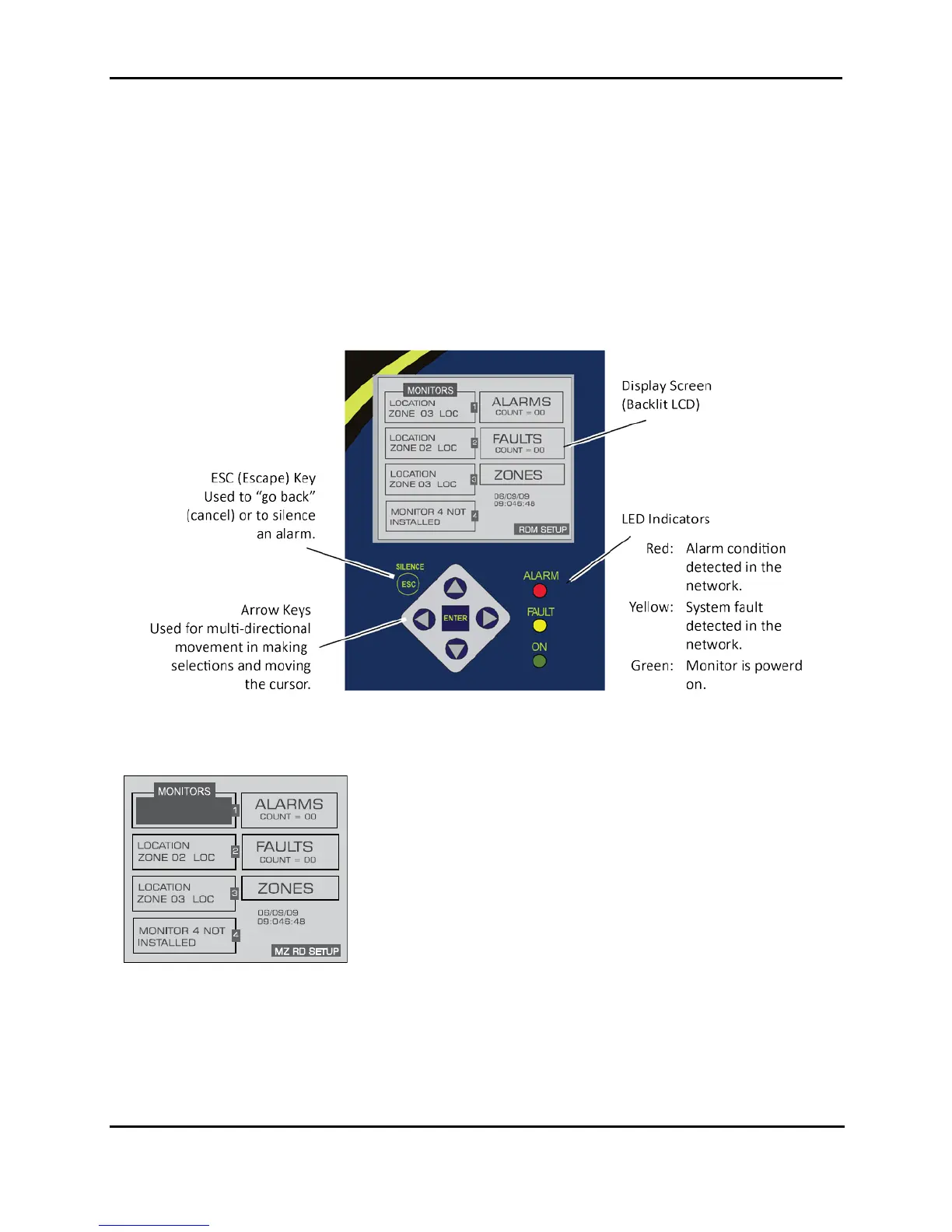

When first powered up, a splash screen appears indicating the firmware revision number. After a
brief moment the System Screen is displayed.
After the System screen is displayed, press the ENTER key.
The Monitor 1 location block on the screen will highlight and
begin to flash.
With Monitor 1 selected,
1. Press ENTER to access other screens that contain
information and setup criteria for Monitor 1.
2. Use the Arrow keys to make data entry selections on each
screen.
3. Press the ENTER key to accept the entries or use ESC to
cancel and return to the previous screen.
4. When programming is completed, use the ESC key to return to the System screen.
To access Monitors 2, 3 or 4, use the down Arrow key. Access information for these monitors in
the same manner as described above for Monitor 1.
The System Screen
LOCATION
ZONE 01 LOC
