MZ-RD – Multi-Zone Remote Display
26 Instruction 3015-5157
4.6.3. Alarm Detail Screen
To further investigate an alarm, select the alarm on the Alarm Summary screen, then press
ENTER to access the Alarm Detail Screen.

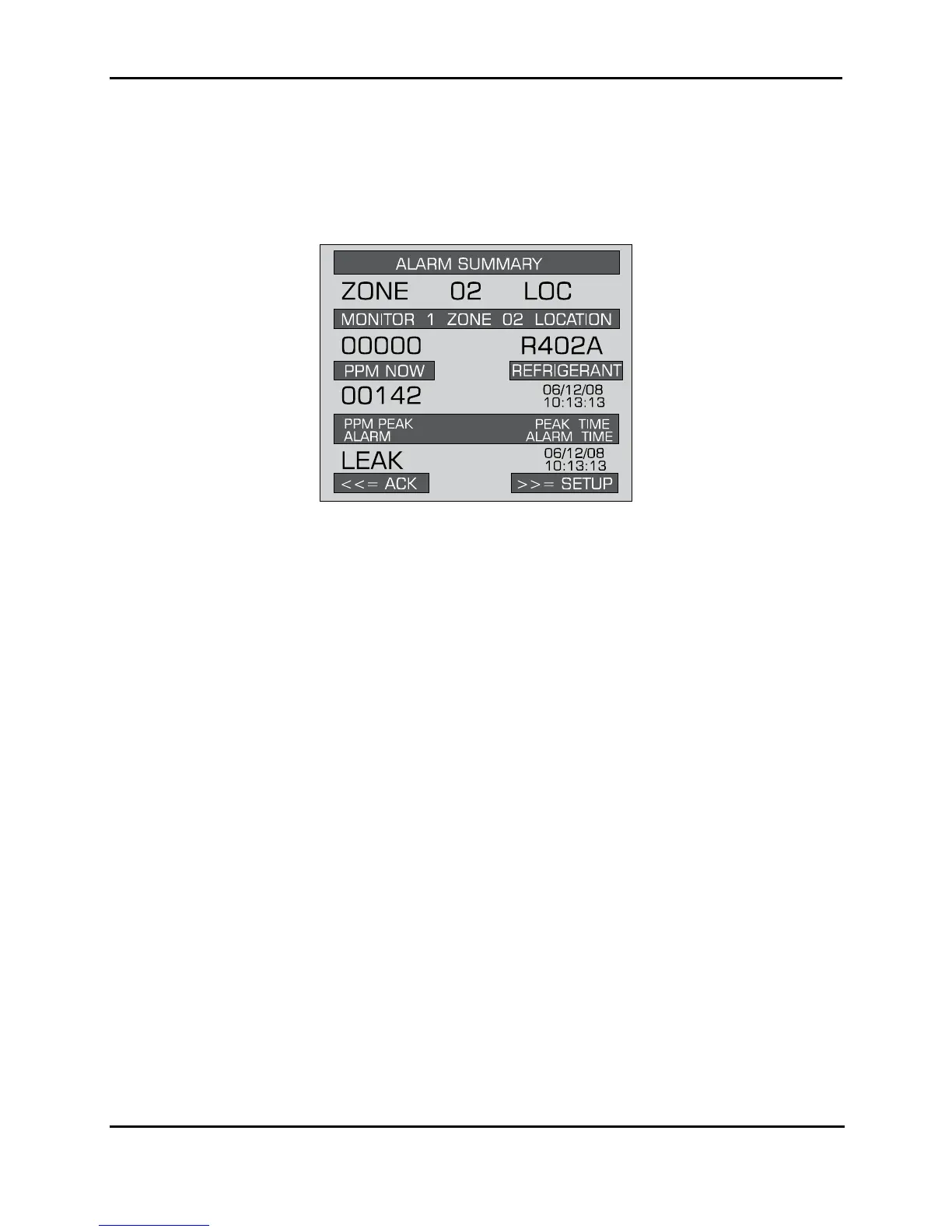

Alarm Detail Screen
The Alarm Detail Screen displays more comprehensive information about the nature of the alarm
including:
• Complete location information
• Refrigerant and current ppm
• Peak ppm and peak time
• Type of alarm, alarm time, and date
This screen provides the following three options at the bottom of the display:
ACK (<<) Acknowledges the alarm as described in the next section
ESC Returns to the Alarm Summary Screen
SETUP (>>) Navigates to Zone Setup Screen #1, which enables you to review the zone
setup parameters and access the Trend Screen
4.6.4. Acknowledging Alarms
Each pending alarm may require, depending upon selected alarm mode, acknowledgment before
the system returns to normal operation (refer to Alarm Ack Mode). To acknowledge an alarm,
navigate to the Alarm Detail Screen and press the ACK key as previously described. You will
then be returned to the Alarm Summary Screen and the box associated with that alarm will no
