MZ-RD – Multi-Zone Remote Display
Instruction 3015-5157 15
This value is the node address from 1 to 15 assigned to each gas monitor which is on the
network. These values must match the settings on each gas monitor.
3.3.12. Navigating to the 1st and then 2nd Monitor Setup Screen
From the System Screen, select the Multi-Zone unit you wish to set up to access that unit’s
Monitor Setup Screen #1.

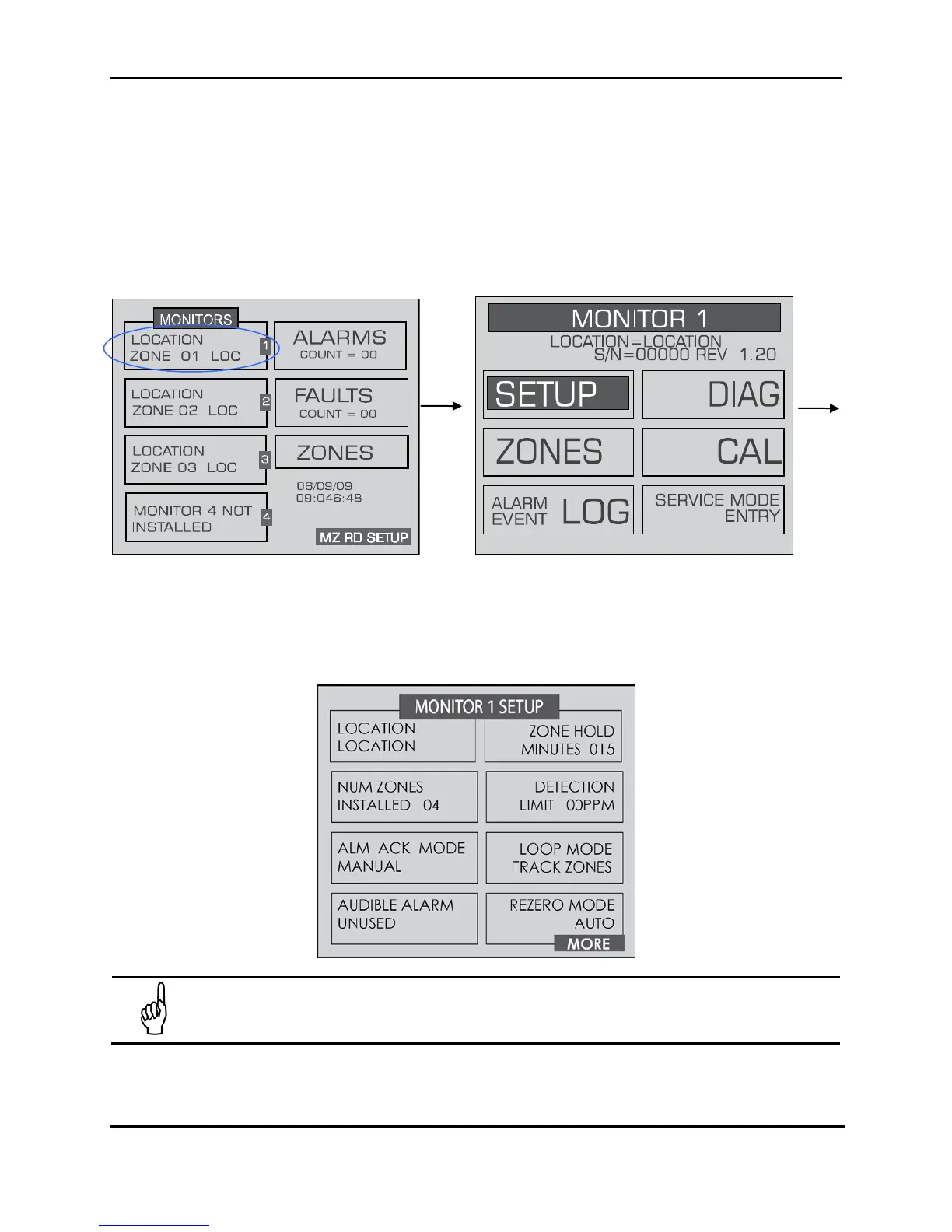

System Screen Monitor Setup Screen #1
On Monitor Setup Screen #1, select the SETUP option to go to Monitor Setup Screen #2. To
return to the System Screen, press ESC.
Monitor Setup Screen #2
NOTE: For description or information on changing these settings please refer to the
appropriate gas monitor instruction manual.
