MZ-RD – Multi-Zone Remote Display
Instruction 3015-5157 21
4.3. Alarm Conditions
When an alarm condition is detected anywhere on the network the red alarm will glow. Additionally,
an external alarm device may activate and an audible alarm may sound if those features have
been enabled.
An inverse flashing box indicates an alarm condition in the affected zone. If manual
acknowledgement is required by the system setup, the alarm must be acknowledged by pressing
the left arrow key while this screen is displayed. If the right arrow key is pressed, setup information
for the alarm screen will be displayed

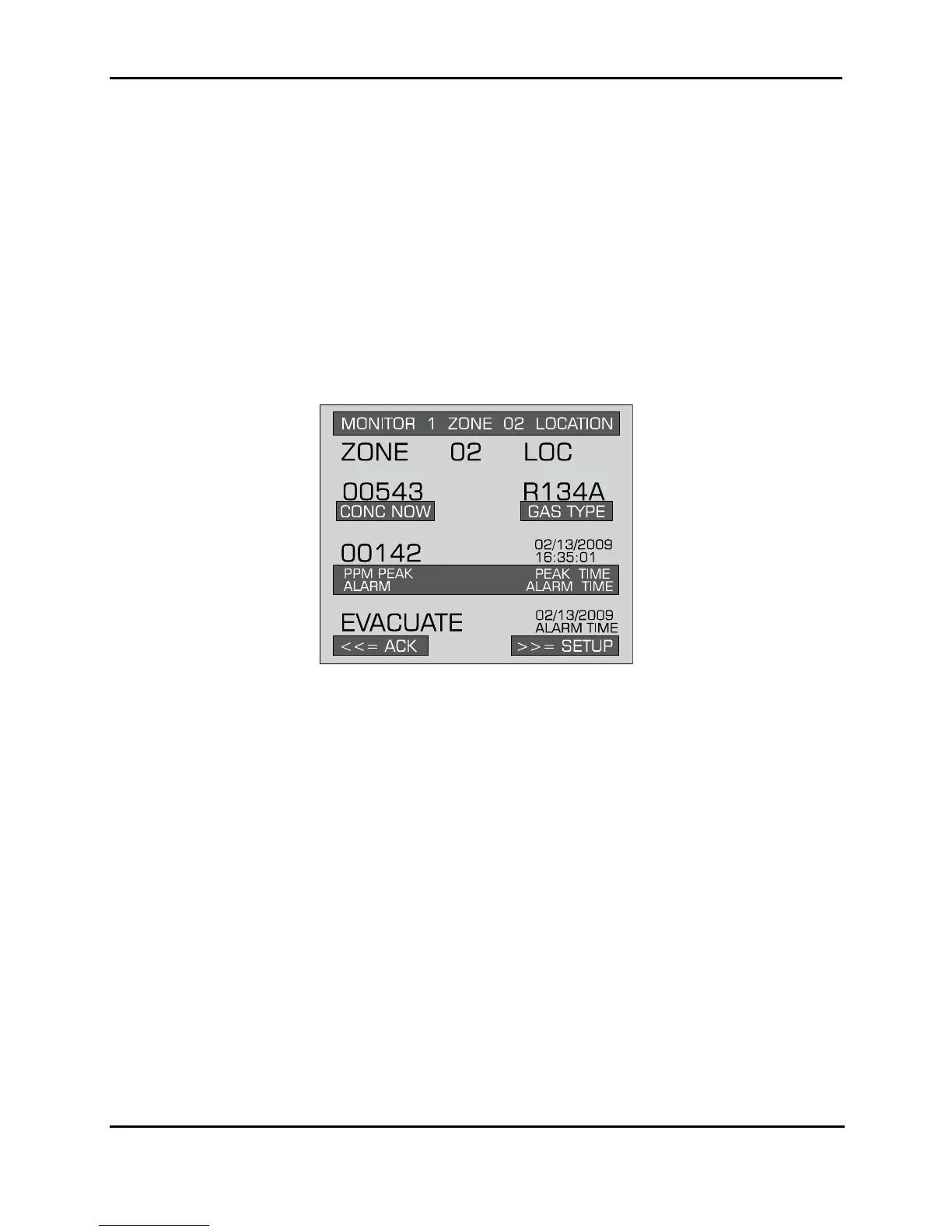

Zone Alarm Screen
If the current Zone Screen appears normal, scroll through the displays using the NEXT/BACK
keys or the UP/DOWN cursor keys until you locate the affected zone. To further investigate the
status of an affected zone, select the zone and press the ENTER key. That Zone’s Setup Screen
#1 will be displayed. You may also select ALARMS to access the Alarm Summary Screen.
Refer to Alarms on page 24
to learn more about responding to alarms.
4.4. Fault Conditions
If a system malfunction occurs, the yellow FAULT LED will glow. Additionally, an external alarm
device may activate and an audible alarm may sound if those features have been enabled.
From the top level Zone Screen, make sure no zones are selected and pres ENTER to go to the
System Screen and then press the FAULTS key to access the Fault Screen. Refer to System
Faults to learn more about responding to system faults.
