Bad Boy 1500 - Brake Light Switch;Starting Inhibitor; Brake Lining Wear; Clutch Shoe Wear

PAGE 34
SERVICE MANUAL
Maintenance

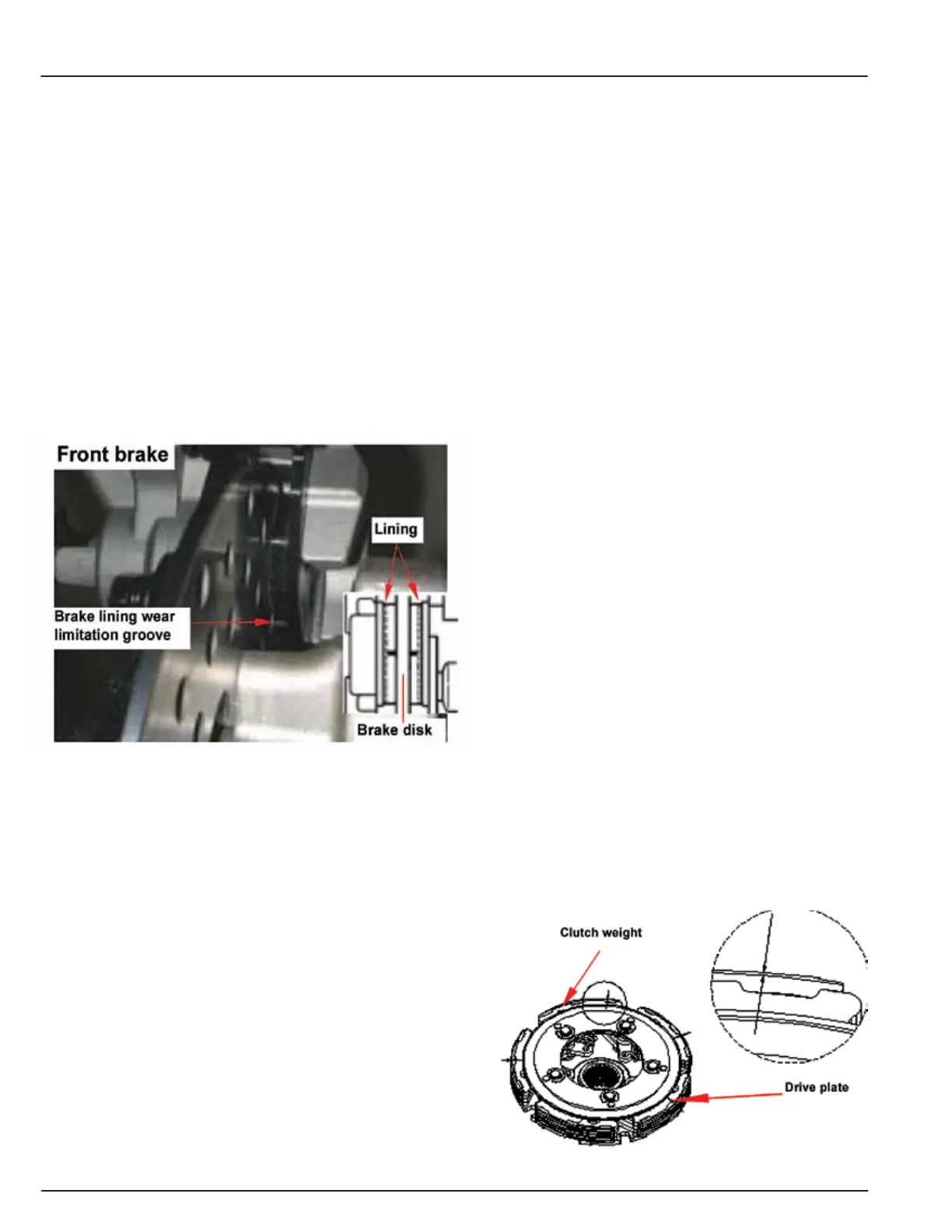

Brake lining wear:
• The indent mark on brake lining is the wear limit.
• Replace the brake lining if the wear limit mark is close to the edge of brake disc.
• Brake Lining Replacement
Check the brake lining condition. Replace the lining if the brake lining wear limitation groove close
to the brake disc.
Brake Light Switch/Starting Inhibitor Switch:
• Make sure that electrical starter can be operated only under brake applying.
Clutch Shoe Wear:
• Run the MTV and increase throttle valve opening
gradually to check clutch operation.
• If the MTV has a shudder when moving forward,
check clutch disc condition.
