CHAPTER 9 TRANSMISSION SYSTEM
Final Driving Mechanism .................................... Page 83-87

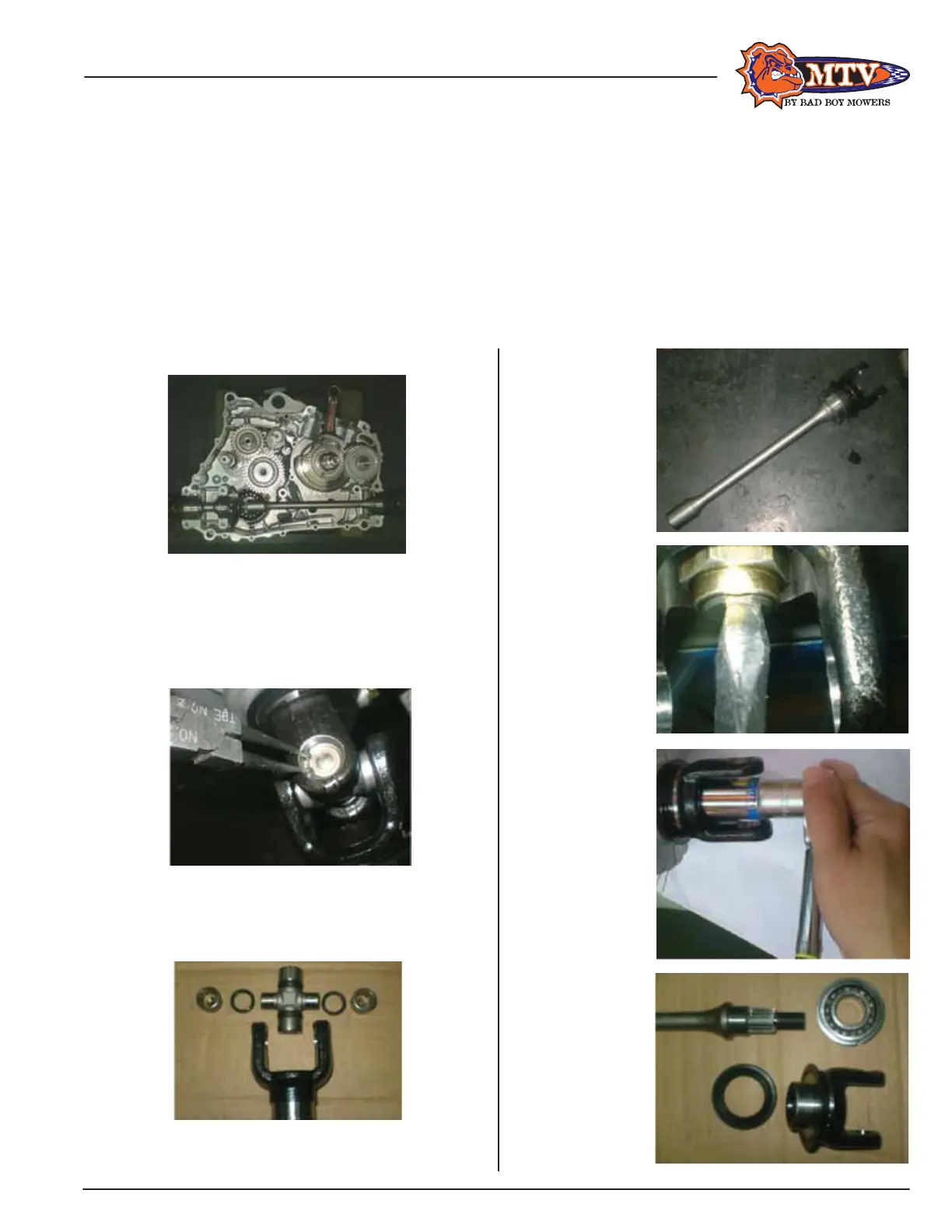

Transmission System:
Remove
• Remove the driven output rear shaft and
front shaft.
• Separate the driven output rear shaft and
front shaft.
• Remove the c-ring from the universal joint
assembly.
• Remove the driven output front shaft with a chisel.
• Remove the joint parts.
• Replace the
removed nut
with a new
one when
reassembled.
• Unlock the nut
with a chisel.
• Remove the nut.
• Remove the
bearing by
tapping with
hammer.
• Remove the
universal joint
assembly.
