Bad Boy 1500 - Oil Pump

PAGE 41

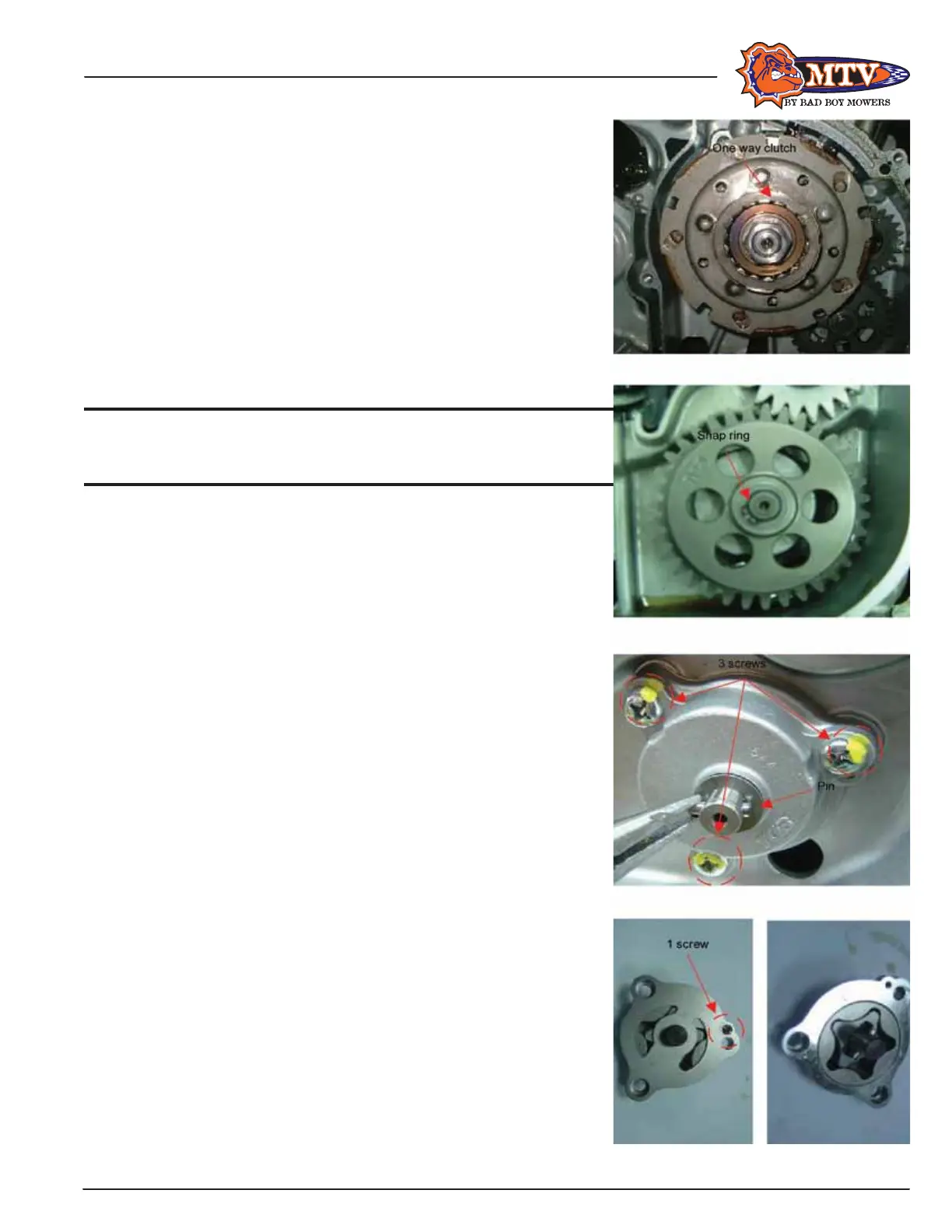

Oil Pump:
Oil Pump Removal:
• Remove the one way clutch.
• Remove the clutch shoe.
• Remove the snap ring.
• Remove the washer.
• Remove the oil pump driver gear.
CAUTION
The clutch shoe nut has left-hand threads.
• Remove the snap ring.
• Remove the washer.
• Remove the oil pump driver gear.
• Remove the pin.
• Remove the washer.
• Make sure that pump shaft can be rotated freely.
• Remove 3 screws on the oil pump
• Remove oil pump.
Oil Pump Disassembly:
• Remove the screws on oil pump cover
• Remove the cover.
• Remove oil pump shaft roller and shaft.
