PAGE 49

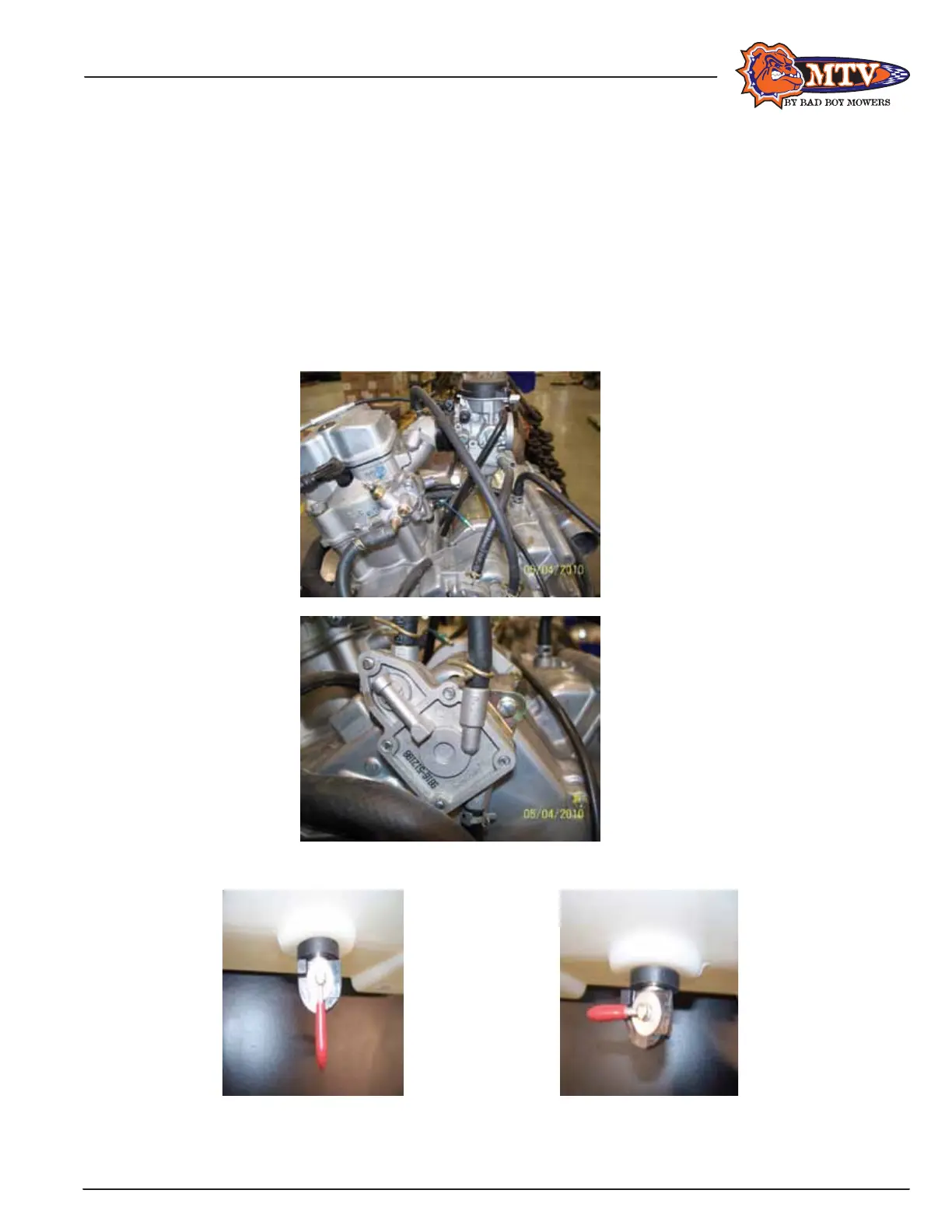

Fuel Tank:
Fuel Unit Removal
1. Open the seat 2. Open the front cover 3. Remove tank clamps
4. Disconnect fuel lines 5. Remove fuel unit
FOR FULL FRONT ASSEMBLY DRAWING CHECK LAST 2 PAGES OF CHAPTER 4
Carburetor Hose Routing:
Fuel Pump:
Fuel Valve Operation:
Fuel Valve ON: Fuel Valve OFF:
