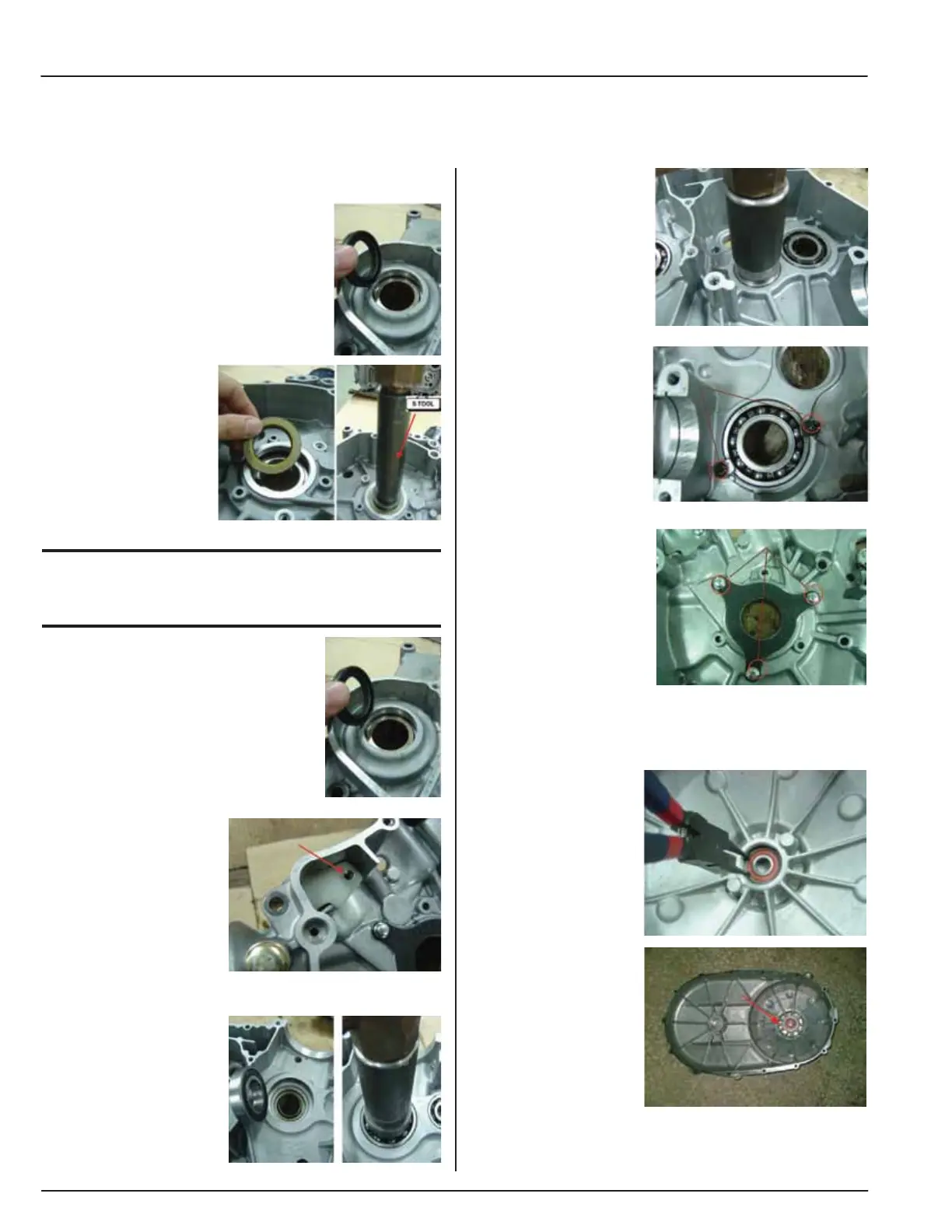

Bad Boy 1500 - Oil Seal

PAGE 94
SERVICE MANUAL
Crankshaft/Crankcase
Oil Seal:
• Remove the oil seal with the
special tool.
• Oil seal remover 440656
• Install the oil seal
with the special
tool:
• Bearing installer set
440655
CAUTION
• Replace oil seal to prevent oil leakage.
NOTE:
Be sure the stamped mark on the oil
seal faces outside.
OIL SEPARATOR
• When installing the
oil guide plate, apply
a small amount of
Locktite 262TM
(Thread locker) to
the screw.
Bearing Reassembly:
• Install the bearing.
NOTE:
The sealed cover of
the bearing must face
outside.
• Install the bearing
chuck.
NOTE:
When installing the
Bearing chuck,apply
a small amount of
Locktite 262TM (Thread
locker) to the screws.
DRIVE BELT COVER
• Remove the snap
ring with the snap
ring pliers.
NOTE:
If bearing is damaged,
replace with new one.
• Remove the
bearing.
