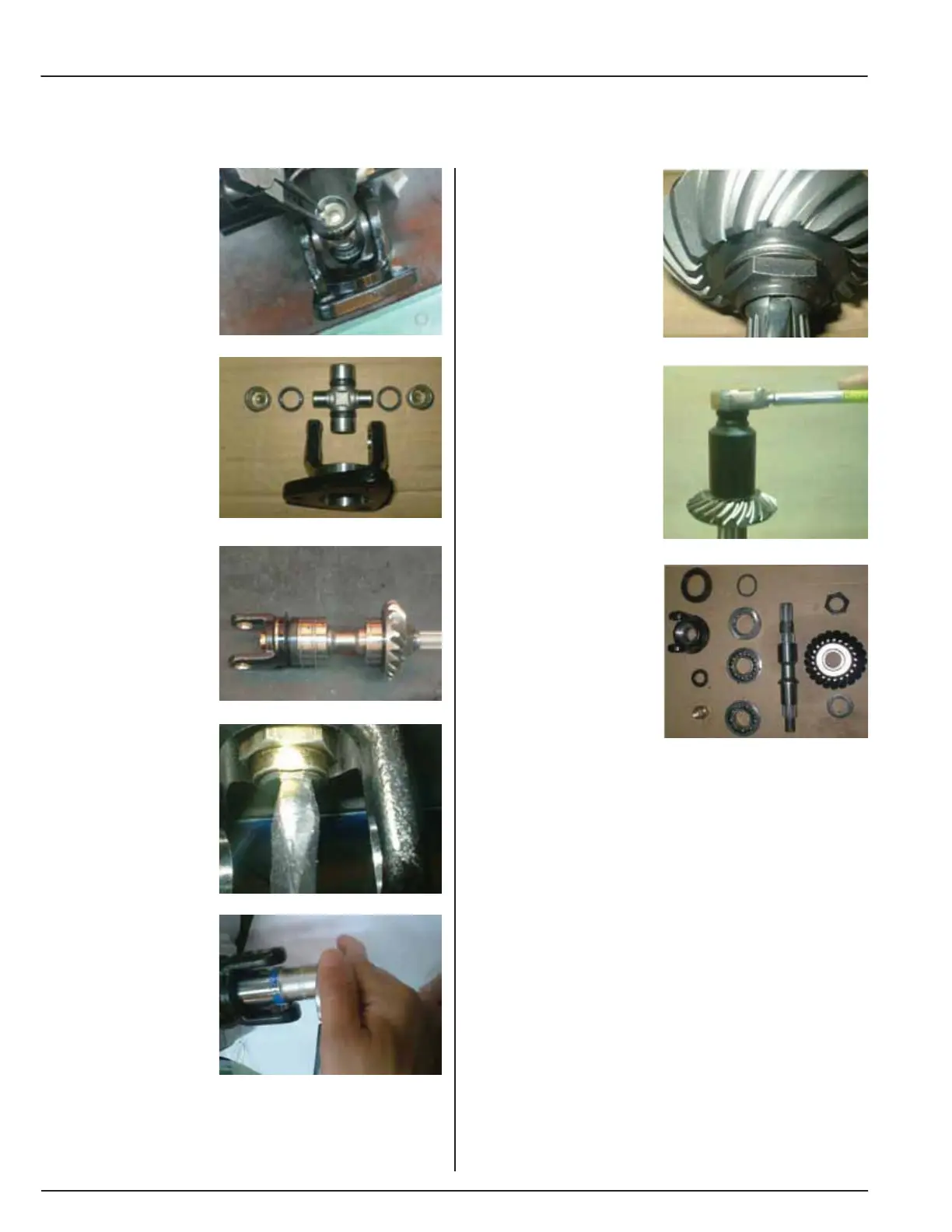

• Rear universal joint
disassembly.
• Remove the c-rings
from the universal
joint assembly.
• Remove the parts.
• Using a vise hold
the driven output
rear shaft and
remove the nut.
• Reassemble with a
new nut.
• Unlock the nut with
a chisel.
• The new bearing
and oil seal must
be replaced when
reassembled
• Remove the nut
from Driven output
front shaft
• Disassemble the bevel
gear
• Unlock the nut with a
chisel.
• Using a vise hold the
driven output front
shaft and remove the
nut.
• Remove the washer
driven bevel gear and
bearing.
• Remove the parts.
• Replace with new nut
when reassembling.
• Replace with new
bearing and oil seal
when reassembling.
