Operating Manual BaehrTec A1200 / A2000
Page 18/64 English – V100 - Date 09/2017

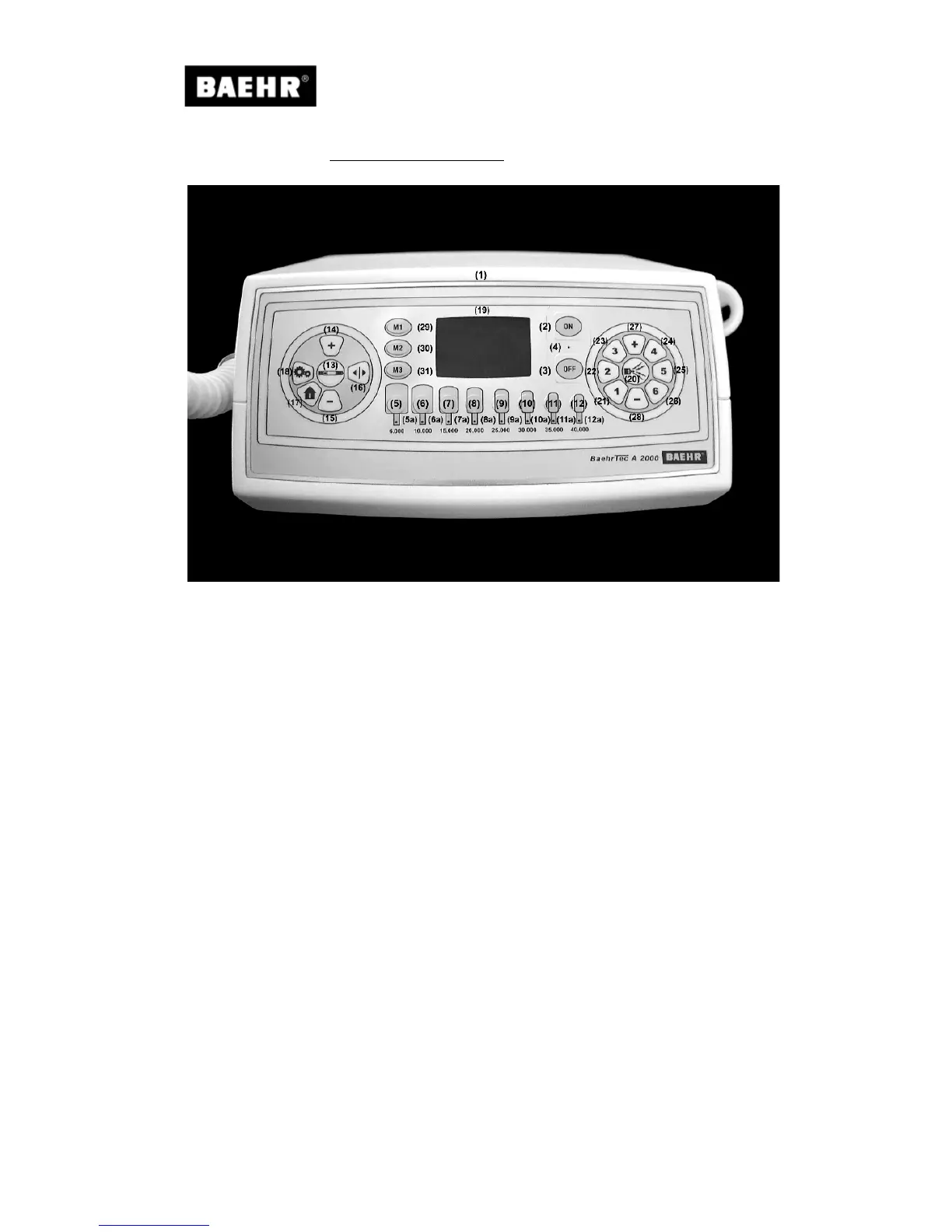

4.1.2 Front view BaehrTec A2000
Fig. 4b
(1) Controller housing
Main switch: (2) "ON" and (3) "OFF" with corresponding (4) LED
(5) – (12) Push buttons for instrument speeds (6,000 – 40,000 rpm) with the corresponding
(5a) – (12a) LEDs
(13) Push button to switch handpiece motor on and off
Push buttons handpiece speed: (14) + and (15) - (1,000 rpm)
(16) Push button for instrument direction right/left
(17) Push button "Home"
(18) Push button "Options Menu"
(19) Colour display
(20) Push button for operational readiness of suction
(21) - (26) Push buttons for "Suction level" (Levels 1-6)
Push buttons for "Change of suction level": (27) + and (28) -
(29) - (31) Push buttons "Memory"
