7) Attach the knurled screws and position the filter cartridge on the controller. Turn the
knurled screws clockwise until you feel a slight resistance.

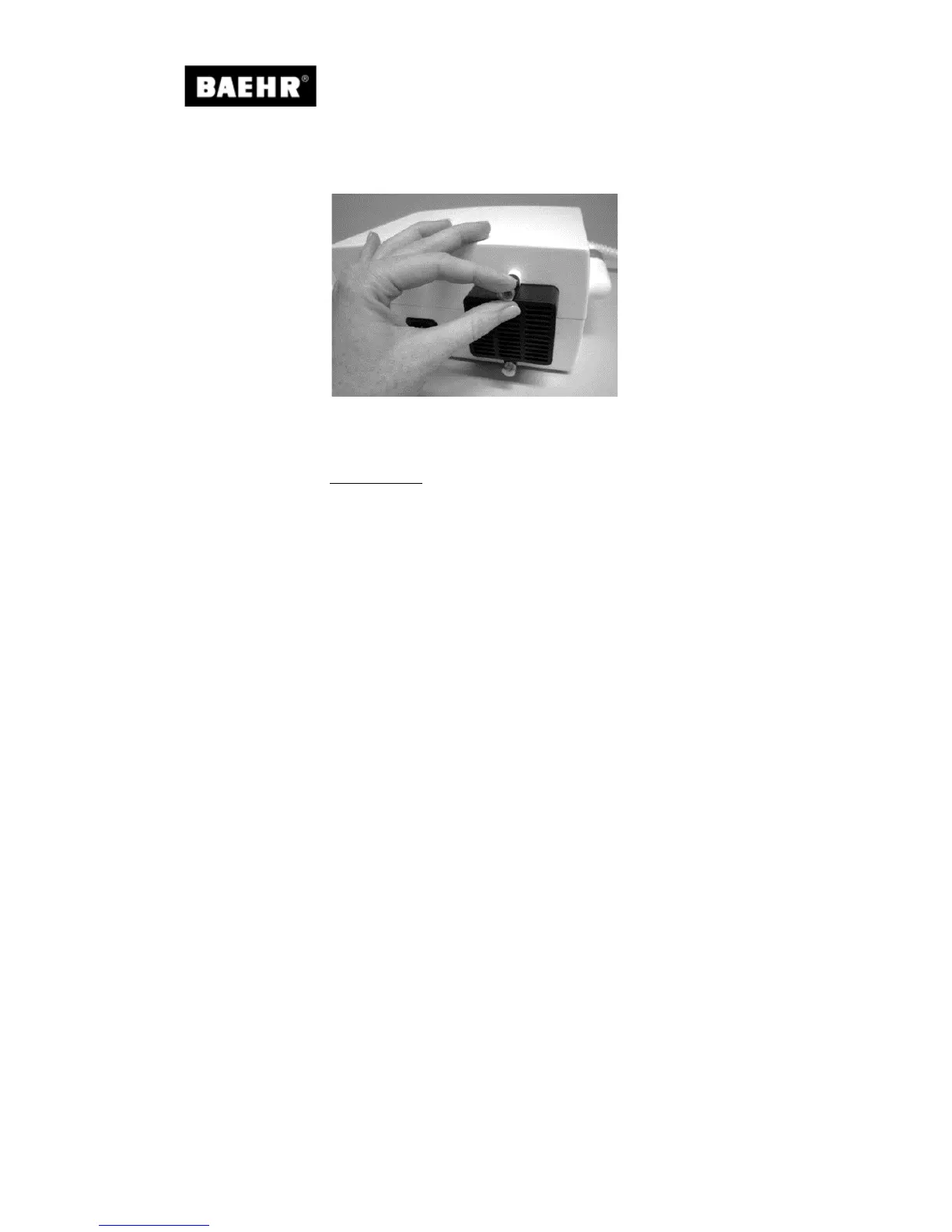

Fig. 21
Attention! Please do not turn the knurled screws too far or overtighten them.
4.10 Getting started
1. Make sure that there is a dust bag in your BaehrTec A1200/A2000. To do this, you must
disconnect the dust bag lid from the controller (see section "Disconnecting/connecting
the dust bag lid to the controller"). On the receptacle (39) on the inside of the dust bag
lid, a dust bag is pushed on as far as the stop. There further is a turbine protection filter
inside the suction chamber. If everything is okay, connect the dust bag lid back onto the
controller (see section "Disconnecting/connecting the dust bag lid to the controller"). If
the dust bag is missing, you must insert a new dust bag before working with the device
(see section "Changing the dust bag"). Now connect the dust bag lid back onto the
controller (see section "Disconnecting/connecting the dust bag lid to the controller").
2. Please ensure that the device has a secure footing, does not fall down and cannot be
torn down, and that the extracted air can escape easily. Switch the main switch (3) off.
3. Connect the supplied non-heating connection cable (57) with the non-heating connector
(56) to the plug (46).
4. Plug the safety plug to (58) in a proper safety outlet.
5. Now switch the BaehrTec A1200/A2000 on using the main switch (3). After a short LED
check, the "Power ON" LED (4) and the LED for the largest instrument (6,000 rpm) (5)
will light up.
The following things are set after each power on:
o Handpiece motor direction of rotation = right
o Handpiece speed = 6,000 rpm (LED illuminated)
o Handpiece motor = OFF
o Suction level = 4+
o Suction = ready for operation
o Suction = off (as handpiece motor = off)
These settings will also be shown to you accordingly on the display. The BaehrTec
A1200/A2000 is now ready for use.
6. Now hold the handpiece in one hand and plug an instrument with a shaft diameter of
2.35 mm as far as possible into the opening for DIN-instruments (52). The head of the
instrument must not be larger than that shown on the front panel (max. 12 mm).
