Operating Manual BaehrTec A1200 / A2000
Page 52/64 English – V100 - Date 09/2017

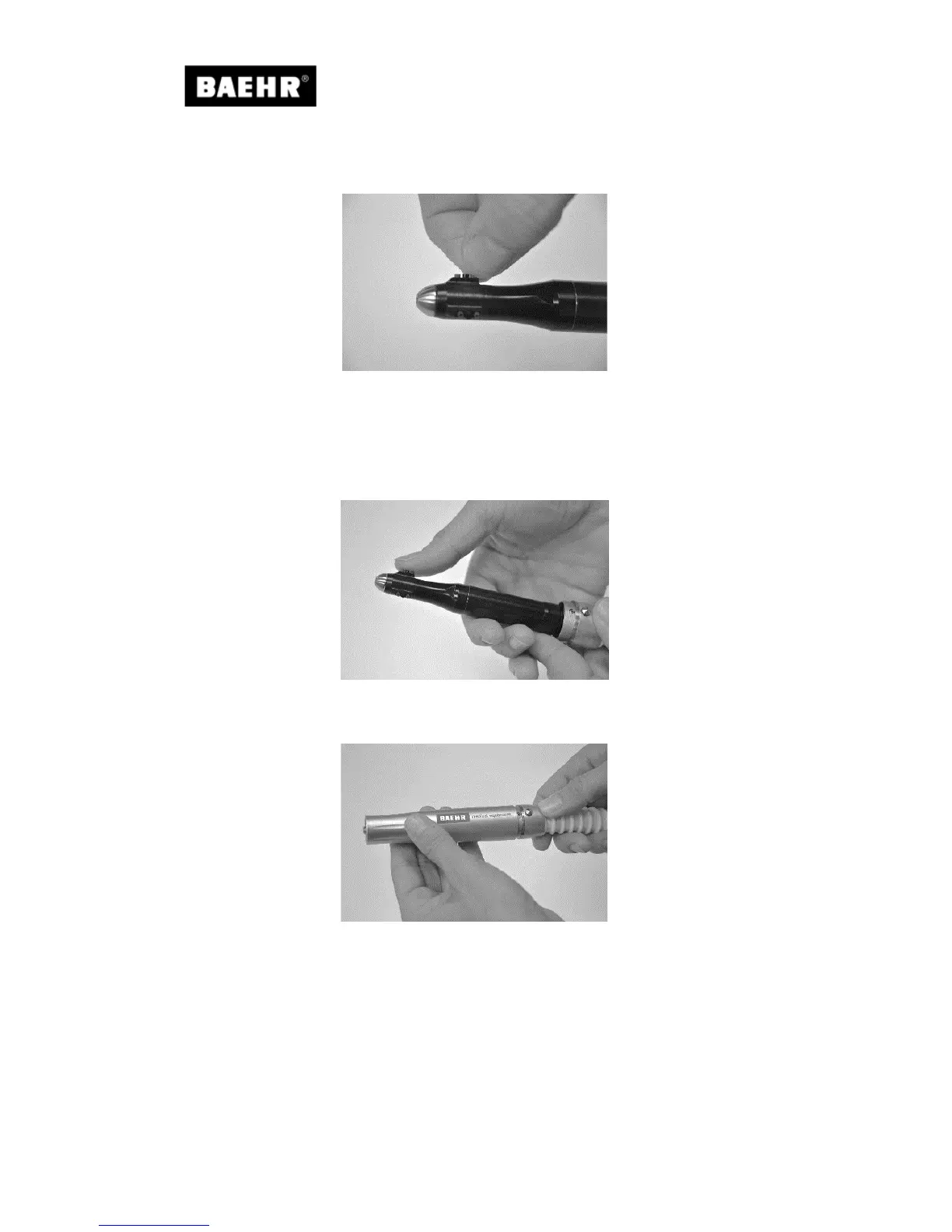

Take the nine dampers for the handpiece case from the slots on the handpiece motor (possibly
using a pair of tweezers) and dispose of these properly.
Fig. 33
Now reinsert the new dampers for the handpiece case. Make sure that you insert the three
black dampers in the middle row.
Insert the six green dampers in the outer storage rows. Press all of the dampers once again
afterwards.
Fig. 34
Now screw the handpiece case back onto the handpiece cap.
Fig. 35
