Airbag system 29
D50
1
Safety operation instruction

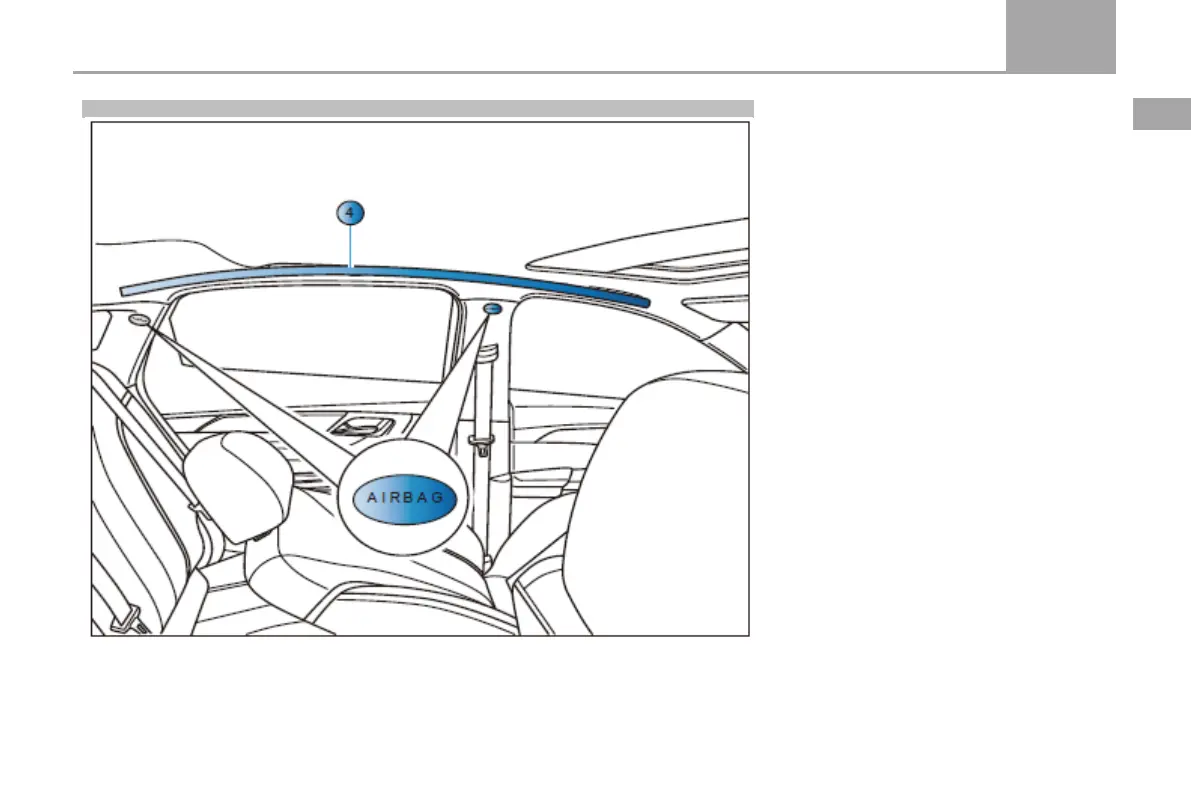

* Side Curtain Airbags
Side curtain airbags ○
4
are located at the side
members of the roof. The word "AIRBAG" is
marked on the B and C columns
In the event of a side collision of the vehicle, the
system may trigger a side curtain airbag on the
collision side of the vehicle.
Once triggered, the gas generated by the gas
generator will quickly fill the side curtain airbag.
The side curtain airbag is rapidly inflated and
deployed to cover the side windows and the
door post to protect the human head.
To provide the desired additional protection in
an accident, the side curtain airbag will expand
rapidly in an instant. It is normal for a small
amount of smoke to be released when the
curtain is inflated.
