Operation system and specification
Seat
Correct seat adjustment ensures full protection
of seat belt and airbag system.
Warning
●It is strictly forbidden to adjust the
driver's seat in the course of driving so as
to avoid serious accidents caused by the
driver losing control of the vehicle due to
the movement of the seat.
●It is strictly forbidden to place items
under the manual adjustment seat,
otherwise these items may accidentally
push the seat adjustment rod upward, and
the seat will suddenly move, causing
vehicle loss in the course of driving. Items
placed under the driver's seat may also
hinder the operation of the brake pedal,
leading to serious accidents.
●When adjusting the seats, we should pay
attention to the people or objects behind
the seats, so as not to cause injury to
people or damage to objects.。
Notice
●After adjusting the seat position, try to
move the seat cushion and backrest back
and forth to ensure that the seat is locked
Tips
●Seat position when measuring seat
cushion depth, i.e. design position:
back-to-back angle (25±2)°.The front and
back position is to adjust the seat to the
last position, then slide forward 20 mm
position (the last position is to adjust the
4-block step forward).
●Front Row
The maximum adjusting
angle of the seat back is
76±4
°
and it
can be turned forward
24±2
°
and
backward
52±2
°at the designed position.
●Rear Row: Locking backrest angle
(26±2）°,flip forward（103±2）°.

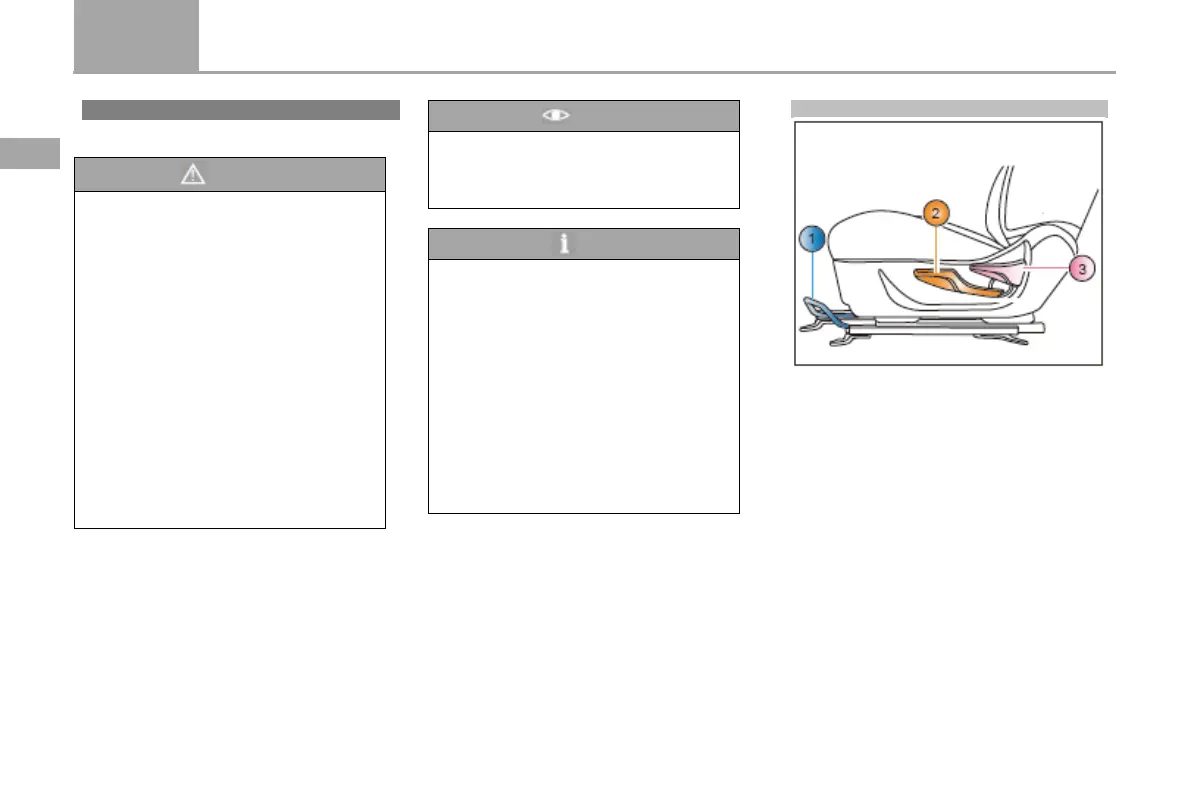

Manual adjustment of driver's seat
Seat rear and forth adjustment:
Pull up the front of the seat below the
adjustment pull rod
①
, at the same time move
the seat to the appropriate position before and
after; Loosen and adjust the pull rod
①
,
slightly move the seat back and forth until the
seat is locked reliably
。
Up and down adjustment of seat cushion *:
The seat cushion can be raised by pulling the
adjusting handle upward, while the seat cushion
can be reduced by pulling the adjusting handle
downward.
