48 Instrument and control system
D50
2
Operation system and specification

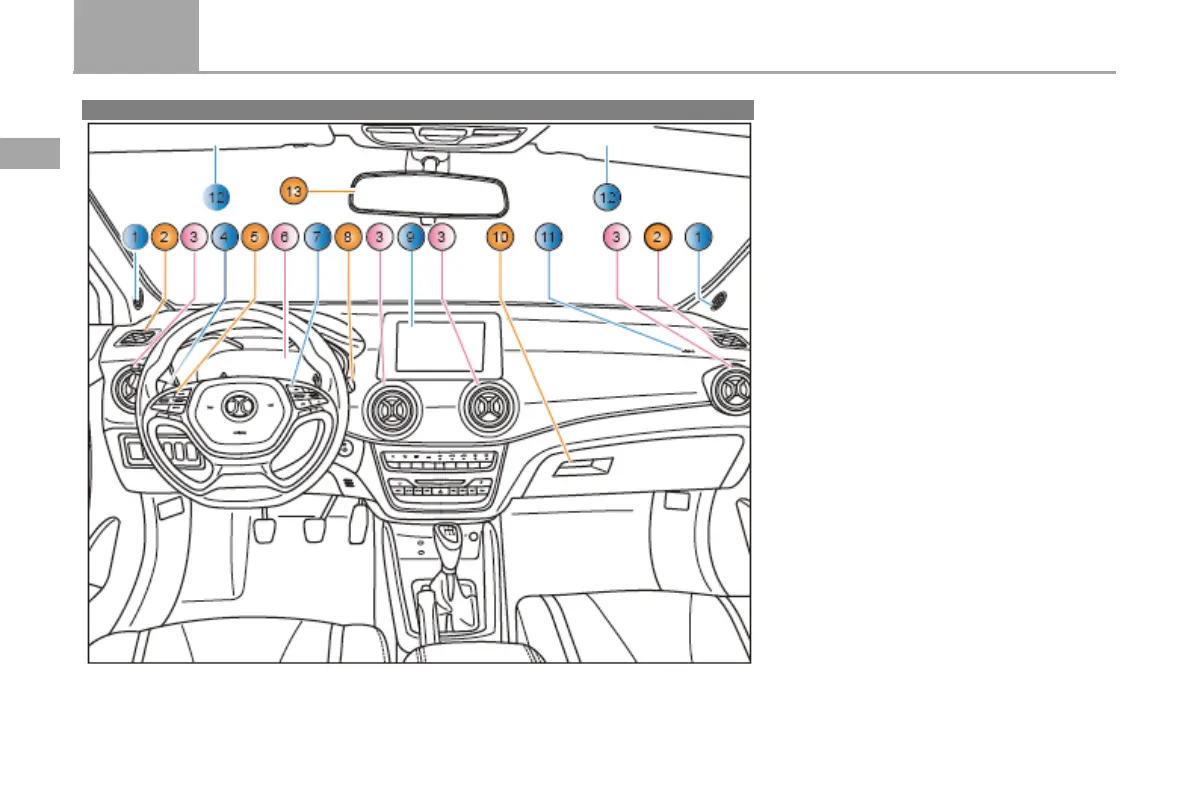

Instrumentation and control mechanism (Manual transmission) (Mechanical brake)
14. AC Console
15. Hazard warning switch
16. Multimedia control panel
17. 12V outlet
18. USB port
19. Gear lever
20. Accelerator pedal
21. Brake pedal
22. Start/stop buttons OFF
23. Clutch pedal
24. Airbag for Diver
25. Steering wheel adjusting lock handle
26. Engine hatch cover opens handle
27. Multifunction switch panel
