TERMINATION UNIT (NTCS04) CONFIGURATION
INTRODUCTION
A - 2 WBPEEUI240755B0
®

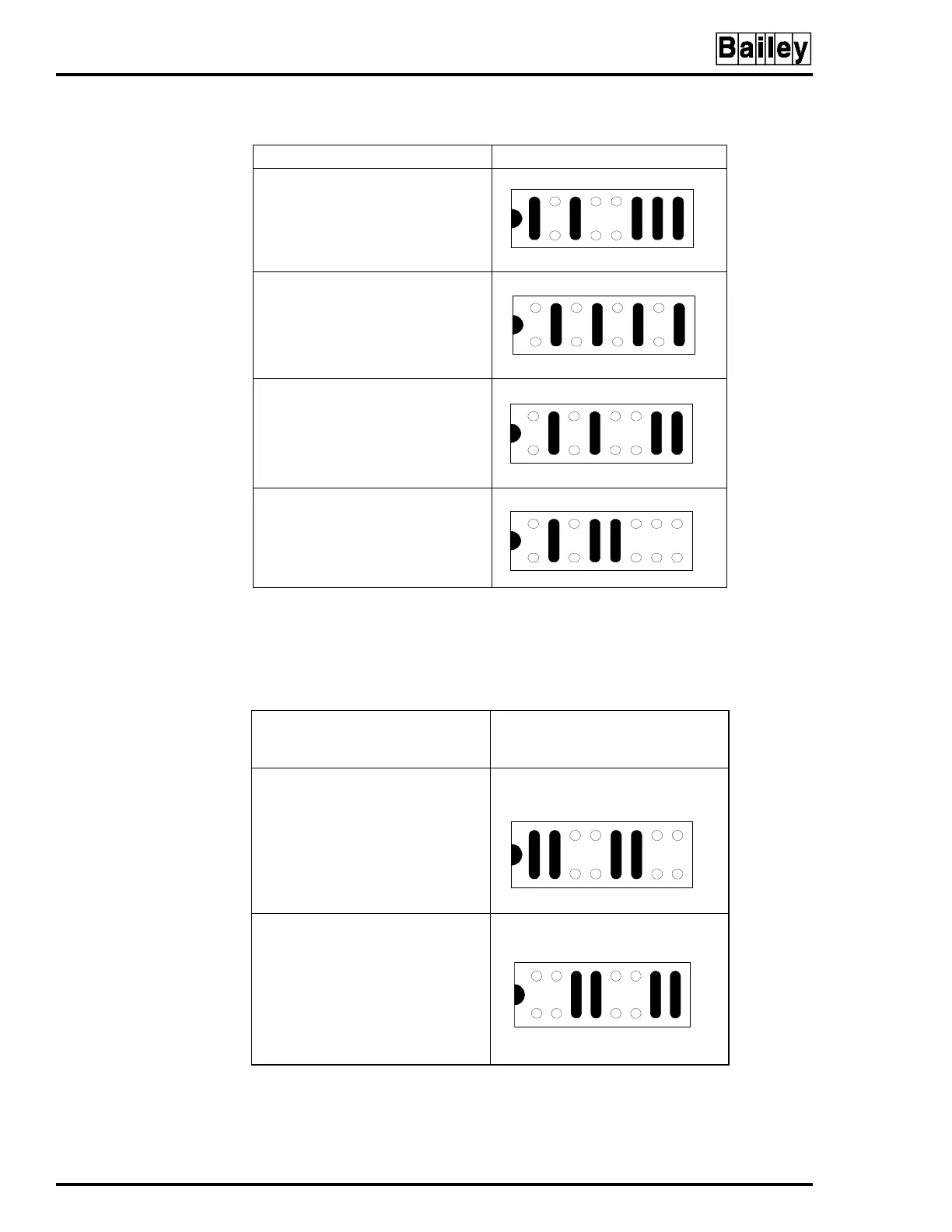

Table A-1. Analog Input Dipshunt Configuration
Application/Signal Type Dipshunt Configuration XU1-XU4
System powered (4-20 mA)
Externally powered (4-20 mA)
Single ended voltage (1-5 VDC)
Differential voltage (1-5 VDC)
Table A-2. Analog Input Destination for Station Feedback
Application/Signal Type
Dipshunt Configuration
XU8
(Station Designator/Analog Input)
Station No. 1 (P2 connector)
Station/termination unit A/I designa-
tion
Station No. 2 (P3 connector)
12345678
12345678
12345678
12345678
12345678
(AI2/AI1) (AI1/AI3)
T00102A
1 2 3 4 5 6 7 8
(AI2/AI2) (AI1/AI4)
