A.1.8 EMC filters
AC filters remove high frequency noise from the AC power supply, protecting the MintDrive
II
.
These filters also prevent high frequency signals from being transmitted back onto the power
lines and help meet CE requirements. To select the correct filter, see section 3.4.5.
A.1.8.1 Catalog numbers
Baldor
catalog number
Rated volts
Rated amps
@ 40°C
Leakage
current (mA)
Weight
kg (lbs)
FI0014A00 250 3 0.4 0.27 (0.6)
FI0015A00 250 6 0.4 0.45 (0.99)
FI0015A02 250 12 0.4 0.73 (1.61)
FI0018A00 480 7.7 33 0.5 (1.1)
FI0018A01 480 32.9 33 1.2 (2.65)
FI0029A00 250 22 33 3.0 (6.6)
B
M5
A
F
C
E
D
G

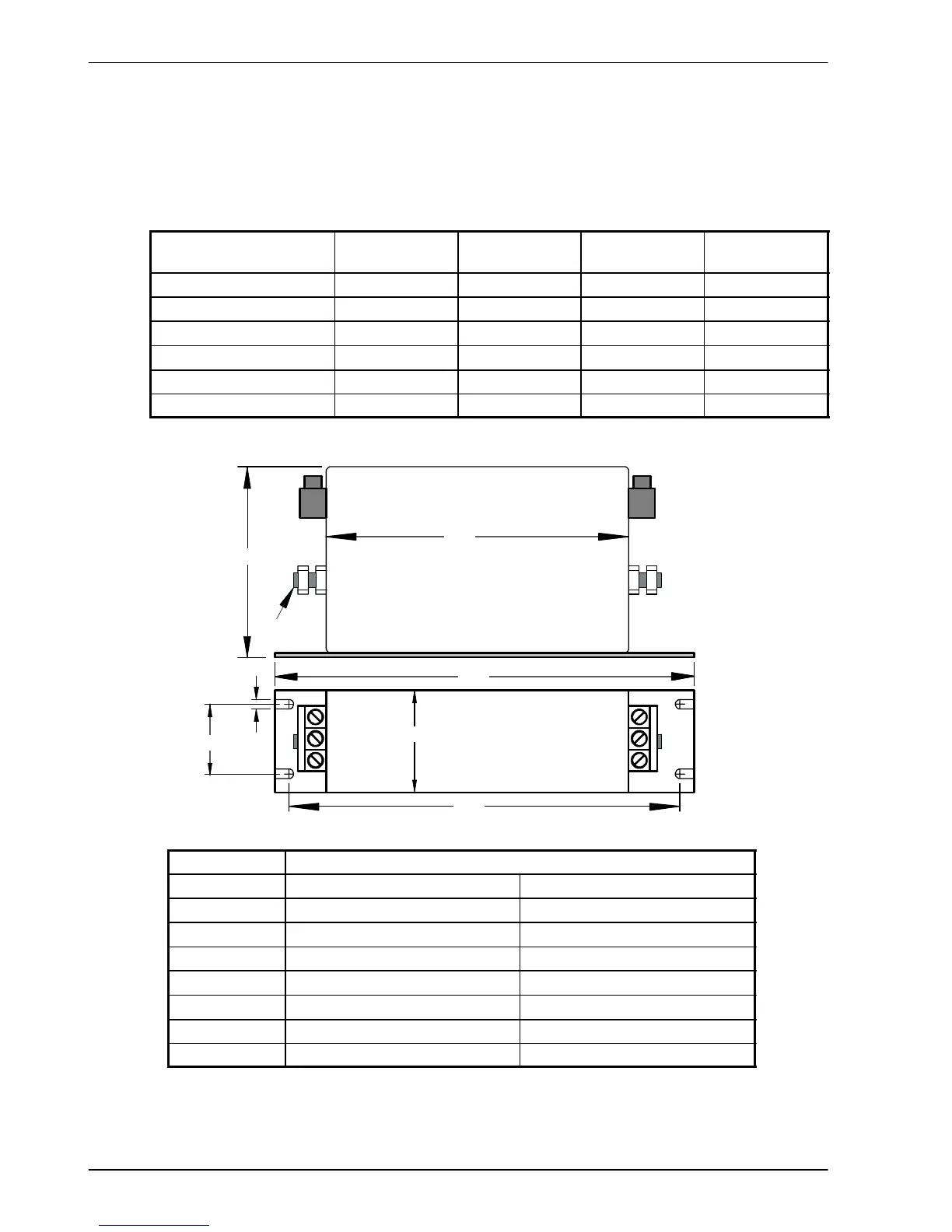

Dimensions mm (inches)
Dimension FI0018A00 FI0018A01
A 190 (7.48) 270 (10.63)
B 160 (6.30) 240 (9.45)
C 180 (7.09) 255 (10.04)
D 20 (0.79) 30 (1.18)
E 4.5 (0.18) 5.4 (0.21)
F 71 (2.80) 85 (3.35)
G 40 (1.57) 50 (1.97)
Figure 48 - Filter dimensions, types FI0018A00 and FI0018A01
