4-4 Input / Output MN1901
4.2.2 Analog input - X4
Location Connector X4, pins 2 & 3
(Mating connector:
Phoenix MINI-COMBICON MC 1.5/6-ST-3,5)
Name AIN1
Mint keyword ADC.1
Description Single ended or dif ferential input.
Common mode voltage range: ±10VDC.
Resolution: 14-bit with sign (accuracy ±1.2mV)
Common mode rejection: 40dB
Input impedance: >5kΩ
Sampling interval: 500μs - Software (Mint programs)
500μs - Demand reference signal
Analog input X4 can be connected as either a differential or a single ended input as shown in
Figure 28.
10k
LF412
AGND
Mint
ADC.1
MintDrive
II
10k
10k
10k
-15V+15V
-15V+15V
20k
-
+
20k
Low pass filter &
level correction
(inverts signal )
AIN1-
AIN1+ 2
3
‘X4’

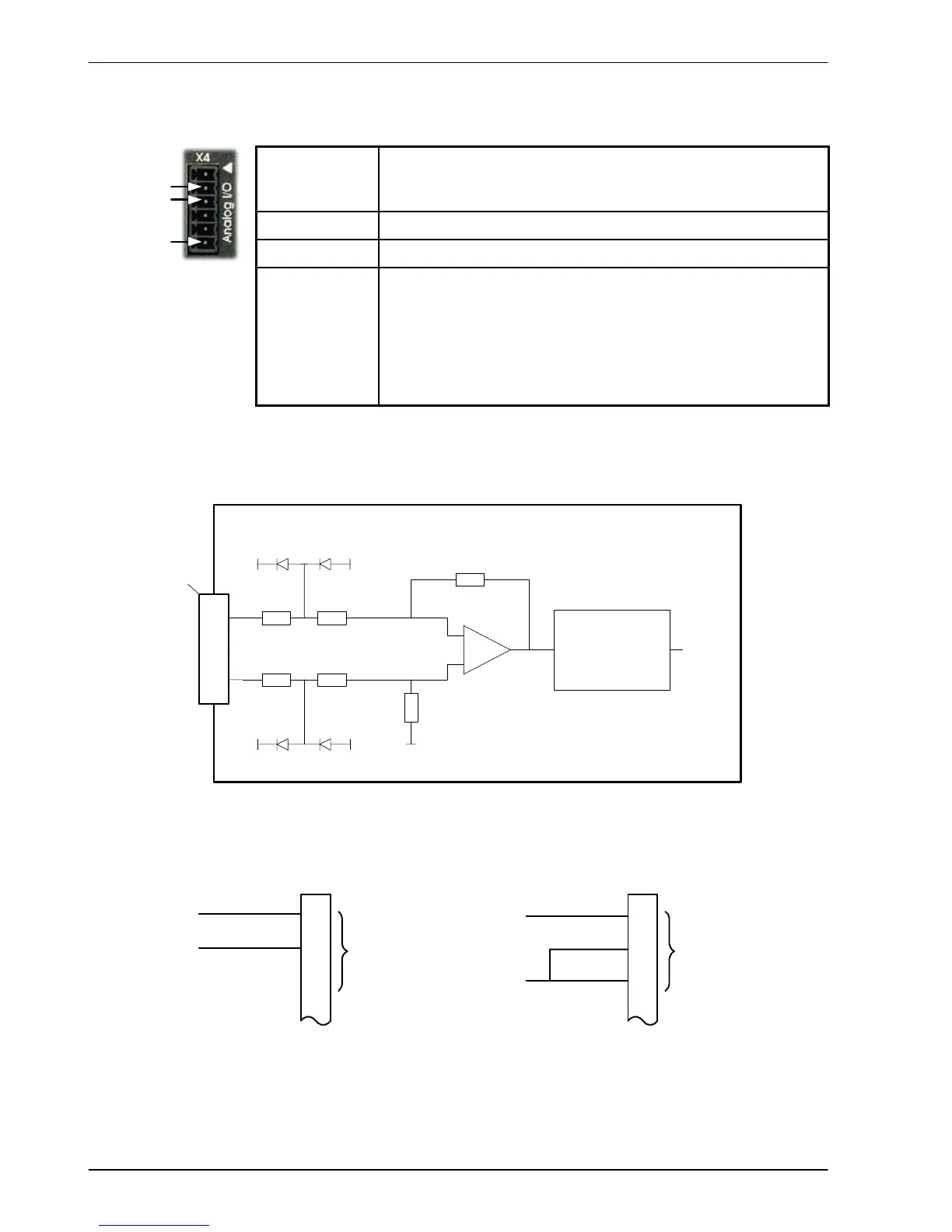

Figure 27 - AIN1 analog input circuit
AIN1
(ADC.1)
2
3
6
X4
GND
AIN1
(ADC.1)
2
3
6
X4
AIN1-
Differential connection Single ended c onnection
AIN1+
AIN1+
Figure 28 - AIN1 analog input wiring
2
3
6
