www.bal dormotion.com
A-8 Accessories MN1901
B
D
AC
Mounting keyhole and slot detail
A
B
C
A 5.5mm
B 11mm
C 10mm
D 5mm
A
D
Dimensions shown as: mm (inches).
AC
F
E
Dimensions mm (inches)
Dimension FI0029A00
A 255 (10.04)
B 100 (3.94)
C 244.5 (9.63)
D 70 (2.76)
E 40 (1.57)
F 20 (0.79)

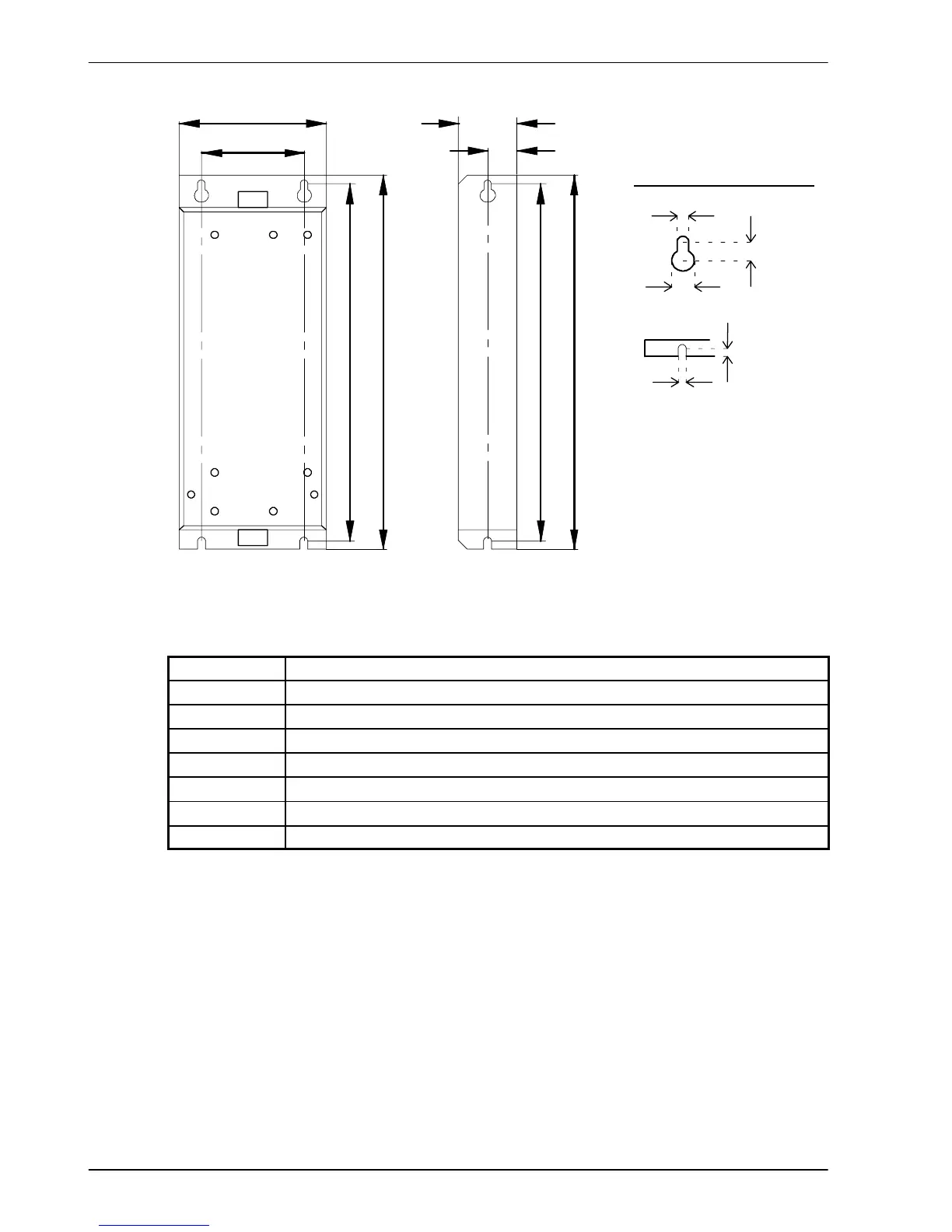

Figure 50 - Filter dimensions, type FI0029A00
