Balluff BNI EIP-50 105-Z015 Series User Manual

7．EtherNet/IP Connection Procedure
35
4

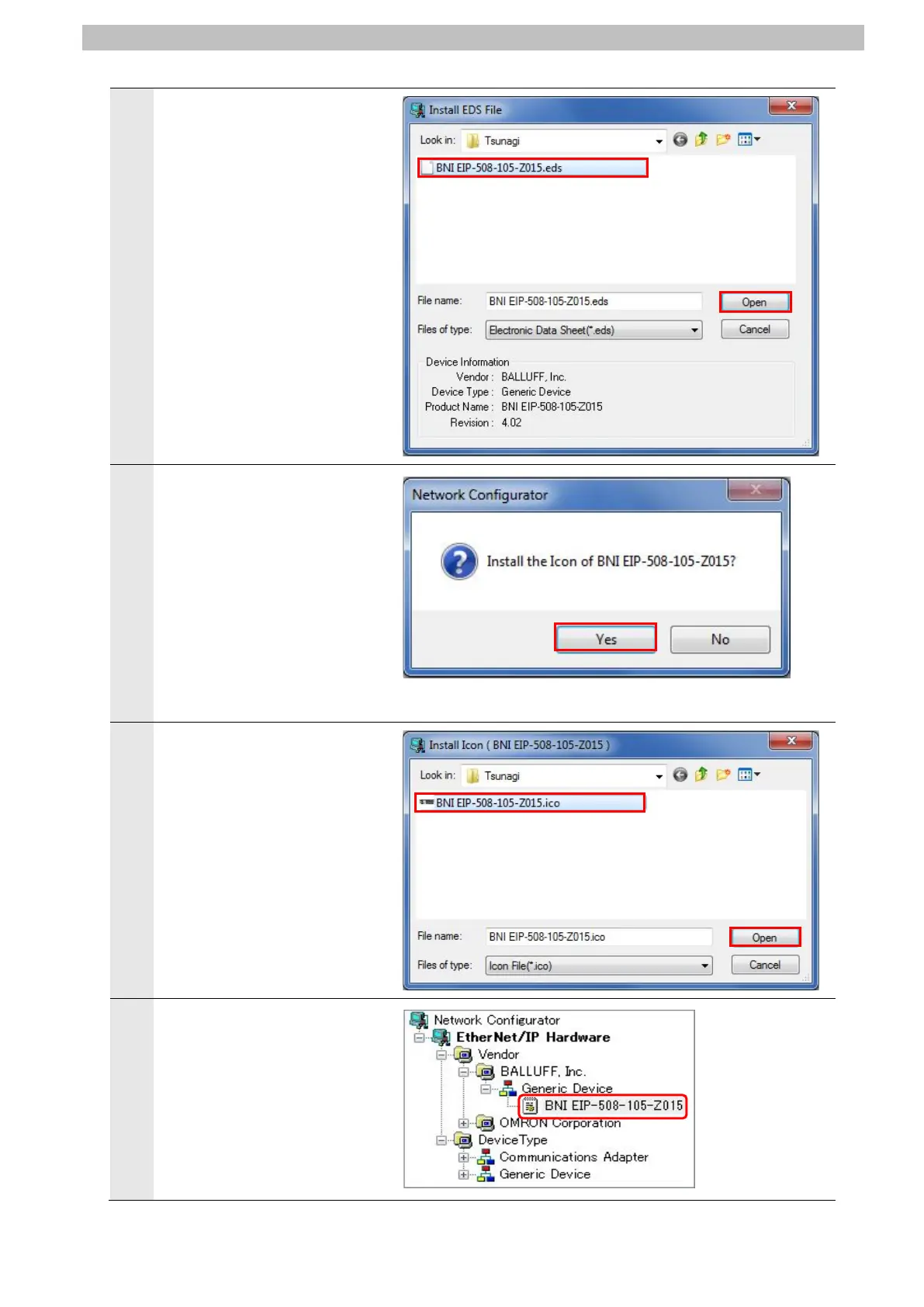

The Install EDS File Dialog
Box is displayed. Select BNI
EIP-508-105-Z015.eds (EDS
file) to install. Click Open.
*For information on how to
obtain the EDS file, refer to
Precautions for Correct Use
in 5.2. Device Configuration.
5
If the dialog box on the right is
displayed, check the contents
and click Yes.
If not, go to step 7.
*If the icon file and the EDS file
are stored in the same folder,
the icon file is automatically
installed, and the dialog box
on the right is not displayed.
There is no need to proceed
with step 6.
6
The dialog box on the right is
displayed.
Select BNI EIP-508-105-
Z015.ico (icon file) to install.
Click Open.
7
Check that Destination Device
is added to the Hardware List.
*It indicates that the EDS file is
properly installed.
