7．EtherNet/IP Connection Procedure
23

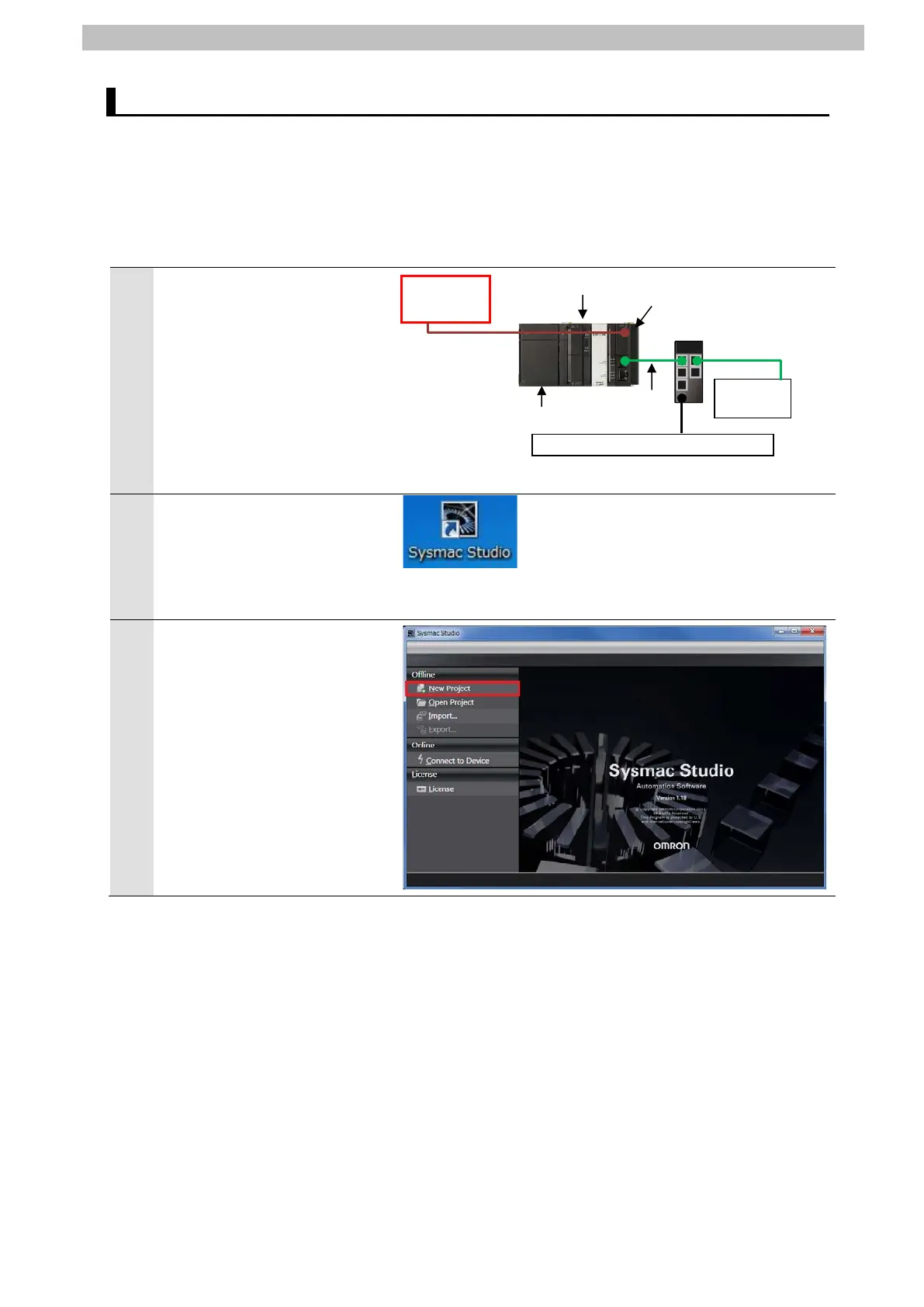

7.3. Controller Setup
Set up the Controller.
7.3.1. IP Address Settings
Start Sysmac Studio and set the IP address of the Controller.
Install Sysmac Studio and the USB driver on your personal computer beforehand.
1
Connect a LAN cable to the
built-in EtherNet/IP port
(PORT1) on Controller, and
connect a USB cable to the
peripheral (USB) port. As
shown in 5.2. Device
Configuration, connect
Personal computer and
Switching hub to Controller.
2
Start Sysmac Studio.
*If the User Account Control
Dialog Box is displayed at
start, make a selection to start
Sysmac Studio.
3
Sysmac Studio starts.
Click New Project.
USB cable
CPU Unit
End Cover
Power Supply Unit
LAN cable
Switching hub
Network
Module
Controller
Personal
computer
Switching hub power supply
