Accessories (continued)
7.4 Connector

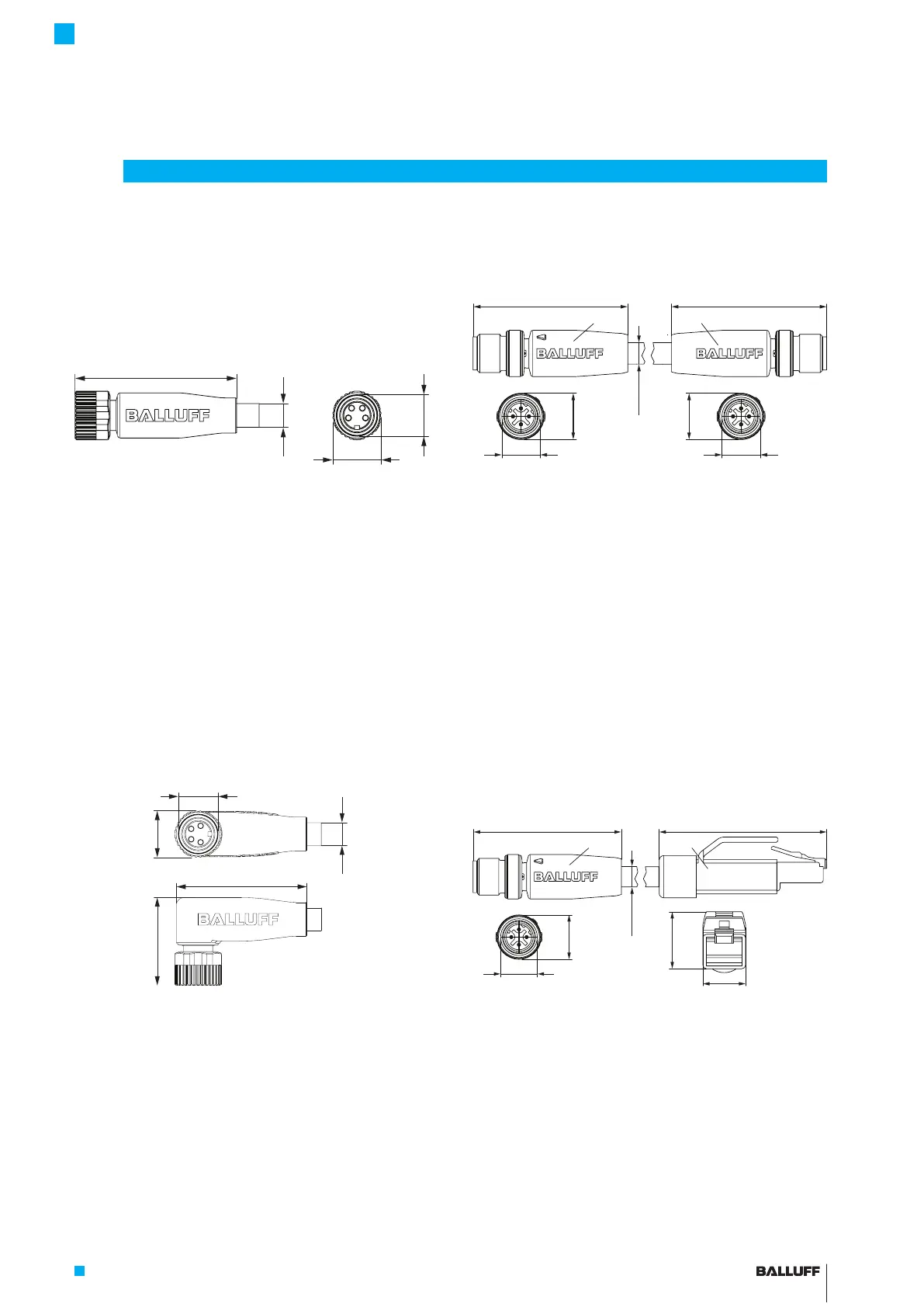

7.4.1 Power cable, preassembled with straight
M8 plug
– Straight or angled connector, molded, preassembled
– M8 socket, 4-pin
32.2
Ø max. 5
M8x1
Ø 9.7
Fig. 7-10: Connector - straight socket
Type Ordering
code
BCC M314-0000-10-014-PS0434-020
BCC M314-0000-10-014-PS0434-050
BCC M314-0000-10-014-PS0434-100
BCC02N5
BCC02N6
BCC02N7
Examples:
BCC M314-0000-10-014-PS0434-020 = cable length of
2m
BCC M314-0000-10-014-PS0434-050 = cable length of
5m
7.4.2 Power cable, preassembled with angled
M8 plug
Ø max. 5
Ø 9.718.2
M8x1
27
Fig. 7-11: Connector - angled socket
Type Ordering
code
BCC M324-0000-10-014-PS0434-020
BCC M324-0000-10-014-PS0434-050
BCC M324-0000-10-014-PS0434-100
BCC02NH
BCC02NJ
BCC02NK
Examples:
BCC M314-0000-10-014-PS0434-020 = cable length of
2m
BCC M314-0000-10-014-PS0434-050 = cable length of
5m
7.4.3 Data cable, preassembled with M12 plug
– Straight connector, molded, preassembled
– M12 plug (I), M12 plug (II), 4-pin
I
II
48.5 48.5
M12x1
Ø 14.5
M12x1
Ø 14.5
Ø max. 7
Fig. 7-12: Straight–straight connector
Type Ordering
code
BCC M414-M414-6D-331-PS54T2-020
BCC M414-M414-6D-331-PS54T2-050
BCC M414-M414-6D-331-PS54T2-100
BCC M414-M414-6D-331-PS54T2-200
BCC04K1
BCC04K2
BCC04K3
BCC04K4
Examples:
BCC M414-M414-6D-331-PS54T2-020 = cable length of
2m
BCC M414-M414-6D-331-PS54T2-050 = cable length of
5m
7.4.4 Data cable, preassembled with RJ45 plug
– Straight connector, molded, preassembled
– M12 plug (I), RJ45 plug (II), 4-pin
I
II
48.5 54.7
18.6
14
M12x1
Ø 14.5
Ø max. 7
Fig. 7-13: Straight–straight connector
Type Ordering
code
BCC M414-E834-8G-668-PS54T2-020
BCC M414-E834-8G-668-PS54T2-050
BCC M414-E834-8G-668-PS54T2-100
BCC M414-E834-8G-668-PS54T2-150
BCC M414-E834-8G-668-PS54T2-200
BCC04K7
BCC04K8
BCC04K9
BCC04ZJ
BCC04KA
Examples:
BCC M414-E834-8G-668-PS54T2-020 = cable length of
2m
BCC M414-E834-8G-668-PS54T2-050 = cable length of
5m
