7.4.5 Straight data plug, freely configurable
– Straight or angled connector, freely configurable
– M12 plug, 4-pin
~70
18 16 13
Ø 20
M12x1

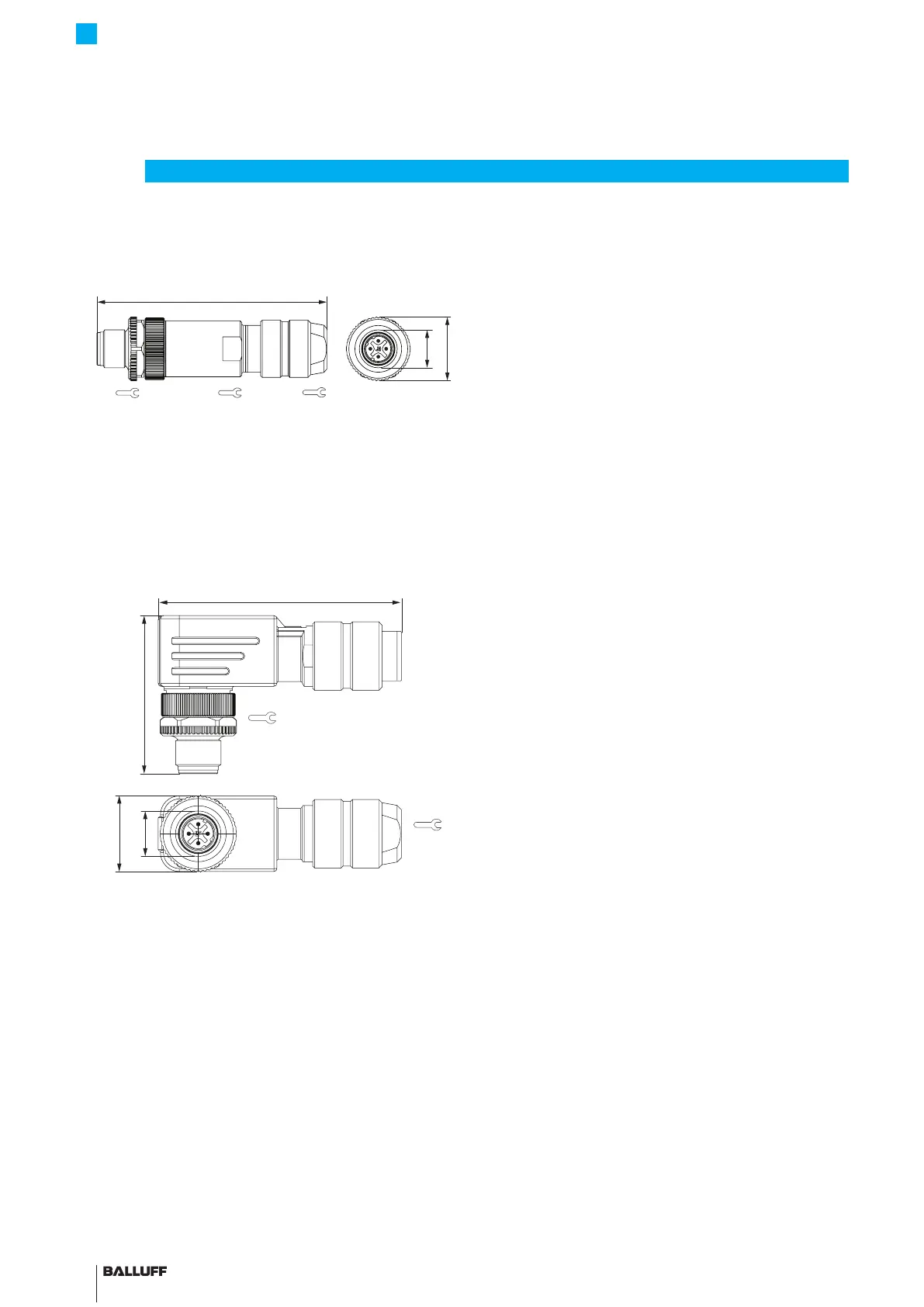

Fig. 7-14: Connector - straight plug
Type Ordering
code
BCC M474-0000-2D-000-51X475-000 BCC03WZ
7.4.6 Angled data plug, freely configurable
Ø 20
M12x1
~64
~42
18
18
Fig. 7-15: Connector - angled plug
Type Ordering
code
BCC M484-0000-2D-000-51X475-000 BCC03Y0
