Micropulse Linear Position Transducer
Absolute Quadrature Output
Rod Style & Profile Style Housings

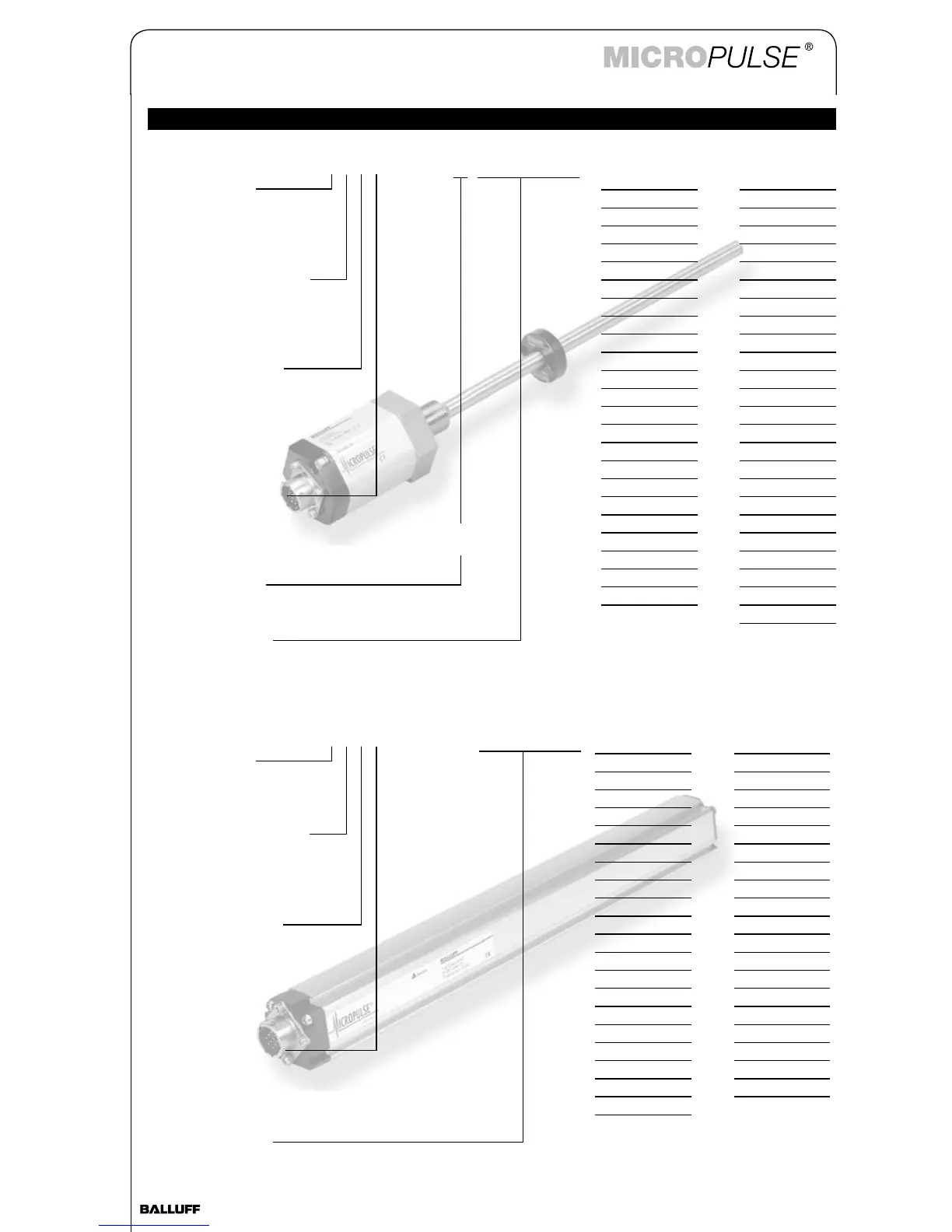

BTL5-Q_ _ _ _-Mxxxx-Z-S140/KA_ _
Ordering Information
Supply Voltage
5 = +10...30 V
xxxx = length in mm
(see chart at right)
Quadrature Frequency
0 = 833 kHz
1 = 416 kHz
2 = 208 kHz
6 = 10 kHz
System Resolution
0 = 1 µm
1 = 2 µm
2 = 5 µm
3 = 10 µm
5 = 50 µm
6 = 0.0001”
Mode/Update Rate
0 = Synchronous
1 = free-running, 1ms update (stroke ≤1250 mm only)
2 = free-running, 2ms update (stroke ≤2500 mm only)
4 = free-running, 4ms update (any stroke length)
Connection Type
S140 = 10 pin MS connector
KA = Integral cable (specify length in meters, e.g. "05" = 5 meters [standard])
Rod Style
BTL5-Q_ _ _ _-Mxxxx-P-S140/KA_ _
inches mm
2 0051
3 0077
3.5 0090
4 0102
5 0127
6 0152
7 0178
8 0203
9 0230
10 0254
11 0280
12 0305
13 0330
15 0381
16 0407
18 0457
20 0508
22 0560
24 0610
26 0661
28 0711
30 0762
inches mm
32 0813
36 0914
40 1016
42 1067
48 1220
50 1270
54 1372
60 1524
66 1676
69 1753
72 1829
78 1981
84 2134
89 2261
98 2490
108 2743
118 2997
126 3200
140 3556
144 3658
148 3759
152 3860
156 3962
Standard Stroke Lengths-Rod Style
(consult factory for additional lengths)
Profile Style
inches mm
2 0051
3 0077
4 0102
6 0152
7 0178
8 0203
9 0230
10 0254
11 0280
12 0305
13 0330
15 0381
16 0407
18 0457
20 0508
22 0560
24 0610
26 0661
28 0711
inches mm
30 0762
32 0813
36 0914
40 1016
42 1067
48 1220
50 1270
60 1524
70 1778
80 2032
90 2286
100 2540
110 2794
120 3048
130 3302
142 3606
148 3759
156 3962
Standard Stroke Lengths-Profile Style
(consult factory for additional lengths)
7 = 0.001”
8 = 0.0005"
7 = 0.001”
8 = 0.0005"
Supply Voltage
1 = +24 V
2 = ±15 V
xxxx = length in mm
(see chart at right)
Quadrature Frequency
0 = 833 kHz
1 = 416 kHz
2 = 208 kHz
6 = 10 kHz
System Resolution
0 = 1 µm
1 = 2 µm
2 = 5 µm
3 = 10 µm
5 = 50 µm
6 = 0.0001”
Mode/Update Rate
0 = Synchronous
1 = free-running, 1ms update (stroke ≤1250 mm only)
2 = free-running, 2ms update (stroke ≤2500 mm only)
4 = free-running, 4ms update (any stroke length)
Housing/Thread
Z = Rod Style 3/4-16 UNF Threads, 50.8 mm null point
B = Rod Style M18x1.5 Threads, 30 mm null point
Connection Type
S140 = 10 pin MS connector
KA = Integral cable (specify length in meters, e.g. "05" = 5 meters [standard])

Balluff MICROPULSE Series Specifications

General

Measurement Principle	Magnetostrictive
Output	Analog, Digital (SSI, Profibus)
Operating Voltage	10 VDC to 30 VDC
Protection Class	IP67
Temperature Range	-40°C to +85°C
Housing Material	Stainless steel or aluminum
Linearity	±0.02% F.S. (depending on model)
Electrical Connection	M12 connector
Resolution	Up to 1 μm (depending on model)
