BeoLink Converter NL/ML setup examples 25

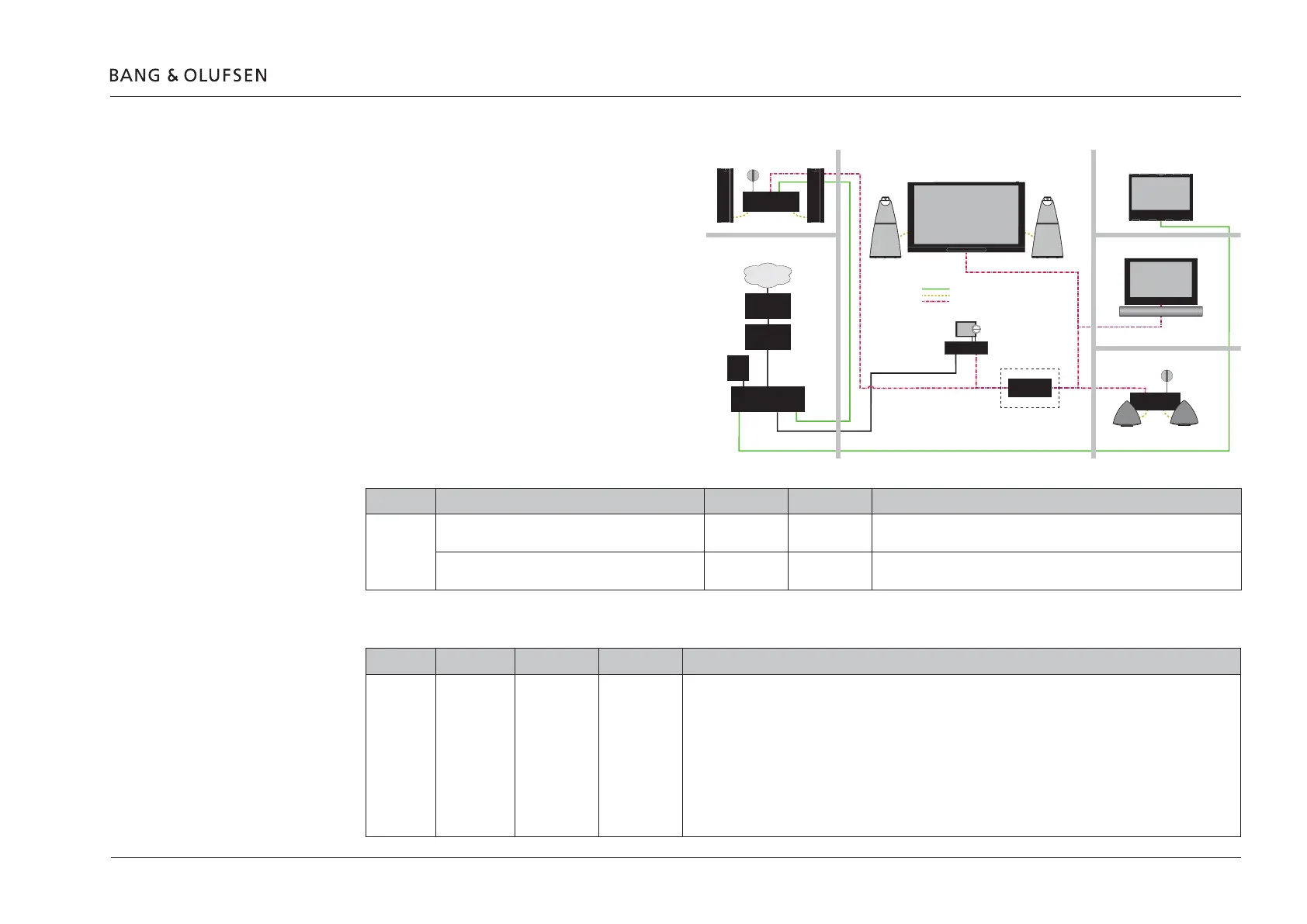

Example 5 (Network Link and Master Link setup)
With a Master Link product in the main room, you
get synchronized sound from audio sources in all link
rooms. The BeoLink Converter NL/ML has to be set
up as an audio slave in its menu. In the Bedroom you
will have free access to sound distribution from either
audio or video sources.
! The NL/ML Delay Box is optional. Mount an NL/ML
Delay Box for echo free audio source distribution.
Conguration > Settings
MasterLink
ML enabled: Checked (MasterLink enabled)
ML role: A Slave
Share speaker table
Question in Network Link TV Living room Other rooms Comments
Example 5 IS BeoLink Converter NL/ML IN SAME ROOM AS THIS
TELEVISION?
- NO
Living room Master TV (BV12) share speakers with Audio Master
(BeoMaster 5), because of BLC primary settings.
DO YOU WANT TO USE THE TV SPEAKERS AS THE
ONLY SPEAKERS FOR BeoLink Converter NL/ML?
- -
BeoLink Converter NL/ML connect to table
BLC Primary Secondary Comments
Example 5 BLC Library BLC Library Beoplay V1 To Power Link:
- Video sources from living room (BV12)
- Audio sources from living room (BS5)
- AUX (line in) from local product
To Network Link:
- Sound from video sources from living room (BV12)
- Audio sources from living room (BS5)
- AUX (line in) from local product
To Master Link
- None
BeoVision 12
Beosystem 3
Master Link
BS5
Power Link = Yellow
Master Link = Red
BeoMaster 5
NL/ML
Delay Box
BeoLink Active
BeoVision 7
Master Link
Bedroom
Kitchen
Living room
Technical room
Library
Network Link = Green
Office
Internet
ISP Router
Network Link
router
Switch
NAS
server
BeoPlay V1
Network Link
Optional
IN
OUT
BeoLink Converter
NL/ML
