Bang & Olufsen BeoLink NL/ML User Manual

Connector socket panel 4

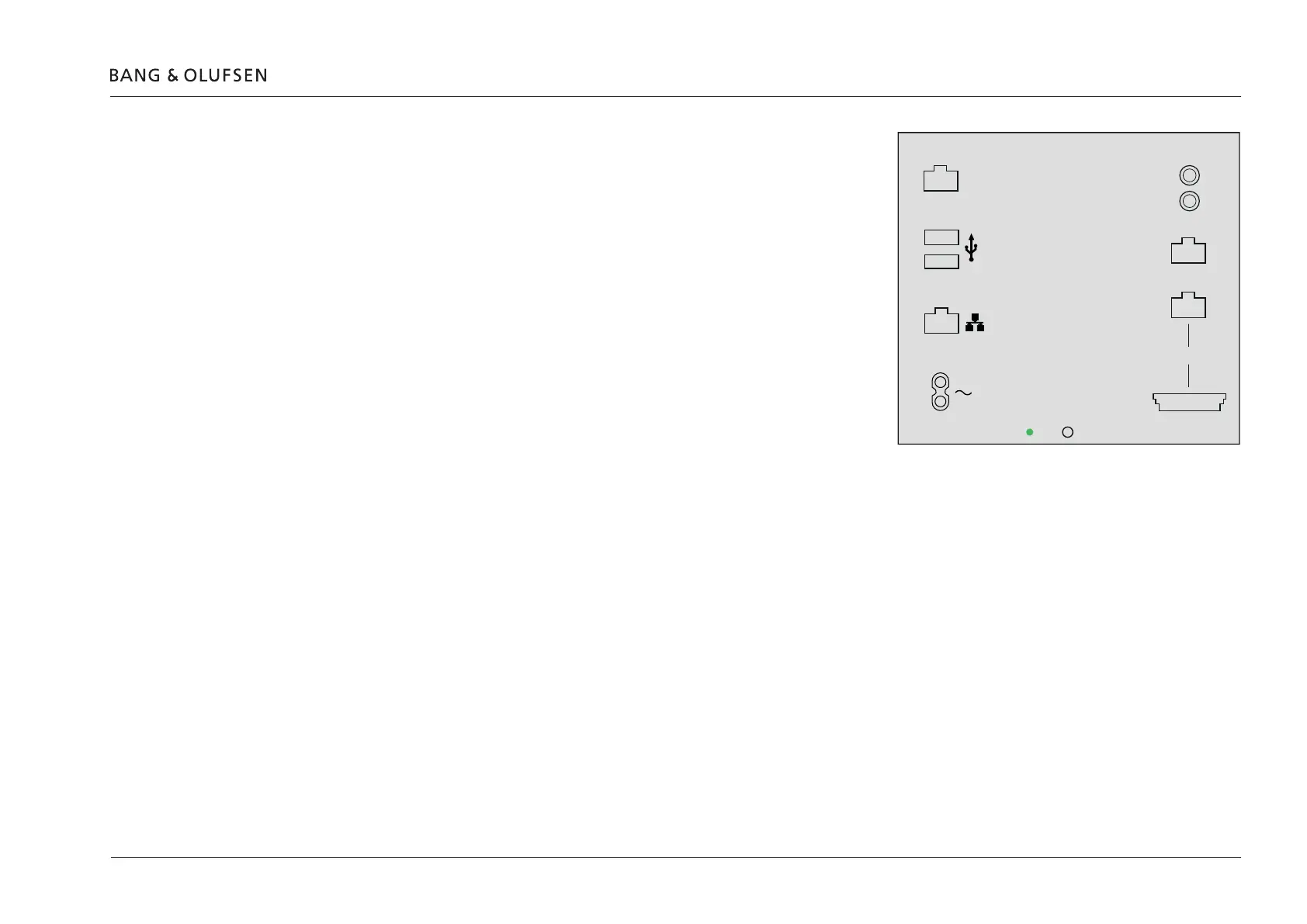

Connector socket panel
IR IN - RS232
The IR IN - RS232 socket is used to connect an IR Receiver to the
BeoLink Converter NL/ML.
USB
The USB sockets are for future use.
NETWORK LINK
The NETWORK LINK socket is for the connection to the Network Link router.
~
The mains socket is for the connection to the mains.
MASTER LINK
The MASTER LINK sockets (RJ45 and ML) are used to connect products connected
in a Master Link system. This makes it possible to control a compatible audio and
video system and to distribute sound throughout the house. The connections in
the RJ45 socket and the ML socket are identical.
The RJ45 socket is used if the Master Link cable is equipped with a RJ45 plug.
The ML socket is used if the Master Link cable is equipped with a Master Link plug.
POWER LINK
The POWER LINK socket is used to connect speakers to the BeoLink Converter NL/ML.
AUX IN L/R
The AUX IN LR socket is used to add a signal from another source. (The AUX IN is also named line in)
SETUP BUTTON
The SETUP BUTTON can be used during normal operation by pressing and holding the button.
LED
The LED indicator gives feedback about the status of the system and about functions chosen with the SETUP BUTTON.
LED SETUP BUTTON
NETWORK LINK
IR IN - RS232
POWER LINK
MASTER LINK
RJ45
ML
5V=
USB
0.5A
R
AUX IN
L
