Bang & Olufsen BeoLink NL/ML User Manual

BeoLink Converter NL/ML setup examples 28

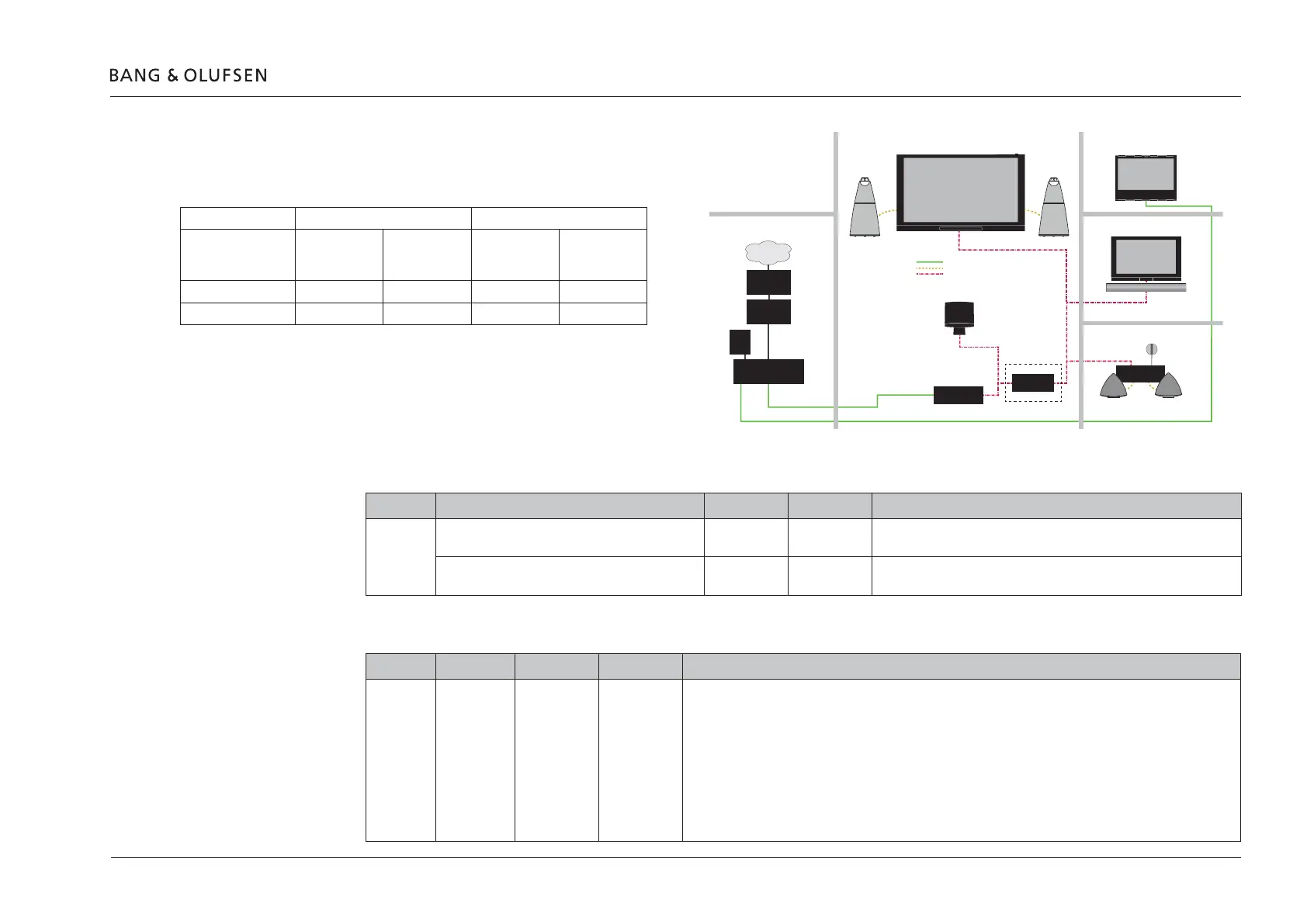

Example 8 (Network Link and Master Link setup)
! Be aware of that in some situations there will be
echo. See the table below.
Network Link Master Link
Sources
Audio Video Audio Video
N.RADIO,
N.MUSIC
All video
sources
CD, Radio,
A. Mem, etc.
All video
sources
With Delay box ECHO NO ECHO NO ECHO ECHO
Without Delay box NO ECHO NO ECHO ECHO ECHO
Conguration > Settings
MasterLink
ML enabled: Checked (MasterLink enabled)
ML role: Source Center
! The Source Center role can only be used if no BeoMaster 5 is installed on Master Link as Audio Master or Source Center (AudioMaster = No).
Share speaker table
Question in Network Link TV Living room Other rooms Comments
Example 8 IS BeoLink Converter NL/ML IN SAME ROOM AS THIS
TELEVISION?
- NO
Living room Master TV (BV12) share speakers with Audio Master (BeoSound
4), because of BLC primary settings.
DO YOU WANT TO USE THE TV SPEAKERS AS THE
ONLY SPEAKERS FOR BeoLink Converter NL/ML?
- -
BeoLink Converter NL/ML connect to table
BLC Primary Secondary Comments
Example 8 BLC Living
room
BLC Living
room
BeoPlay V1 To Power Link:
- None
To Network Link:
- Sound from video sources from living room (BV12)
- Audio sources from living room (BS4)
- AUX (line in) from local product
To Master Link
- Sound from video and audio (Media, Radio) sources from bedroom (BeoPlay V1)
! Media and Radio from BeoPlay V1 can be mapped to N.MUSIC and N.RADIO on Master Link.
BeoVision 12
Master Link
BS4
Power Link = Yellow
Master Link = Red
BeoMaster 5
ML Gateway
NL/ML Delay Box
BeoLink Converter
NL/ML
BeoLink Active
BeoVision 7
Master Link
Bedroom
Kitchen
Living room
Technical room
Library
Network Link = Green
Office
Internet
ISP Router
Network Link
router
Switch
NAS
server
BeoPlay V1
Network Link
Optional
IN
OUT
