Q5X with Dual Discrete Outputs and IO-Link Quick Start Guide
July 25, 2023 page3

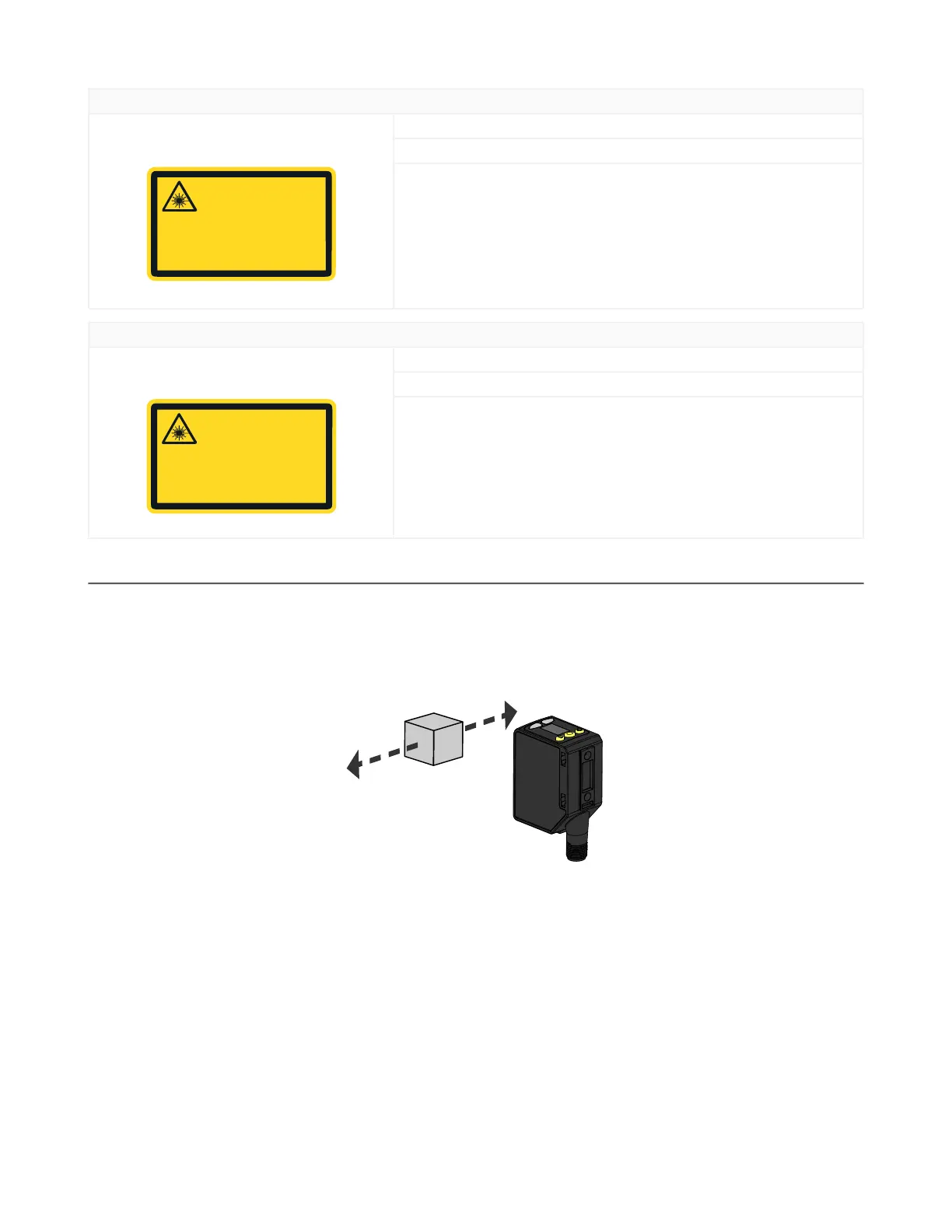

Class2RedLasermodelswithmaximumrangeof2000mm:ReferenceIEC608251:2007
FDA (CDRH) warning label (Class
2)
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
IEC 60825-1:2007. Wavelength
640-670nm; 1.0mW max. Complies with
21 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice
No. 50, dated June 24, 2007.
Output:<1.0mW
Laser wavelength:640to670nm
Pulse Duration:20µsto2ms
Class2RedLasermodelswithmaximumrange>2000mm:ReferenceIEC608251:2014
FDA (CDRH) warning label (Class
2)
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
IEC 60825-1:2014. Wavelength
640-670nm; 1.0mW max. Complies with
21 CFR 1040.10 and 1040.11 except for
conformance with IEC 60825-1: 2014
as described in Laser Notice
No. 56, dated May 8, 2019.
Output:<1.0mW
Laser wavelength:640to670nm
Pulse Duration for <5 m Models:20µsto2ms
PulseDurationfor≥5mModels:3µs
Installation
Sensor Orientation for the Triangulation Models
Optimizedetectionreliabilityandminimumobjectseparationperformancewithcorrectsensortotargetorientation.
Toensurereliabledetection,orientthesensorasshowninrelationtothetargettobedetected.
OptimalOrientationofTargettoSensor
See the following figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose problems for
sensingsometargets.TheQ5Xcanbeusedinthelesspreferredorientationandatsteepanglesofincidenceandstillprovidereliabledetec
tionperformanceduetoitshighexcessgain.Fortheminimumobjectseparationdistancerequiredforeachcase,referto"Q5XDualDis
crete with IO-Link Performance Curves" on page 14.
© Banner Engineering Corp.
