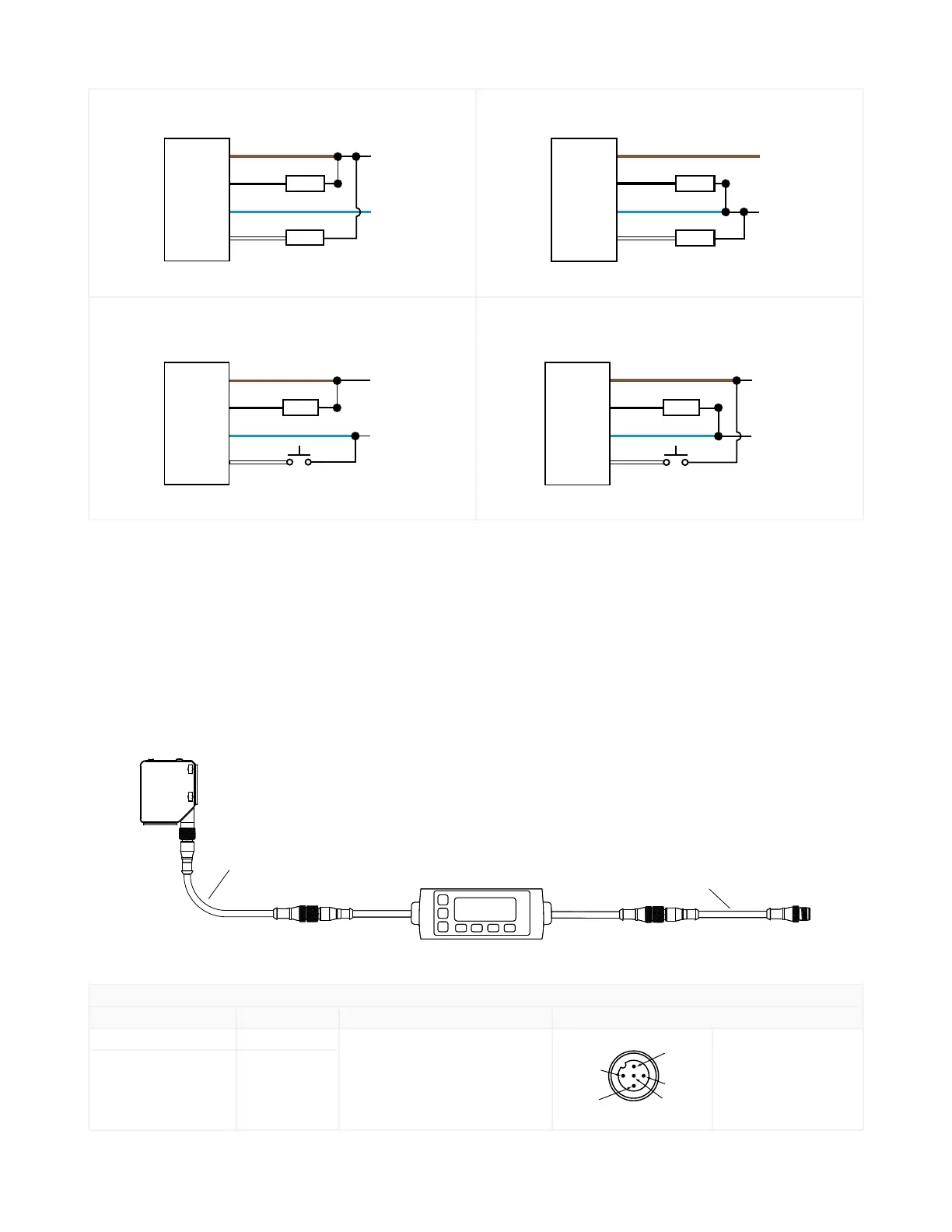

Channel 1 = NPN Output, Channel 2 = NPN Output
bk (4)
bn (1)
bu (3)
wh (2)
10-30 V DC
CH1
CH2
+
–
Load
Load
Channel 1 = PNP Output, Channel 2 = PNP Output
bk (4)
bn (1)
bu (3)
wh (2)
10–30VDC
CH1
CH2
+
–
Load
Load
Channel1=NPNOutput,Channel2=NPNRe
mote Input
bk (4)
bn (1)
bu (3)
wh (2)
10–30VDC
CH1
CH2
+
–
Load
Remote
Input
Channel1=PNPOutput,Channel2=PNPRe
mote Input
bk (4)
bn (1)
bu (3)
wh (2)
10-30 V DC
CH1
CH2
+
–
Load
Remote Input
CleaningandMaintenance
Cleanthesensorwhensoiledandusewithcare.
Handle the sensor with care during installation and operation. Sensor windows soiled by fingerprints, dust, water, oil, etc. may create stray
light that may degrade the peak performance of the sensor. Blow the window clear using filtered, compressed air, then clean as necessary
using only water and a lint-free cloth.
ConnectingtoRSD1
ThefollowingdiagramdepictstheconnectionoftheQ5XtotheoptionalRSD1accessory.
Q5X to RSD1
MQDC-4501SS
Double Ended Sensor Pin 2 to Pin 5
MQDC-4506SS
MQDEC3-503SS
Double Ended Shielded
MQDEC3-506SS
MQDEC3-515SS
MQDEC3-530SS
MQDEC2-506
Flying Lead Shielded
MQDEC2-515
MQDEC2-530
RSD1
Q5X
Use these cordsets to connect the RSD1 to the Q5X sensor.
4PinFemaleand5PinMaleThreadedM12Cordset—DoubleEnded
Model Length"L1" Style Pinout
MQDC-4501SS 0.30m(0.98ft)
FemaleStraight/MaleStraight
Male
1
4
5
3
2

1=Brown
2=NotUsed
3=Blue
4=Black
5=White
MQDC-4506SS 1.83m(6.00ft)
Continued on page 6
