R5900103 /00 C-10, C-590
behaviour. In general a SNMP management suite (running on a server) communicates with an SNMP agent
(running on the device). The SNMP agent collects and exposes device information in the form of variables
according a MIB (Management Information Base). SNMP management suites will be able to approach
ClickShare devices via SNMP protocol for requesting device information.
SNMPv3 is supported.
How to enable
1. Log in to the Configurator.
2. Click Wi-Fi & Network → Services.
3. Scroll to SNMP.

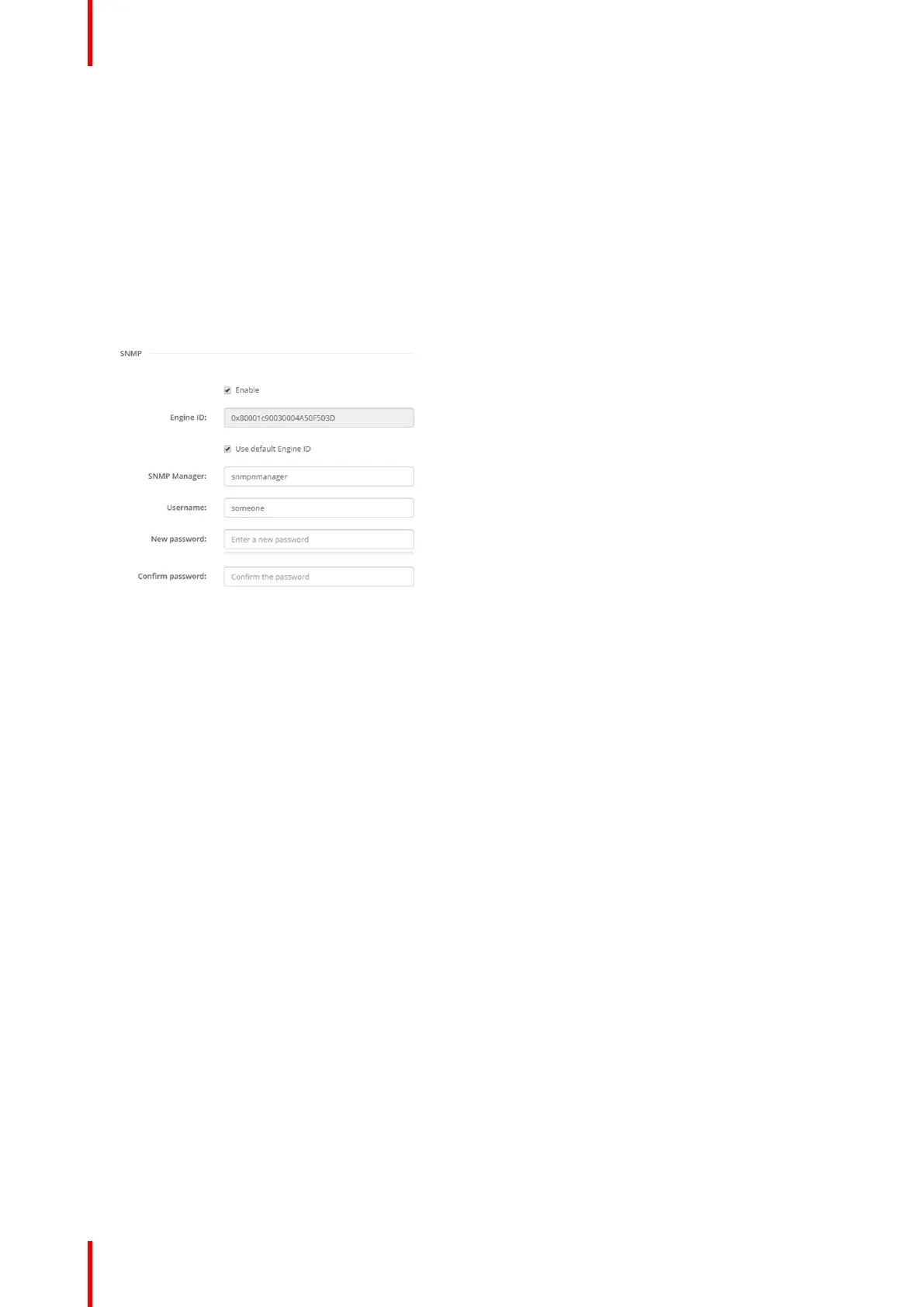

Image 6–29 Service, SNMP
4. Check the check box in front of Enable.
The configuration fields become available.
How to configure
1. When using the default Engine ID, make sure the check box before Use default Engine ID is checked.
The default engine ID is a combination of the Barco Enterprise Number with the MAC-address (eth0).
2. Fill out the SNMP Manager address.
That is the host address which will receive the TRAP events/messages.
Possible traps can be:
• Alarm CPU temperature trap which indicates that CPU temperature exceeds the threshold.
• Alarm Case Fan Speed trap which indicates the case fan is spinning too slow.
• Alarm Process Not Running trap which indicates one of the monitored processes is not running.
3. Enter the Username.
4. Enter a new password and confirm that password.
6.20 Security, security level
About security levels
For the use of the ClickShare system, a security level can be set. By default, level 1 is activated. A security
level is a predefined set of settings which are automatically set when a level is selected.
Level 1 : offers support for normal day-to-day operations in any organization.
Level 1 contains the standard security options and encryption of audio and video data.
The standard security options are:
• PIN code activation for mobile apps and Buttons,
C-10, C-5 Configurator
