Barco DP2K-19B

69R5905753 /17 DPxK-19B/23B/P

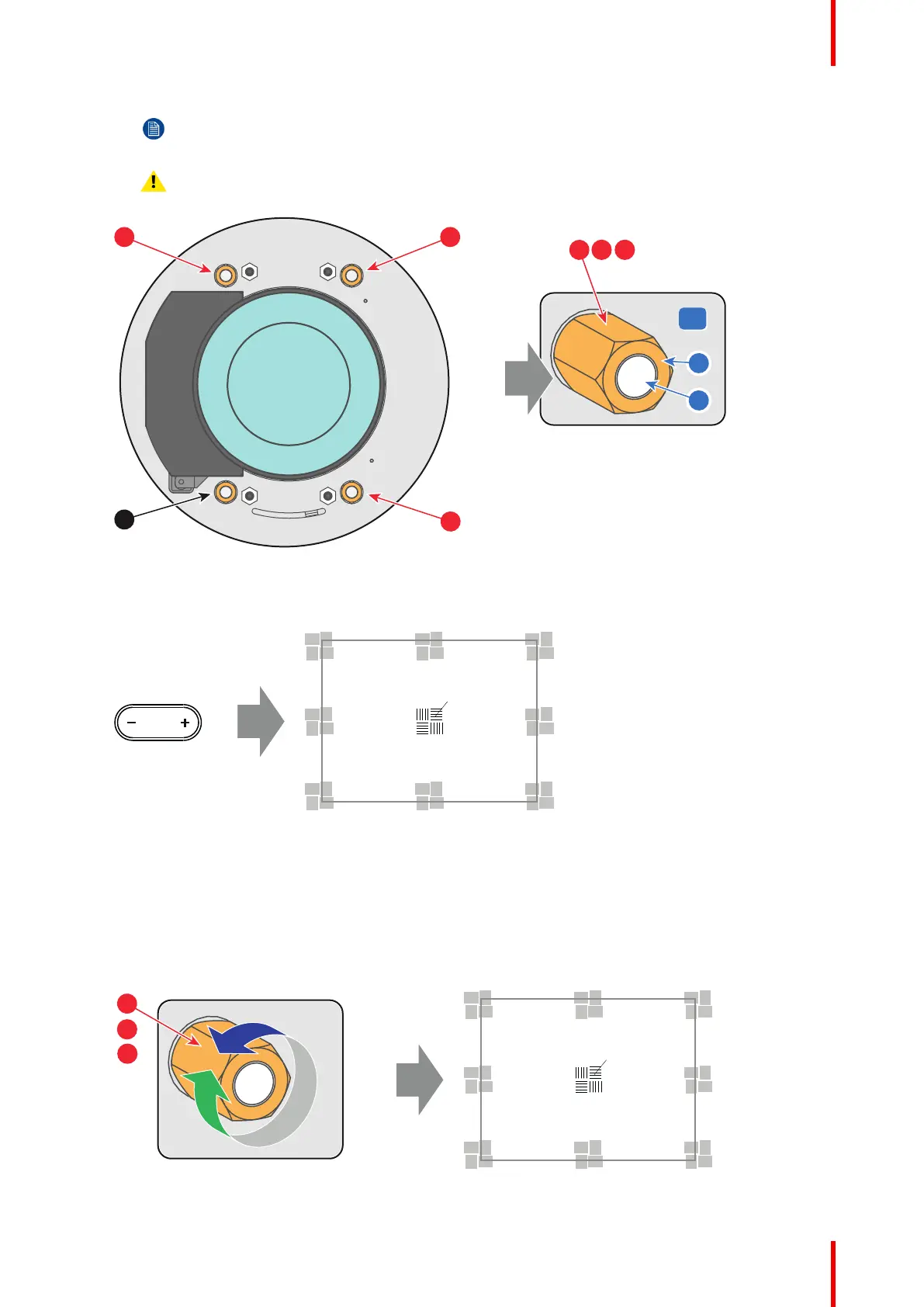

Note: This is the nominal position of the Lens Holder.
Caution: Do not remove any of the Scheimpflug adjustment nuts completely from the threaded
rod. Otherwise the lens holder front plate with lens will fall off.
1
4
2
5
6
3 x
3 x
1
2 3
3
Image 5–17
4. Zoom the lens for maximum image on the screen (WIDE) and focus the center of the projected image
using the motorized focus control (Local Keypad).
F
FOCUS
Image 5–18
5. Is it possible to focus the center of the projected image using the motorized focus control (Local Keypad) ?
Ensure that the lens is zoomed for maximum image on the screen (WIDE).
► If yes, nominal position is good for sharp focus in the middle of the projected image. Proceed with step 6.
► If no, obtain the best possible focus in the center of the projected image using the motorized focus
control and then turn the three Scheimpflug adjustment nuts, reference 1, 2 and 3 Image 5–19, equally in
or out until the center of the projected image is sharp. Attention: Keep in mind the turning direction of the
Scheimpflug adjustment nuts for further adjustment instructions in this procedure.
F
1
2
3
Image 5–19
Lenses & lens holder
