Barco MXRT-1450 - Installation Procedure

2. Display Controller installation
Barco Model Compatible P CIe Slot
Barco MXRT-7400 x16
Barco MXRT-7500 x16
Barco MXRT-7600 x16
Which PCIe slot to use
The table above lists the various Display Controller model(s) available for your Barco Display System and
the recommended PCIe slot to use for optimum performance. The figure below shows the different types
of PCIe slots that can be used.

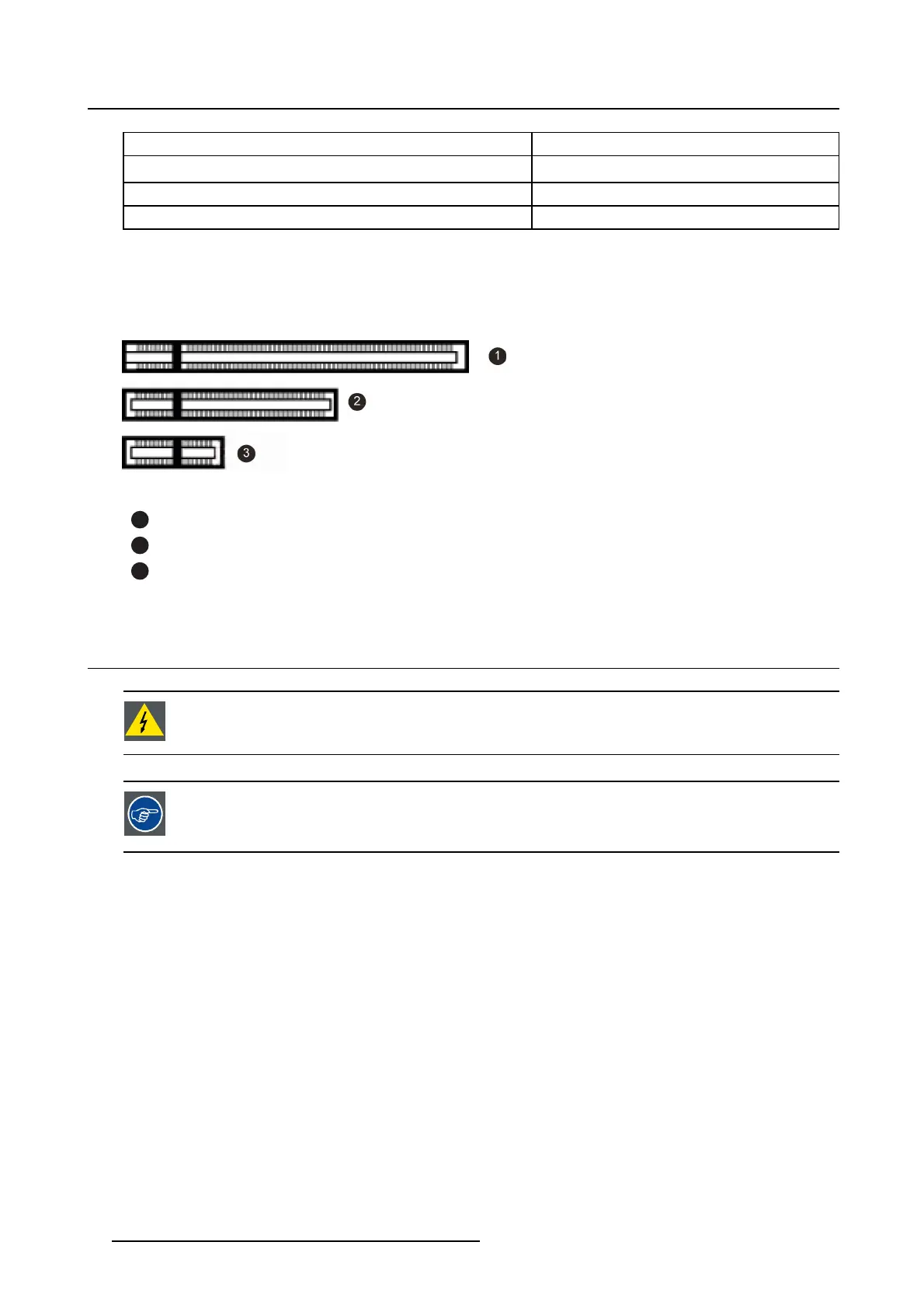

Image 2-1
Examples of PCIe slots
1
x16 slot
2
x8 slot
3
x1 slot
2.3 In stallation procedure
WARNING: Wear a grounded, protective ESD strap when handling or during installation
of the Di splay Controller. Electros tatic charges can damage the Dis play Controller.
If you are using a motherboard containing an on-board graphics solution and do not
intend to use it as part of a multiple-display setup, disable it either in the computer’s
System Set-up utility (BIOS) or the Windows device manager.
How to install
The following instructions will take you step by step through the installation of the Barco Display Con-
troller(s) for your Barco Display System.
1. If you are not going to use your old Display Controller, uninstall its drivers and software.
2. Turn off the computer, display(s), and other peripheral devices.
3. Unplug the computer’s power cord and disconnect all cables from the back of your computer.
Warning:Wait approximately 20 seconds after unplugging the power cord before disconnecting a pe-
ripheral or removing a component from the motherboard to avoid possible damage to the
motherboard.
4. Remove the computer cover. If necessary, consult your computer’s manual for instructions.
5. If necessary, unscrew or unfasten and remove any existing display controller(s) from your computer.
6. Locate the appropriate slot and, if necessary, remove the metal back-plate cover(s).
7. Align the Barco Display Controller(s) for your Barco Display System with the slot(s) and press it(them)
in firmly until the card(s) is(are) fully se
ated.
