2. Display Controller installation
8. Connect the power cable to the 6-pin power connection on the Display Controller. Make sure the cables
are not interfering with anything inside the computer (for example, a cooling fan).
Tip: This step only applies to the MXRT-7400, MXRT-7500 & MXRT-7600.

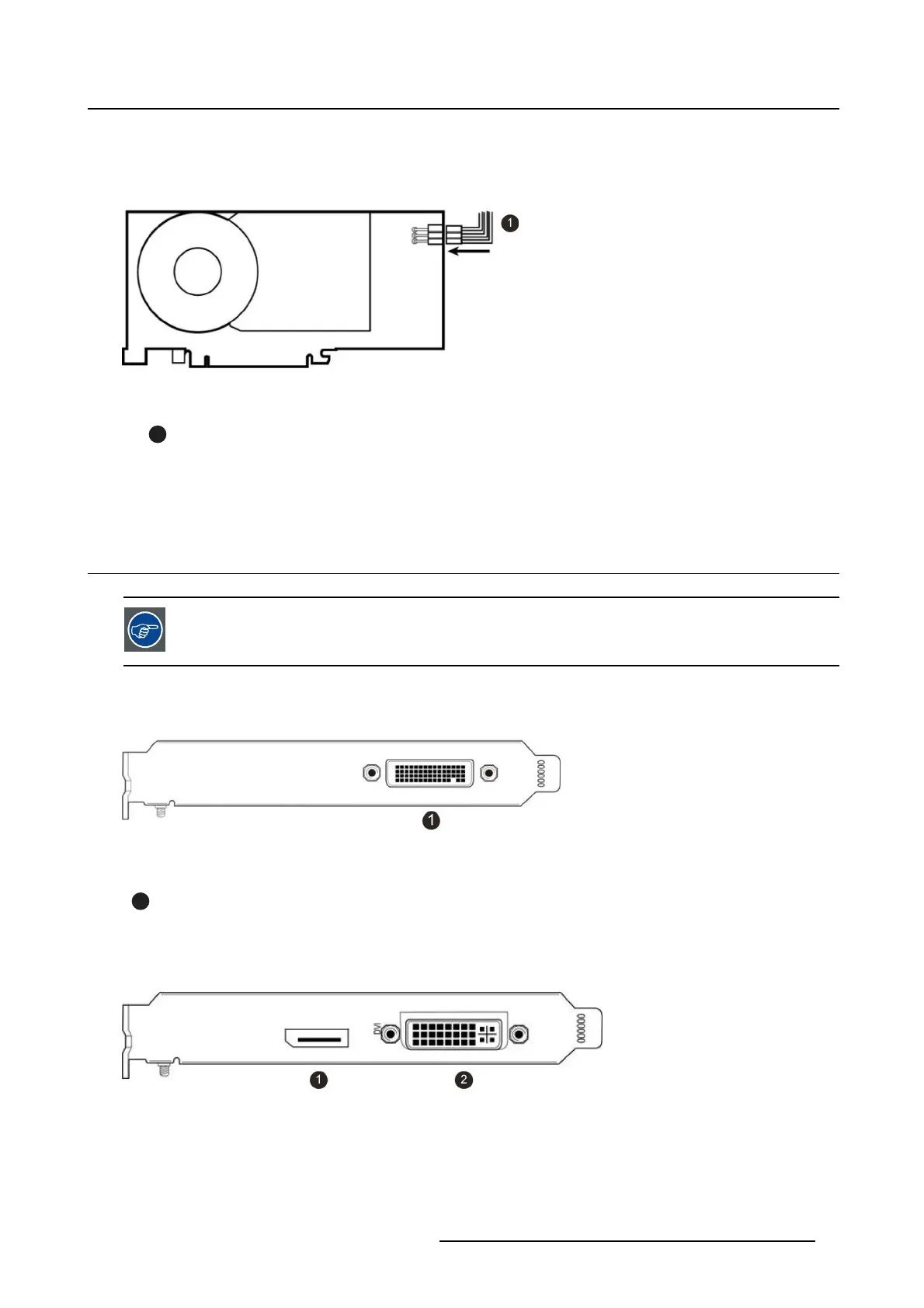

Image 2-2
Power connection for the MXRT-7400, MXRT-7500 & M XRT-7600 controllers
1
6-pin graphics controller power cable
9. Screw in or firmly fasten the Display Controller. Replace and secure the computer cover.
2.4 Connecting your Barco Displays
For a detailed description of the display installation and signal connection, please refer
to the Display User Guide.
IO-Panel for the Barco MXRT-1450 & MXRT-1451
Image 2-3
MXRT-1450 & MXRT-1451
1
DMS-59 connector provides DVI-I / Head 1 & Head 2 output connections through included the
Y-adapter cable.
IO-Panel for the Barco MXRT-2400 & MXRT-2500
Image 2-4
MXRT-2400 & MXRT-2500
K5905271 DISPLAY CONTROLLER 27/02/2017 7
