Connector pin assignments
System manual Nio 5MP 99
Connector pin assignments

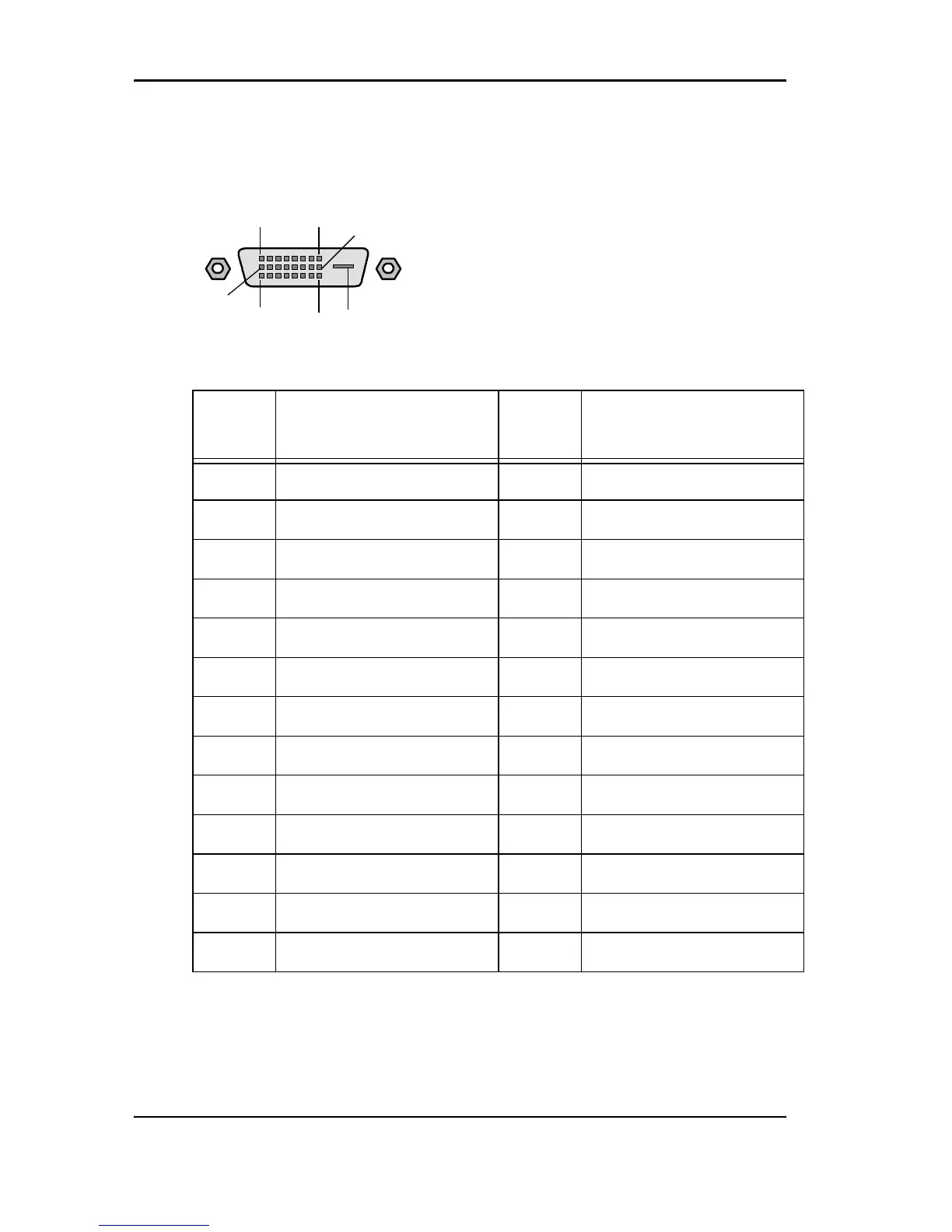

DVI connector:
Pin
no.
Signal
Pin
no.
Signal
1TMDS DATA 2- 14+5V POWER
2TMDS DATA 2+ 15GND
3 GND 16 HOT PLUG DETECT
4 TMDS DATA 4- 17 TMDS DATA 0-
5 TMDS DATA 4+ 18 TMDS DATA 0+
6DDC CLOCK 19GND
7 DDC DATA 20 TMDS DATA 5-
8NC 21TMDS DATA 5+
9TMDS DATA 1- 22GND
10 TMDS DATA 1+ 23 TMDS CLOCK-
11 GND 24 TMDS CLOCK+
12 TMDS DATA 3- 25 GND
13 TMDS DATA 3+
18
17
24 25
9
16
