Bard I30A1DA - Figure 3 Center of Gravity

Manual 2100-597G
Page 12 of 68
UNIT TESTED
FRONT OF UNIT
DOOR TO CENTER
LEFT SIDE
TO CENTER
FLOOR TO CENTER
CRV & ERV
FLOOR TO CENTER
NO VENT
"X" Dimension "Y" Dimension "Z" Dimension "Z" Dimension
I30A1DA, DB 13-3/4" 24" 43½" 47"
I30A1DC 13-3/4" 24¼" 43½" 47"
I36A1DA, DB 13-3/4" 24" 43½" 47"
I36A1DC 13-3/4" 24¼" 43½" 47"
I42A1DA, DB 13-3/4" 24" 43½" 47"
I42A1DC 13-3/4" 24¼" 43½" 47"
I48A1DA, DB 13-3/4" 24" 43½" 47"
I48A1DC 13-3/4" 24¼" 43½" 47"
I60A1D, DB 13-3/4" 24" 43½" 47"
I60A1DC 13-3/4" 24¼" 43½" 47"
"Y"
"X"
"Z"
MIS-3269

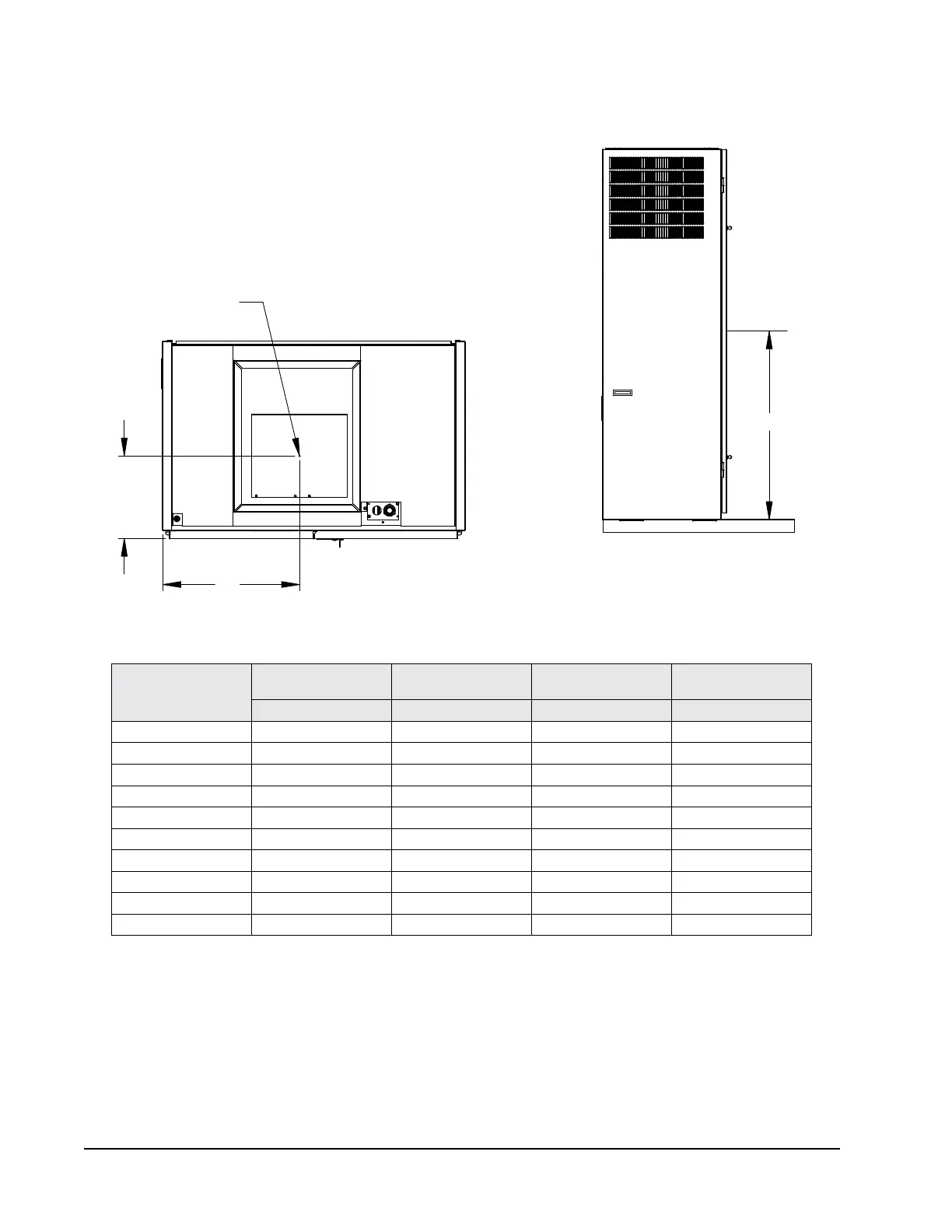

CENTER OF GRAVITY
FIGURE 3
Center of Gravity
