Bard I30A1DA - Figure 14 A;C W;Crv, Without CO 2 Control (M Vent)

Manual 2100-597G
Page 25 of 68

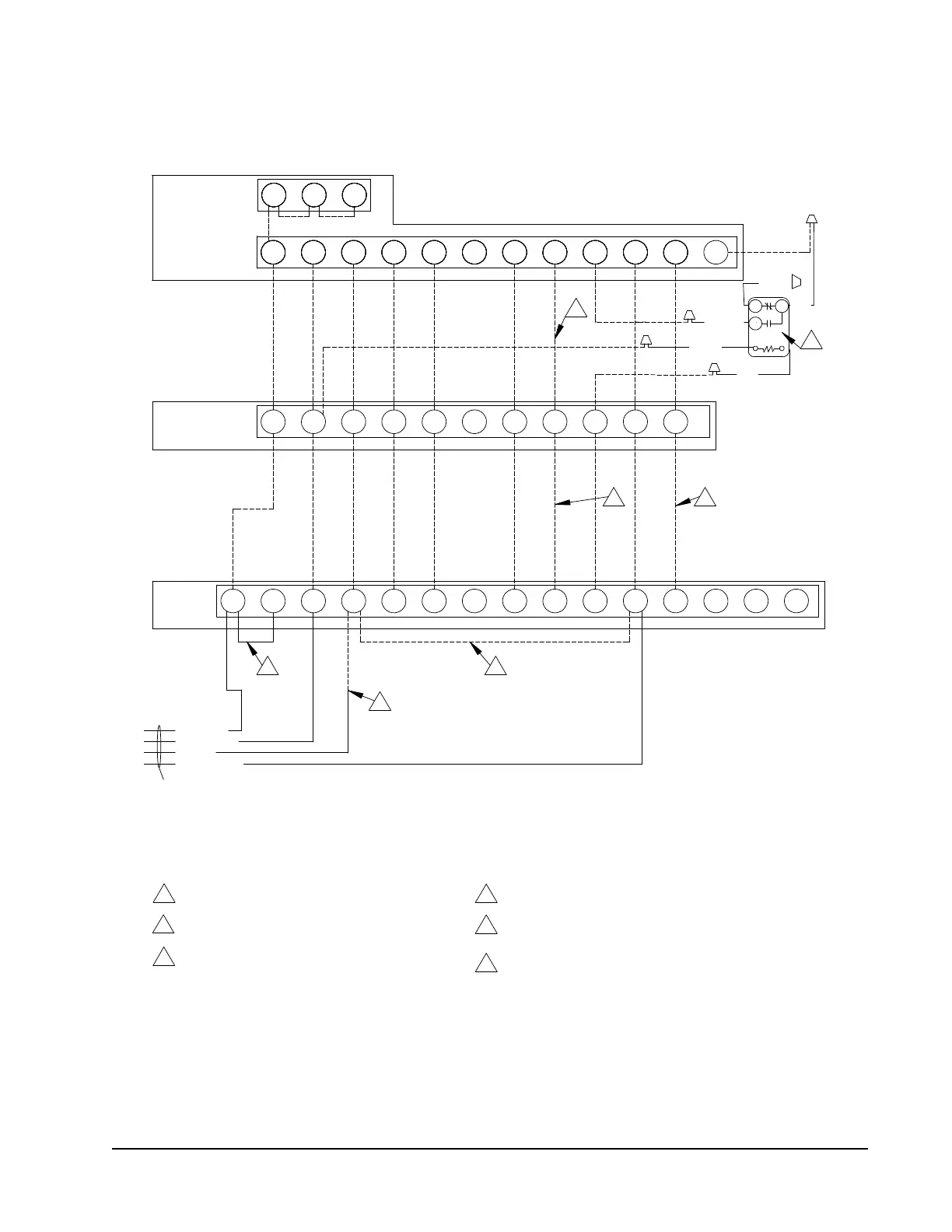

FIGURE 14
Air Conditioner with CRV, without CO
2
Control ("M" Vent Code)
6 4W3 A DL
B/W1
Y2Y1RT GC W2
Low
Voltage
Term. Strip
R 3
Thermostat
W1/E
A
YO/D
LO/BY2Y1R GC W2
Bard #8403-060
Blue
Yellow
Orange
MIS-3258 A
1
Additional wire required for dehumidification models.
2
Not needed below 15KW.
3
to N.C fire alarm circuit if emergency shutdown required.
Factory installed jumper. Remove jumper and connect
4
Completestat
Connect to "G" terminal when thermostat has "Occupancy Signal".
5
4
5
CRV Wiring Harness
1
2
2
BROWN/WHITE
ORANGE
BLACK/WHITE
RED/WHITE
GND
SC
SC
SC
Model #CS9BE-THO
W2
COM
G
24V
Y1 Y2 O/B L DA
W1/E
GND
SC
SC
SC
Model #CS9B-THO or
Completestat
Model #CS9BE-THO
W2
COM
G
24V
Y1 Y2 O/B L DA
W1/E
GND
SC
SC
SC
Model #CS9B-THO or
Completestat
Model #CS9BE-THO
W2
COM
G
24V
Y1 Y2 O/B L DA
W1/E
GND
SC
SC
SC
Model #CS9B-THO or
Completestat
Model #CS9BE-THO
W2
COM
G
24V
Y1 Y2 O/B L DA
W1/E
SC
SC
SC
Model #CS9B-THO or
Completestat
Model #CS9BE-THO
W2
COM
G
24V
Y1 Y2 O/B L DA
W1/E
3
Red
Model #CS9B-THO or
6
6
Relay Provided with Completestat
White
Install a jumper between "G" and "A" only when thermostat
without "Occupancy Signal" is used.
