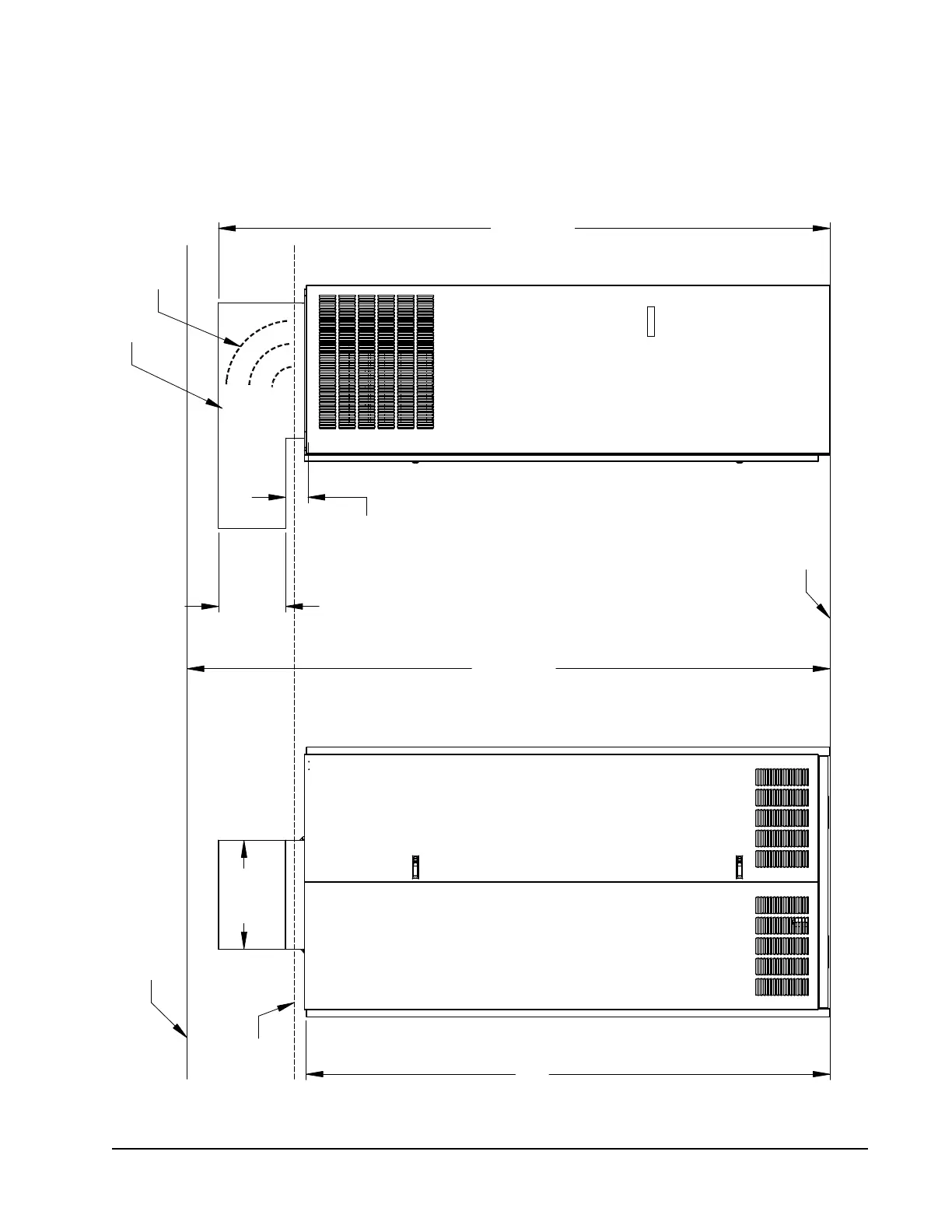

Bard I30A1DA - Figure 7 A Ducted Application

Manual 2100-597G
Page 15 of 68
9'-2"
MINIMUM
REQUIRED
INSTALLATION
HEIGHT
CLEARANCE RECOMMENDED TO
BOTTOM OF ROOF
9'-7" MINIMUM OR FIXED CEILING
FLOOR
OR FIXED CEILING BOTTOM OF ROOF
SUSPENDED CEILING
20"
MINIMUM
7'-9 3/4"
UNIT HEIGHT
FIELD SUPPLIED DUCT
TURNING VANES RECOMMENDED
MINIMUM
12"
4" MINIMUM FROM
TOP OF UNIT TO
DUCT BOTTOM
MIS-2958 B
FIGURE 7A
Ducted Application – Basic Unit
