Manual 2100-597G
Page 13 of 68
12" MIN.
FOR RIGHT
SIDE
ACCESS
12" MIN.
FOR LEFT
SIDE
ACCESS
12" MIN.
0" REQUIRED
12" RECOMENDED
0" REQUIRED
12" RECOMENDED
48" MIN.
31 3/8"
12" MIN.12" MIN.
48"
MIN. FOR
FILTER ACCESS
24" MIN. 24" MIN.
MIS-3273
RECOMMENDED SERVICE
WING WALL CONSTRUCTION TOP VIEW
CLOSET CONSTRUCTION TOP VIEW
LEFT CORNER CONSTRUCTION TOP VIEW
FILTERS
RIGHT CORNER CONSTRUCTION TOP VIEW
ACCESS DIMENSIONS
REMOVABLE
SIDES
1
1 ALL FILTER AND COMPONENT
ACCESS IS FROM THE FRONT.
COILS CAN BE CLEANED FROM
THE FRONT, BUT SIDES ARE
EASILY REMOVED FOR ENHANCED
ACCESS.
IMPORTANT
Unit can be located in corner
with 0" clearance as long as
other side is unobstructed

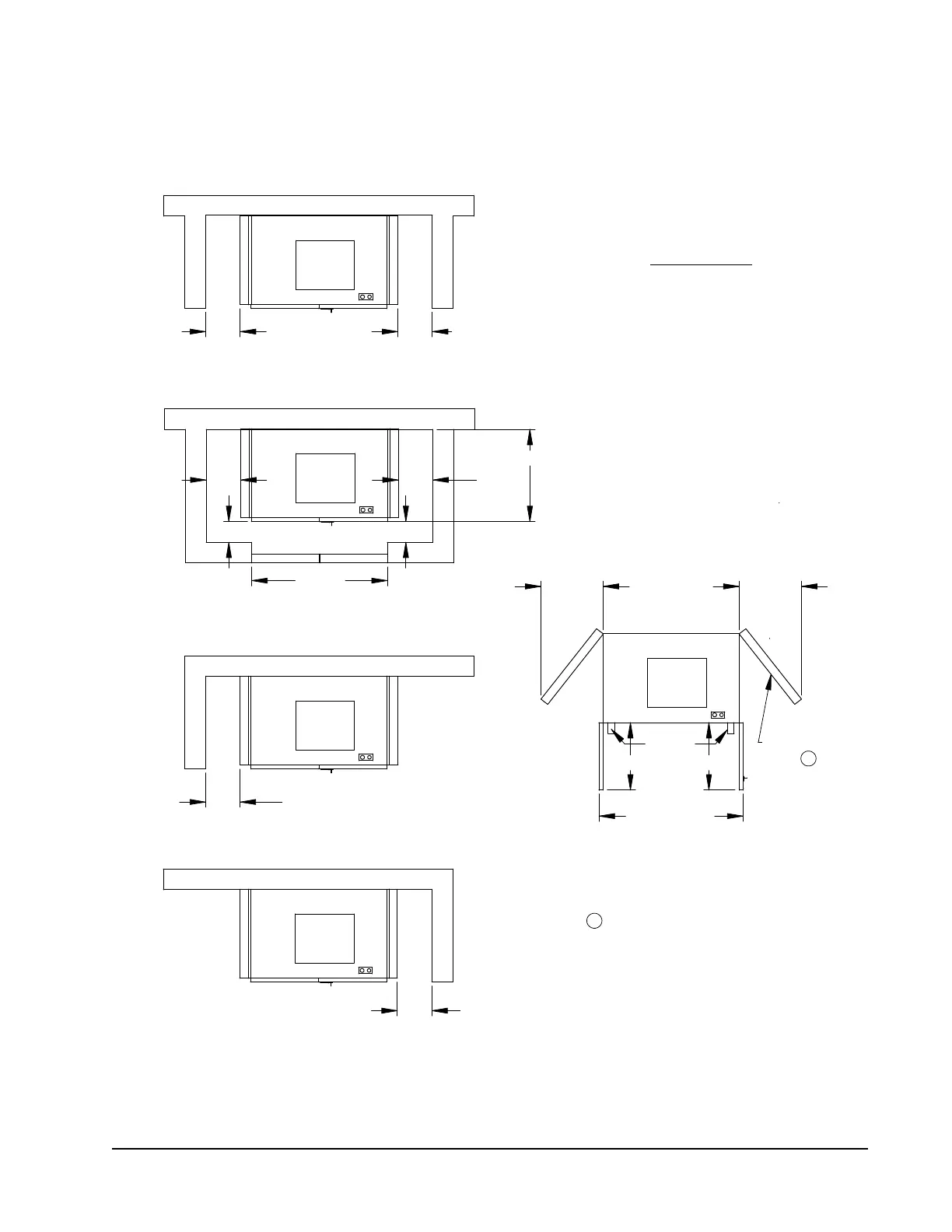

FIGURE 4
Required Clearances and Recommended Access
