Bard I30H1 - Figure 7 C 6 Riser Application

Manual 2100-549G
Page 16 of 59
10'-1" MINIMUM CLEARANCE RECOMMENDED TO BOTTOM OF ROOF OR FIXED CEILING
6" RISER
9'-8"
MINIMUM
REQUIRED
INSTALLATION
HEIGHT
BOTTOM OF ROOF
FLOOR
OR FIXED CEILING
SUSPENDED CEILING
MINIMUM
20"
7'-9 3/4"
UNIT HEIGHT
FIELD SUPPLIED DUCT
MIS-2988 B
TURNING VANES RECOMMENDED
12"
MINIMUM
4" MINIMUM FROM
TOP OF UNIT TO
DUCT BOTTOM

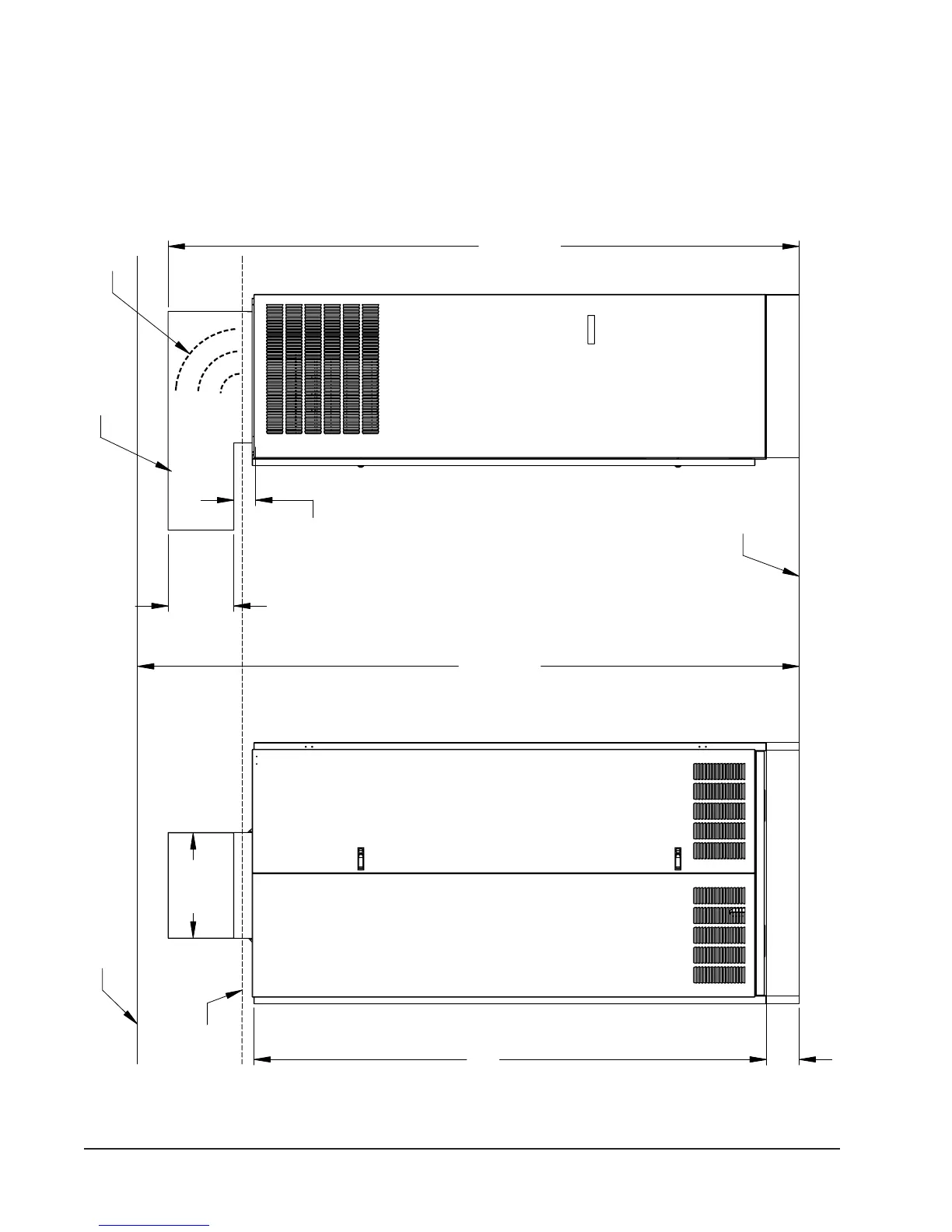

FIGURE 7C
6" RISER APPLICATION
