2.4.8. Relays
The relays (optional) can be configured in the software (see section 4.4.7). For an accurate electric
scheme, look Figure 2.4.8.
a)
b)

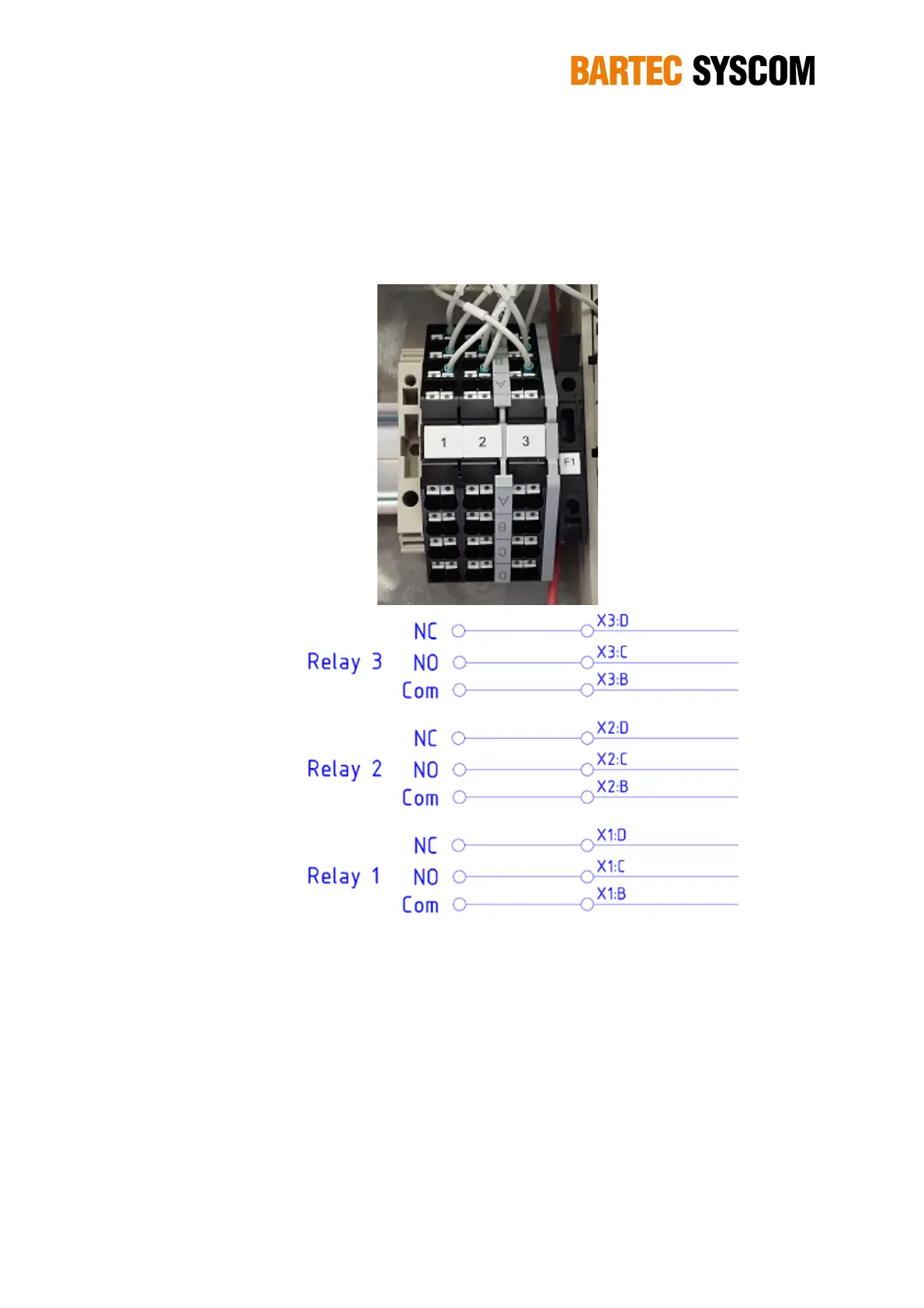

Figure 2.4.8. Terminal for relays (a) and electric scheme (b).
2.4.9. AC/DC converter
In Figure 2.4.9 it is possible to see the hardware structure and terminals related to the AC/DC
converter. If an external fuse is necessary or utilized, minimum requirements need to be considered
to avoid nuisance tripping of the circuit breaker. A minimum value of 10A B- or 6A C-Characteristic
breaker should be used.
